Axis P3905-R Mk III 2MP Dome IP Camera - 02671-001

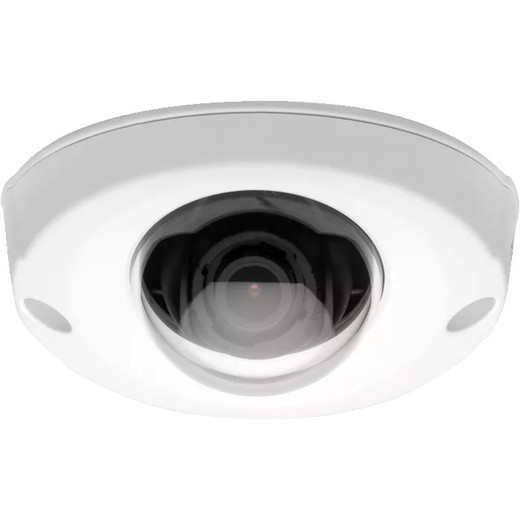

Axis 02671-001 P3905-R Mk III 2MP Dome IP Camera

Overview

The Axis 02671-001 is a compact, fixed-dome surveillance camera engineered specifically for onboard transportation applications — trains, trams, and other rail vehicles — where shock, vibration, and temperature extremes are baseline conditions. Built on the Axis IP camera platform, this 2MP (1920×1080) unit delivers Full HD resolution in a rugged package rated for both IP66 dust/moisture protection and IP67 submersion, with IK10 impact resistance to absorb the punishment of railway operations. The M12 circular connector replaces traditional RJ-45 plugs, offering superior vibration tolerance and environmental sealing — a critical difference in mobile deployments where connector reliability directly impacts uptime.

Axis includes two specialized light-handling technologies that matter on moving vehicles. Forensic WDR (Wide Dynamic Range) balances detail in scenes where sunlit windows and dark cabin interiors coexist — a recurring challenge on passenger cars. Lightfinder captures full-color video in extremely low-light conditions (down to 0.01 lux with gain), preserving detail without resorting to grayscale thermal imaging. The Traffic Light mode is purpose-built: it detects and accurately captures the color of traffic signals, even under challenging backlit or low-light conditions — essential for vehicle monitoring tied to traffic compliance or incident reconstruction.

The camera runs H.264 compression with Axis Zipstream technology, which intelligently reduces bitrate by up to 50% in low-motion scenes without sacrificing forensic detail — a practical saving on bandwidth and storage when 24/7 recording spans dozens of onboard cameras across a fleet.

Key Features

• 2MP Full HD (1920×1080) resolution: Captures sufficient detail for passenger identification and incident analysis in cabin environments; trade-off is wider field of view over higher resolution, but adequate for the typical 15–25 ft cabin widths on transit vehicles.
• 88° horizontal field of view: Covers end-to-end cabin or exterior mounting points without excessive fisheye distortion; plan for ~2–3 cameras per car depending on cabin length.
• M12 circular connector (A-coded): Eliminates the failure point of vibration-prone RJ-45 connections; pairs with standard M12 patch cables rated for IP67 rated connectors, reducing field repairs on moving equipment.
• IP66/IP67 environmental ratings: IP66 handles direct spray and dust storms; IP67 endures temporary full immersion — sufficient for overhead vehicle mounting, roof-level cameras, and exterior bracket deployment. Exceeds EN50155 (railway electro-magnetic immunity) and EN45545 (fire/toxicity) standards required for EU and UK rail certification.
• IK10 impact resistance: Withstands 20J direct impacts without lens damage — relevant for mounted installations near pantographs, catenary maintenance points, or high-vibration track sections.
• Forensic WDR: Delivers balanced exposure across 120dB dynamic range, recovering detail in both shadowed and bright regions simultaneously; eliminates the need for separate night/day calibration on mixed-lighting routes.
• Lightfinder technology: Maintains color rendition below 0.01 lux (full moonlight) — avoids the grayscale penalty of conventional low-light modes and preserves uniform color reproduction for passenger identification and signage legibility.
• Traffic Light mode: Automatically detects and color-corrects traffic signal images, critical for incident reports tied to traffic compliance or accident reconstruction where signal timing is disputed.
• Axis Edge Vault: Protects device identity and firmware integrity via cryptographic signing; prevents unauthorized firmware replacement or spoofing — a baseline requirement for regulated transit operators.
• Axis Zipstream H.264: Reduces recorded bitrate 40–50% in static/low-motion scenes (typical for parked or slow-moving vehicles) without loss of forensic detail; translates to ~40–50% storage savings on multi-camera installations recording 24/7.
• Compact dome form factor: Low-profile ceiling or wall mounting in tight cabin spaces; durable acrylic dome resists scratching and UV degradation over vehicle lifespan (5–10 years typical for transit coaches).

Integration & Compatibility

The camera outputs ONVIF-compliant H.264 streams via standard Ethernet over the M12 connector, integrating with AXIS Camera Station, Milestone XProtect, and other ONVIF Profile S/T compliant VMS platforms. Power arrives via Power-over-Ethernet (PoE) — specifically PoE planning should account for 12.95W maximum draw, well within IEEE 802.3af (15.4W) budgets, so standard PoE injectors or unmanaged switches support multiple cameras per circuit.

Optional mounting: when paired with the AXIS TP3826-E weatherproof housing, the 02671-001 can be mounted externally on vehicle roof, coupler, or bogies, extending surveillance to exterior tracking and coupler coupling-point inspection.

When to Choose a Different Model

If you require higher resolution (≥5MP) for long-distance corridor surveillance or license-plate OCR, consider higher-megapixel outdoor IP cameras in the Axis Q-series or P-series varifocal variants. If deployment is fixed indoor (no vibration, no vehicle movement), standard IP65-rated dome cameras may cost less and simplify cabling. If you need motorized zoom to dynamically frame passengers or objects of interest, evaluate Axis pan-tilt-zoom (PTZ) models for rail control rooms, though onboard space and power constraints typically exclude PTZs from cabin mounting.

Frequently Asked Questions

Q: Is the Axis 02671-001 compliant with NDAA Section 889?

A: Axis is a Swedish manufacturer not subject to NDAA restrictions. Verify with your procurement policy; if NDAA compliance is mandatory, confirm the clause applies to your specific contract.

Q: What is the warranty period for the 02671-001?

A: Axis standard warranty is 3 years from shipment. Confirm with your distributor for extended or on-site support options available in your region.

Q: Can the camera operate in temperatures below freezing?

A: The camera is rated for -40°C to 60°C operating range, supporting harsh winter rail environments and unheated vehicle storage. Verify defroster or lens-heater options if persistent condensation is expected on interior cabin-facing domes in rapid temperature-change scenarios.

Q: What VMS platforms support the 02671-001?

A: ONVIF Profile S/T compliance means integration with AXIS Camera Station, Milestone XProtect, Genetec Security Center, and most modern IP video management systems. Confirm your VMS version supports ONVIF; legacy systems (pre-2015) may require firmware updates.

Q: Does the M12 connector require special cabling, or will standard Ethernet work?

A: M12 A-coded circular connectors are industry-standard on rugged/mobile equipment. Use M12-to-RJ-45 or M12-to-M12 PoE patch cables rated for your distance (typically 50–100m). Standard RJ-45 cabling cannot directly plug into M12 connectors; adapters exist but degrade environmental protection.

Q: What is the maximum PoE cable run distance?

A: Standard IEEE 802.3af supports up to 100m (328 ft) cable distance. Confirm your PoE injector or switch is within 100m of the camera; longer runs may require PoE extenders or higher-power sources (PoE+ / 802.3at).

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 02671-001 is purpose-built for one job: survive railway and vehicle motion while delivering frame-accurate forensic video. Its M12 connector and IK10 impact rating are not checkbox features — they directly address the two highest failure modes in mobile surveillance: vibration-induced connector dropout and physical impact to optics. The combination of Lightfinder + Forensic WDR handles the worst-case lighting scenario onboard transit: a passenger walks from bright sunlight through a window into a shadowed cabin, and you need color fidelity and detail in both frames simultaneously. That's what this camera delivers.

Technical Highlights:

• M12 A-coded connector: Purpose-engineered for vibration immunity; RJ-45 connectors experience intermittent packet loss and complete signal dropout on vehicles with poor suspension or running rough track — M12 eliminates that class of failure.
• IK10 impact rating (20J): Absorbs a 2kg weight dropped from 1m directly onto lens or dome without lens or dome separation — relevant on routes with overhead catenary work, maintenance strikes, or high-vibration bogies.
• Dual low-light technologies (Lightfinder + Forensic WDR): Lightfinder preserves color detail below 0.01 lux; Forensic WDR balances 120dB dynamic range. Combined: you get usable color video in tunnels and at night without thermal/grayscale fallback. On a metro line with long dark sections, this eliminates the 'passenger ID lost in darkness' problem.
• Axis Zipstream H.264: On a 40-car commuter train, each camera running 24/7 at 1080p/30fps burns ~3.2 Mbps raw. Zipstream cuts that to ~1.6–2 Mbps in low-motion scenes (parked vehicles, long station dwells). Over a month of 24/7 recording, that's 100+ GB saved per camera — multiply across 40 cameras and you're looking at 4+ TB monthly reduction, a meaningful factor when NVR storage is limited.
• IP66/IP67 dual rating: IP66 handles rain, salt spray, and direct washdown typical on open-air coach exteriors or locomotive tops. IP67 endures temporary full submersion — relevant if cameras are mounted near drain points or coupler areas prone to water pooling during heavy rain or washdown.
• EN50155 + EN45545 compliance: Non-optional for EU and UK rail contracts. This camera meets electro-magnetic immunity (high-frequency rail switching gear) and fire/toxic smoke standards — omitting this certification disqualifies the entire installation.

Deployment Considerations:

• M12 connectors require M12-rated PoE patch cables; you cannot use standard RJ-45 with a passive adapter without losing environmental protection. Budget ~£15–25 per cable and verify your PoE infrastructure supports 100m runs if cameras are in the rear coaches.
• The 88° field of view on a 2MP sensor means passenger facial identification requires <6m distance — adequate for cabin mounting (6–8m typical cabin length) but inadequate for platform-to-train surveillance. Don't use this for platform cameras; that requires higher-resolution units.
• Lightfinder works only when the camera is set to full-color mode; switching to grayscale mode (some VMS platforms do this automatically in very low light) defeats the purpose. Confirm your VMS keeps the color mode lock enabled on all Axis cameras; if it doesn't, you lose the investment in this feature.

Best Fit: Onboard passenger coaches, locomotive cabs, and freight vehicle cargo areas on routes with variable lighting (tunnels + outdoor daylight) and high vibration (passenger trains, heritage railways, trams). If your deployment is fixed indoor (bus depots, maintenance garages) or you need platform surveillance, this camera is overkill and a lower-cost indoor unit will suffice. For light-rail or metro operations where EN50155 certification is enforced, the 02671-001 reduces procurement risk — it's already pre-certified.
