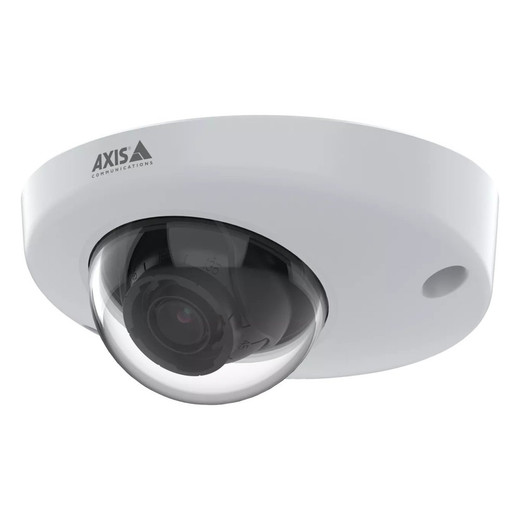

Axis 02671-021 P3905-R MK III Industrial Compact Dome Camera
The Axis 02671-021 (P3905-R Mk III M12) is a sealed dome camera purpose-built for industrial and indoor surveillance deployments where industrial-grade M12 field-replaceable connectors and IP-rated enclosures are non-negotiable. Delivering 2MP (1920×1080) resolution with dual-codec support and forensic-grade wide dynamic range processing, this camera targets security integrators, warehouse automation engineers, and IT architects deploying standardized surveillance in manufacturing floors, logistics facilities, and utility automation environments.
Key Features
- 2MP Progressive-Scan CMOS Sensor: 1920×1080 resolution paired with a fixed 3.6mm lens (F2.0 aperture, 88° horizontal FOV) delivers crisp facial and object detail in close-proximity industrial monitoring — machinery control panels, loading dock entry points, server room access, or logistics conveyor systems. The fixed focal length eliminates lens complexity and maintains consistent depth of field across installation zones.
- H.265 and H.264 Dual Compression: Native support for both codecs means you can cut storage footprint 40–60% by switching to H.265 on multi-camera 24/7 recording setups, or maintain H.264 for legacy network video recorder compatibility. Real bandwidth and storage savings on installations with a dozen or more cameras operating continuously.
- Forensic WDR Processing: Advanced wide dynamic range engine recovers shadow and highlight detail in mixed-lighting factory and utility environments — critical where fluorescent, natural, and spotlighting overlap. Reduces the need for external fill lighting or secondary camera placement in areas with challenging lighting transitions.
- Integrated 850nm IR Illumination (0.3m Range): Built-in infrared LEDs deliver day/night capability without external illuminators. The 0.3-meter (12-inch) range suits close-range monitoring of machinery, control panels, or confined industrial spaces; not designed for long-distance perimeter or exterior work. Eliminates a separate power supply and external IR enclosure for compact indoor deployments.
- IP66 Sealed Enclosure: Dust and water-resistant design (direct spray, particulate ingress) suitable for semi-outdoor industrial deployments and washdown-adjacent areas. Not rated for full submersion or sustained high-pressure spray — avoid immersion scenarios. Protects sensitive electronics in damp manufacturing, logistics, and utility automation environments where corrosion and particulate contamination are persistent concerns.
- M12 Industrial Connector (PoE+ via M12): Field-replaceable, quick-disconnect M12 Ethernet connector replaces fragile RJ45 plugs in rugged field installations. Standard in automotive, manufacturing, and utility automation sectors; enables pre-terminated cable harnesses and faster equipment swap-outs on production lines. Delivers PoE+ power (802.3at, Class 1) — approximately 12–13W depending on IR duty cycle — so no separate 12VDC power supply required. Single M12 cable handles both data and power; simplifies installation in confined industrial spaces.
- microSD Local Edge Storage (up to 512GB): On-camera recording enables continuous or event-triggered backup independent of the network video recorder. Useful for deployments with intermittent connectivity or as failover recording on critical monitored zones. Acts as a buffer when network latency or recorder downtime occurs.
- ONVIF Profile S Compliance: Integrates with multi-vendor VMS platforms (Milestone XProtect, Genetec Security Center, Axis Camera Station, and others) without proprietary APIs or driver dependencies. Lowers vendor lock-in risk and simplifies mixed-brand surveillance architectures.
- Enterprise Security Posture: HTTPS encryption, secure boot, and signed firmware prevent unauthorized access and firmware tampering. Addresses cybersecurity baseline requirements in manufacturing and utility automation where network isolation may not be guaranteed.
Integration & Compatibility
The 02671-021 connects via standard PoE+ network switches equipped with M12 breakout adapters or native M12 power injectors. Deploy across Milestone, Genetec, or Axis Camera Station without additional middleware. Supports event-driven recording via analytics or on-camera motion detection, and local microSD failover ensures critical zones remain covered even during network interruptions.
Frequently Asked Questions
Q: What is the IR range on the Axis 02671-021?
A: The 02671-021 delivers 0.3m (12-inch) IR range via integrated 850nm LEDs. This is optimized for close-range indoor monitoring of machinery, control panels, and confined spaces — not for long-distance perimeter surveillance. For exterior or distance work, consider a higher-wattage external IR illuminator or a different camera family.
Q: Does the 02671-021 work with Milestone XProtect?
A: Yes. The camera supports ONVIF Profile S, which integrates with Milestone XProtect, Genetec Security Center, Axis Camera Station, and other multi-vendor VMS platforms without proprietary plugins.
Q: What's the power consumption of the 02671-021?
A: The 02671-021 draws approximately 12–13W via PoE+ (802.3at, Class 1), depending on IR LED duty cycle. A single M12 Ethernet cable provides both data and power — no separate 12VDC supply is needed.
Q: Can the 02671-021 be used outdoors?
A: The IP66 rating handles direct spray and dust, making it suitable for semi-outdoor industrial areas and washdown-adjacent zones. It is not rated for full submersion or sustained high-pressure jets. For exposed outdoor perimeter work, consider an IP67-rated or higher outdoor dome.
Q: Is there a warranty on the Axis 02671-021?
A: The 02671-021 includes a 5-year manufacturer warranty covering defects in materials and workmanship.
Q: How much local storage does the 02671-021 support?
A: The camera supports microSD cards up to 512GB capacity for on-camera continuous or event-triggered recording, providing edge backup when the network video recorder is unavailable or during network latency events.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02671-021 is a solid fit for industrial environments where M12 connectors and sealed enclosures are table stakes — manufacturing floors, logistics facilities, and utility automation zones. The 2MP resolution paired with an 88° fixed lens delivers crisp detail for machinery and control-panel monitoring without the complexity of motorized varifocals. The real value driver here is the integrated IP66 seal and M12 quick-disconnect: field technicians can swap the camera in seconds without RJ45 wrestling, and the sealed optics mean you're not replacing housings every season in dusty or damp environments.
Technical Highlights:
- H.265 Dual-Codec Support: On a typical 24/7 multi-camera deployment with 12+ cameras, switching to H.265 saves roughly 40–60% storage versus H.264 — real money at scale. You can also backfill legacy recorders on H.264 without re-encoding.
- Forensic WDR + 0.3m IR: The combination of wide dynamic range processing and integrated IR covers the vast majority of indoor industrial lighting scenarios — fluorescent overhead, natural light from windows, and machinery spotlights all in one frame. The 0.3m IR range is short, but that's by design for close-range machinery and panel monitoring; if you need 10m+ IR, you're looking at a different form factor.
- PoE+ via M12 (12–13W): Sub-14W power draw means your PoE+ switch isn't strained, and you avoid a separate 12VDC supply. One M12 cable handles everything — power and data — which is a genuine labor saver in compact panel enclosures.
Deployment Considerations:
- The 0.3m IR range is the biggest constraint. Don't expect this camera to illuminate a 30-foot warehouse aisle — it's built for machinery, control panels, and tight machinery zones. If your deployment requires distance IR, you'll need external illumination or a different camera.
- IP66 is durable for washdown-adjacent and semi-outdoor industrial settings, but it's not a submersible rating. Avoid full water immersion or sustained high-pressure spray; if you're deploying near open water or aggressive spray nozzles, step up to IP67 or higher.
- The fixed 3.6mm lens locks you into an 88° horizontal field of view. If you need wider (130°+) or narrower (40°–60°) coverage, you're looking at a different model in the Axis line — there's no varifocal option in this M12 compact form factor.
The 02671-021 shines in controlled manufacturing and logistics environments where the fixed lens angle matches your camera placement and IR illumination needs are close-range. Pair it with an M12-capable PoE+ switch and a multi-vendor VMS (via ONVIF), and you've got a low-maintenance, proven platform for machinery and process monitoring. Don't force it into long-range or outdoor perimeter roles — there are better tools for those jobs.
