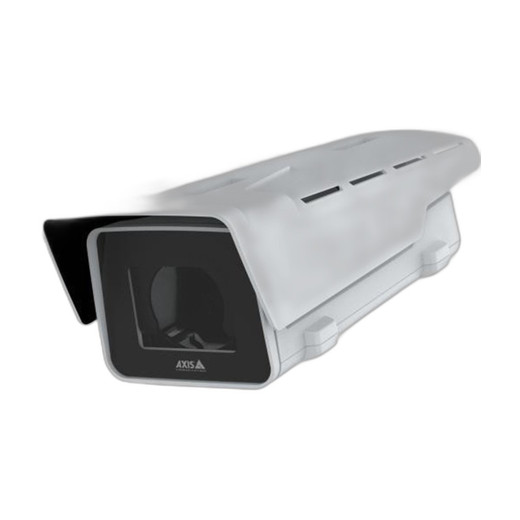

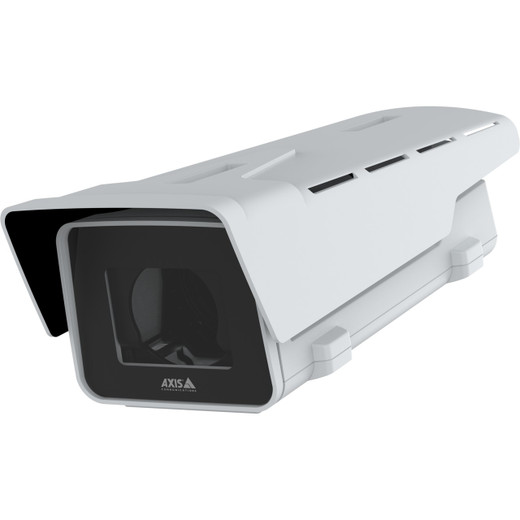

Axis P1388-BE 8MP AI Outdoor Box Camera
The Axis P1388-BE is a professional-grade 8MP outdoor box camera engineered for demanding surveillance environments. This barebone model combines high-resolution imaging with AI-driven analytics, delivering intelligent security solutions for enterprises requiring advanced threat detection and forensic-quality video capture. Built for outdoor installation, the P1388-BE integrates Axis's proven reliability with modern AI capabilities to reduce false alarms and improve incident response.
Key Features
- 8MP CMOS sensor with 1/1.8" format for exceptional detail and coverage
- AI-powered object detection and classification for intelligent analytics
- Lightfinder 2.0 technology for superior low-light performance
- Forensic Wide Dynamic Range (WDR) for balanced exposure in mixed lighting
- H.264 compression with Zipstream technology for bandwidth optimization
- IP66 rating and IK10 vandal rating for harsh outdoor durability
- PoE power delivery with low average consumption (5.0W)
- CS-mount lens compatibility for flexible optical configurations
- Operating range -40°C to +60°C for extreme climate environments
- Secure boot and signed OS for enhanced cybersecurity
- Audio support for two-way communication
- Environmentally responsible: BFR/CFR free and PVC-free materials
Technical Specifications
Imaging: The 8MP resolution captures 3840×2160 video at up to 30fps standard operation, with maximum capability at 50/60fps depending on streaming configuration. The 1/1.8" CMOS sensor paired with Lightfinder 2.0 enables effective surveillance in twilight and low-light conditions without sacrificing daytime image quality.
Video Quality: Forensic WDR compensates for backlit scenes and high-contrast environments common in outdoor surveillance. H.264 compression combined with Zipstream intelligent bandwidth scaling reduces storage and network load while maintaining forensic detail.
Environmental Protection: IP66 rating protects against dust ingress and water jets from any direction. The IK10 vandal rating resists impacts up to 20 joules, essential for accessible outdoor locations. Temperature tolerance from -40°C to +60°C ensures reliable operation in arctic and desert installations.
Power & Integration: PoE Class 4 operation requires a single network cable, simplifying installation in remote locations. Average power draw of 5.0W (peak 25.5W) minimizes PoE infrastructure costs. CS-mount design accommodates various lens options for customized fields of view.
Applications
Ideal for perimeter security, traffic monitoring, critical infrastructure protection, parking facilities, and retail outdoor areas. The AI analytics capability supports proactive security monitoring, enabling automated alerts for unauthorized personnel, vehicle detection, or loitering behavior. Forensic-quality imaging supports post-incident investigations and evidence documentation.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The P1388-BE represents Axis's commitment to edge intelligence in outdoor surveillance. The barebone configuration allows system integrators to specify optimal lens solutions for unique deployment scenarios—critical for box cameras where field-of-view customization directly impacts detection performance. Lightfinder 2.0's combination with Forensic WDR creates a balanced solution for mixed-lighting environments without resorting to dedicated IR lighting, reducing maintenance burden in outdoor deployments.
The AI classification engine reduces alert fatigue through intelligent filtering, a significant operational advantage in unattended surveillance. PoE efficiency—5W average consumption—allows extended cable runs and simpler power infrastructure compared to traditional DC box cameras. Secure boot and signed OS protect against firmware tampering, essential for critical infrastructure and regulated environments. The IK10/IP66 ratings place this camera at the premium durability tier, justifying its position for long-lifecycle outdoor installations where replacement costs and downtime carry high operational impact.
Download Product Datasheet (PDF) Available in White.
