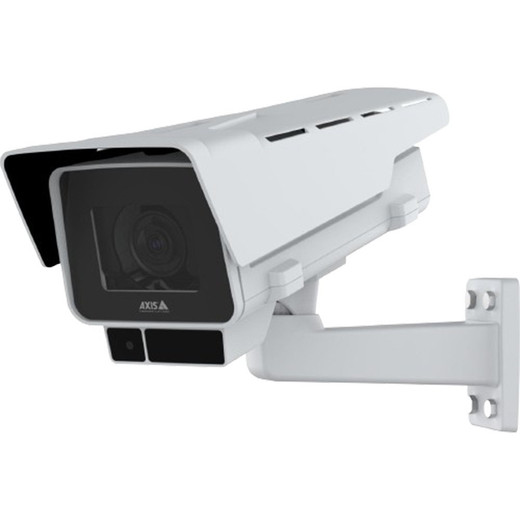

Axis 02736-001 P1387-LE 5MP Outdoor AI IR Box Camera
The Axis P1387-LE (model 02736-001) is a professional outdoor box camera engineered for continuous perimeter surveillance, loading dock monitoring, and critical infrastructure protection. It delivers native 5MP resolution (2592x1944) with Lightfinder 2.0 technology, which enables 0.1 lux color sensitivity in twilight conditions — eliminating the need for thermal cameras in applications where color forensics matter. Built-in IR illumination extends visibility in complete darkness. The motorized varifocal lens (2.8–13mm, 112–24° field of view) adapts to multiple deployment angles without repositioning the camera body, reducing installation labor and post-deployment adjustments.
Key Features
- 5MP Native Resolution (2592x1944): Captures forensic-quality detail at 30 fps; scales to 50/60 fps at lower resolutions for high-motion scenes without straining storage or processing bandwidth.
- Lightfinder 2.0 with 0.1 lux color sensitivity: Delivers usable color video in low-light conditions where competing models revert to grayscale or thermal, preserving clothing colors, vehicle markings, and facial detail for evidence quality.
- Built-in IR illumination: No external IR array required; IR range supports 24/7 operation without light pollution concerns. Reduces BOM cost and wiring complexity versus separate IR spotlights.
- Motorized varifocal lens (2.8–13mm): Eliminates the need to stock multiple fixed-focal-length models; field operators or integrators can dial in the exact angle needed during commissioning or adjust remotely if coverage requirements shift.
- Forensic WDR (Wide Dynamic Range): Balances bright and dark regions simultaneously — critical for outdoor scenes with heavy shadows cast by buildings or trees, ensuring license plate details and personnel faces remain visible in mixed lighting.
- AI-powered edge analytics: On-camera object classification and intelligent motion detection reduce false alarms and VMS database bloat by filtering irrelevant motion events server-side.
- H.264 with Zipstream compression: Reduces bitrate 30–50% versus standard H.264 on identical scenes; meaningful on 24/7 multi-camera NVR deployments with bandwidth or storage constraints.
- PoE Class 4 powered (max 25.5W): Draws 8.5W typical, 25.5W peak — fits within a single 802.3at PoE+ port on modern enterprise switches. No external 12VDC supply or local power outlet required; simplifies wiring in remote outdoor locations.
- IP66 / IK10 rating: IP66 blocks direct rain and dust indefinitely; IK10 withstands impact and deliberate tampering. Suitable for exposed mounting on loading docks, parking perimeter poles, and open-air industrial sites.
- Operating temperature range -40°C to 60°C: Maintains reliability in arctic storage facilities and desert or tropical sites without thermal enclosures or climate-controlled housings.
- Two-way audio support: Enables talk-down via intercom or real-time communication with on-site personnel; useful for access control scenarios or emergency response coordination.
- Secure Boot and signed OS: Protects against firmware injection and unauthorized modifications, addressing enterprise cybersecurity policy requirements.
Integration & Compatibility
The 02736-001 supports Axis IP cameras ecosystem integrations, including ONVIF Profile S/T/G for broad VMS compatibility (Milestone XProtect, AXIS Camera Station, and third-party platforms). Audio input/output enables two-way communication integration with access control or emergency response systems. Signed firmware and Secure Boot align with enterprise network security policies.
When to Choose a Different Model
If your application requires panoramic coverage or 360° rotation, consider a PTZ variant in the outdoor IP cameras line. If resolution must exceed 5MP for extreme distance identification, evaluate higher-megapixel fixed-lens models in the same family. If the environment demands submersion protection (IP67 or higher), this model is not suitable — specify a submersible variant instead. For indoor-only perimeter applications where environmental hardening is unnecessary, lower-cost non-weatherproof models may reduce capital expenditure.
Frequently Asked Questions
Q: What is the effective IR illumination range on the 02736-001?
A: Built-in IR extends visibility in complete darkness; specific range varies by reflectance of the target scene and lens focal length set. Consult the manufacturer datasheet for quantitative throw distance.
Q: Does the P1387-LE support remote lens adjustment via the network?
A: Yes — the motorized varifocal lens can be adjusted remotely through the camera's web interface or integrated VMS, allowing field-of-view modifications without physical access to the camera.
Q: What compression formats does the 02736-001 support?
A: H.264 with Zipstream optimization and MJPEG. H.265 is not listed in the available evidence for this model.
Q: Is the Axis P1387-LE compatible with standard PoE+ switches?
A: Yes — the camera is PoE Class 4 with a maximum draw of 25.5W, well within the 30W limit of IEEE 802.3at (PoE+) switches. Standard 802.3af (15.4W) may not provide headroom for peak operation; PoE+ is recommended.
Q: What mounting options are available for the 02736-001?
A: The box form factor supports wall and ceiling mounting via bracket hardware. Exact bracket options and compatibility should be verified with the technical specification sheet.
Q: Does the camera support ONVIF for third-party VMS integration?
A: Yes — ONVIF Profile S/T/G support enables integration with Milestone, Genetec, and other third-party platforms that conform to the ONVIF standard.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The 02736-001 (P1387-LE) is a pragmatic choice for outdoor perimeter surveillance where color forensics and flexible field-of-view matter more than pan-tilt coverage. The motorized varifocal lens eliminates the operational friction of swapping multiple fixed-lens models or commissioning separate cameras for different angles. Lightfinder 2.0 at 0.1 lux color sensitivity is not marketing copy — it genuinely outperforms thermal alternatives when you need to preserve clothing colors, vehicle insignia, or facial tone for evidence quality.
Technical Highlights:
- Lightfinder 2.0 + 1/2.7" CMOS sensor: Achieves 0.1 lux color sensitivity in twilight; far superior to standard sensors at the same MP rating. Typical low-light cameras drop to 0.5–2 lux, forcing either thermal fallback or grayscale forensics.
- Motorized varifocal 2.8–13mm lens: Covers 112–24° field of view in a single camera — eliminates the need to stock or commission separate 2.8mm, 4mm, and 8mm variants for different mounting heights or distance targets.
- H.264 + Zipstream bitrate reduction: Reduces storage footprint 30–50% on 24/7 deployments; on a 16-camera outdoor array, this translates to 2–3 fewer TB of NVR storage or proportional cost reduction in cloud-based retention.
- PoE Class 4, 25.5W max draw: Fits within a single 802.3at PoE+ port; typical draw of 8.5W means you can deploy 3–4 cameras per switch port before hitting power limits — realistic for small-scale deployments without a dedicated PoE++ infrastructure overhaul.
- Forensic WDR: Outdoor mixed-lighting scenes (shadows from buildings, trees, or overhangs) retain detail in both bright and dark zones simultaneously. Without WDR, loading dock footage often shows either blown-out sunlit pavement or silhouetted personnel.
Deployment Considerations:
- PoE headroom: 25.5W peak means 802.3af (15.4W) switches will underpower the camera during IR peak draw or cold startup. Verify your switch supports 802.3at PoE+ before deployment; a single undersized port will create intermittent reboot cycles.
- IR wash-out at close range: Built-in IR works well for 20+ meter perimeter scenes but can saturate (white-out) at very close range (under 3 meters). For entry doors or vestibule monitoring, consider external IR arrays or reduced IR intensity settings if available.
- Varifocal commissioning: The motorized lens requires careful focus and zoom calibration during install. Lazy commissioning (leaving lens at wide-angle or close focus) wastes the hardware advantage. Allocate 30–60 minutes per camera for field-of-view optimization.
Best positioned for commercial campuses, industrial loading docks, and perimeter security where 5MP color forensics, adaptive field-of-view, and 24/7 reliability outweigh the complexity and cost of PTZ systems. The 02736-001 earns its cost on deployments requiring multiple fixed-angle alternatives — one varifocal camera replaces three or four fixed models.
