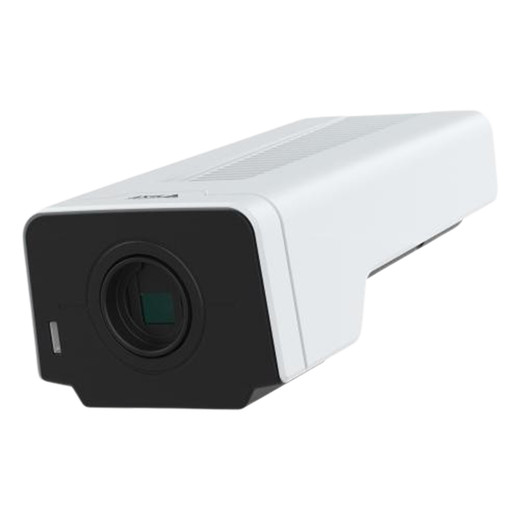

Axis 02901-001 P1387-B 5MP Indoor Box Camera
The Axis 02901-001 is a compact, barebone box camera designed for indoor surveillance environments where image clarity and efficient power consumption are priorities. Built on a 1/1.8" CMOS sensor capable of 2592×1944 resolution (5MP), this IP camera delivers detailed imagery without relying on built-in infrared illumination—a critical advantage in spaces where IR washout or color accuracy matters.
Key Features
- 5MP Resolution at High Frame Rates: Captures 2592×1944 resolution at up to 50/60fps in progressive scan mode, meaning motion-heavy scenes (retail checkouts, entrance areas, warehouse picking lines) render with minimal ghosting. At standard 30fps operation, you preserve bandwidth and storage without sacrificing temporal clarity.
- Lightfinder 2.0 Technology: Delivers usable imagery in low-light indoor spaces (stairwells, corridors, storage areas) without auxiliary IR, preserving natural color and avoiding the washed-out appearance common to IR-dominant cameras. Ideal where you need forensic detail and naturalistic color reproduction simultaneously.
- Forensic Wide Dynamic Range (WDR): Balances exposure across mixed lighting—bright windows beside shadowed shelving, skylight pooling next to dim aisles. The result: readable detail in both highlights and shadows in a single frame, eliminating the need for exposure compromise or multi-exposure stacking in post-processing.
- H.264 Video Compression: Reduces bandwidth and storage demands compared to motion JPEG while maintaining quality suitable for detail extraction and forensic playback. On a 24/7 multi-camera system, this translates to measurable disk savings and lower switch port utilization.
- PoE Class 3 Power Delivery: Draws average 4.3W (maximum 10.6W) via standard 802.3af PoE, meaning it won't stress your switch's power budget and requires no separate power infrastructure. Simplified cabling: one Ethernet run handles both video and power.
- CS-Mount Lens Interface: Barebone configuration—no lens included. This trades initial simplicity for flexibility: you select lens focal length (4mm, 6mm, 8mm, or varifocal options) matched to your specific coverage requirement. Wider angle for dense areas, narrower angle for distant detail zones.
- Audio Support: Integrated audio input enables two-way communication (with compatible NVR/VMS) and environmental monitoring—useful for retail loss-prevention coordination or warehouse zone verification.
- Compact Box Form Factor: Space-efficient design suitable for ceiling or wall mounting in offices, retail, banking, and institutional environments where discrete mounting is preferred over larger turret or bullet profiles.
- Temperature Range -10 to 55°C: Operates reliably across indoor climate variation, from unheated loading docks to warm server rooms or retail spaces with variable HVAC.
Integration & Compatibility
The 02901-001 supports standard network video recorder integration via ONVIF Profile S (confirmed in Axis documentation), allowing deployment across most commercial VMS platforms. H.264 compression is universally supported by enterprise VMS architectures, eliminating codec negotiation complexity. Audio I/O integrates with two-way communication workflows in Axis Camera Station and third-party systems that support audio streams.
CS-mount compatibility means lens selection is your responsibility—plan for 2–3 mm focal lengths in tight retail spaces or 6–8 mm for warehouse overview positions. Verify lens availability and optical characteristics against your scene geometry before ordering the barebone unit.
When to Choose a Different Model
If your installation requires outdoor durability, built-in IR illumination, or motorized zoom, the 02901-001 is not the right choice. Consider higher-resolution variants in the Axis IP camera family if you need to resolve facial detail at 15+ meters or capture license plates at distance. If you need the convenience of a factory-matched lens and sealed optical path, look to fixed-lens box models rather than barebone configurations.
Frequently Asked Questions
Q: Does the Axis 02901-001 include a lens?
A: No. The 02901-001 is a barebone unit with CS-mount interface only. You select and install a compatible CS-mount lens separately based on your coverage requirements.
Q: What is the maximum frame rate at full 5MP resolution?
A: 50/60fps in progressive scan mode depending on regional power standard (50Hz regions or 60Hz regions). Standard operation is 30fps; higher frame rates reduce motion blur in fast-moving scenes.
Q: Does the 02901-001 require a separate power supply?
A: No. PoE Class 3 (802.3af) delivers all power needed. Average draw is 4.3W, so any modern managed switch with PoE capability will support it without auxiliary injectors.
Q: Is Lightfinder 2.0 the same as night vision or infrared?
A: No. Lightfinder 2.0 is a sensor technology that amplifies available visible light (ambient room lighting, skylights, exit signs). It does not emit infrared and therefore does not cause IR washout or reflect off glass/water surfaces. It requires some ambient light; total darkness still requires external IR illumination.
Q: What ONVIF profiles does the 02901-001 support?
A: ONVIF Profile S (core streaming and configuration). Verify your VMS or NVR explicitly supports Profile S if ONVIF interoperability is mandatory.
Q: Can I use this camera outdoors?
A: No. The 02901-001 is rated for indoor environments only. IP rating does not include weather sealing. For outdoor use, select an IP66-rated Axis box or turret variant from the outdoor camera family.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis P1387-B (model 02901-001) occupies a specific but important niche: high-resolution indoor surveillance where natural color and shadow detail matter equally. The 1/1.8" CMOS sensor combined with Lightfinder 2.0 technology and Forensic WDR creates a complementary pair that addresses the real problem in mixed-lighting indoor spaces—balancing exposure and color fidelity without relying on IR illumination, which introduces its own set of artifacts.
Technical Highlights:
- 5MP at 50/60fps Progressive: Most 5MP cameras max out at 30fps. The 02901-001 can sustain 50/60fps operation, reducing motion blur in retail checkouts, warehouse conveyor lines, or any high-motion scene. You trade frame rate for resolution only if your scene geometry requires it—typical 30fps operation preserves bandwidth.
- Lightfinder 2.0 + Forensic WDR Combined: Lightfinder handles low-light amplification; Forensic WDR handles highlight/shadow balance. This dual approach eliminates the common complaint that low-light cameras produce crushed blacks or washed-out bright areas. Both problems are addressed by different subsystems, not a compromise between them.
- PoE Class 3 at 4.3W Average: Lightweight power draw means you can string this camera on budget PoE infrastructure designed for 802.3af (15.4W per port). In a 24-camera retail installation, that's a real advantage—no need to upgrade to PoE+ switch ports or injectors.
Deployment Considerations:
- Barebone Lens Selection: The CS-mount barebone design is flexible but requires you to choose a lens before installation. Common mistake: ordering the 02901-001 without verifying lens availability or optical characteristics. A 4mm fixed lens is standard for 60° FOV retail; 6mm for narrower aisles; 8mm for detail capture at distance. Plan lens selection upfront.
- No Built-in IR: If your facility has areas with zero ambient light (completely dark storage, sealed server closets), Lightfinder 2.0 will not perform. Plan external IR illumination for those zones or accept daytime-only operation there. This is not a limitation of the 02901-001 specifically—it's a limitation of ambient-light-dependent technology.
- Indoor-Only Rating: Temperature range is -10 to 55°C, which covers most HVAC-controlled indoor spaces. Unheated loading docks in cold climates may dip below -10°C; confirm facility conditions before deployment.
The 02901-001 is the right choice for retail loss prevention, office lobby monitoring, banking teller lines, and institutional surveillance where you need 5MP clarity, natural color reproduction, and efficient power delivery—and you're willing to spend 10 minutes selecting the correct lens. It's not a grab-and-mount camera; it requires intentional lens choice. For integrators comfortable with that trade-off, the image quality and frame rate capability justify the barebone approach.
