Discontinued — No Longer Available New
This model has been discontinued by Axis. Shop current Axis products → or see the recommended alternatives below.

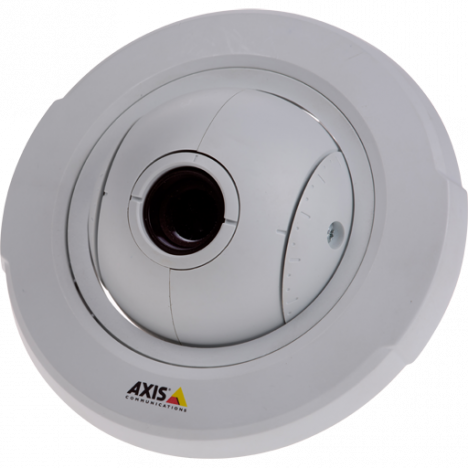

Axis P1290-E Thermal Detection Outdoor IP Camera Sensor Unit
The Axis P1290-E is a professional-grade thermal network camera engineered for perimeter security, critical infrastructure monitoring, and 24/7 surveillance in challenging environmental conditions. Unlike visible-light cameras, this thermal imaging solution detects heat signatures to deliver reliable detection regardless of darkness, fog, smoke, or camouflage attempts—making it ideal for outdoor deployments where traditional cameras fail.
Key Features
- Thermal imaging with uncooled microbolometer sensor for cost-effective operation
- Operates in complete darkness, fog, smoke, and extreme weather without supplemental lighting
- IP66-rated weatherproof enclosure for outdoor installation in harsh environments
- PoE (Power over Ethernet) for simplified deployment and reduced cabling
- Zipstream technology for optimized bandwidth and storage efficiency
- H.264 video compression for reliable network transmission
- Advanced analytics-ready for integration with security platforms
- Wide operating temperature range: -30 to 55°C
Technical Specifications
Thermal Sensor: 208x156 resolution uncooled microbolometer with thermal sensitivity (NETD) <100 mK, capturing fine temperature distinctions for accurate detection. Optics: 4mm focal length delivers a 35.4° horizontal and 28° vertical field of view—optimal for perimeter and wide-area surveillance. Frame Rate: 8.3 fps provides smooth thermal video suitable for motion detection and object tracking. Power & Connectivity: PoE Class 2 eliminates the need for separate power infrastructure, reducing installation complexity and cost. Environmental Rating: IP66 certification ensures protection against dust and powerful water jets, supporting outdoor deployment in demanding climates.
Applications
- Border and perimeter security for critical facilities
- Port and airport surveillance in all-weather conditions
- Industrial plant monitoring and equipment inspection
- Search and rescue operations
- Wildlife monitoring and research
- Night-time intrusion detection without visible light spillage
Integration & Compatibility
ONVIF-compliant architecture ensures seamless integration with Video Management Systems (VMS) and third-party security platforms. Built-in support for advanced analytics enables intelligent threat detection and reduces false alarms caused by shadows or animal movement.
The P1290-E addresses a critical gap in outdoor surveillance: thermal imaging eliminates dependency on ambient light while reducing false positives inherent in conventional motion detection. The <100 mK thermal sensitivity ensures detection of human-sized objects at extended distances. PoE deployment significantly lowers total cost of ownership by eliminating dedicated power runs.
Thermal cameras excel in border security, industrial perimeter protection, and 24/7 monitoring where traditional cameras require infrared illumination or suffer from lighting inconsistencies. The 208x156 resolution is industry-standard for thermal detection applications and balances performance with bandwidth efficiency. Zipstream optimization further reduces storage and network strain—critical for continuous operation across multiple thermal sensors.
Download Product Datasheet (PDF)
