Axis M7316 16-Channel Video Encoder - 02037-004

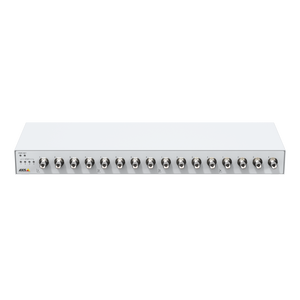

Axis 02037-004 M7316 16-Channel Video Encoder

The Axis 02037-004 is a rackmount video encoder designed to convert analog video signals into network-based IP streams. For organizations with existing analog CCTV infrastructure, this device eliminates the need to discard working cameras while enabling centralized IP-based recording, management, and analytics. The 16-channel architecture supports gradual migration from analog to IP without operational disruption.

Overview

The M7316 accepts 16 analog BNC video inputs and encodes them into multiple simultaneous IP streams. This matters because legacy analog systems remain valuable investments—estimated annual replacement costs for a typical retail or municipal multi-site deployment can run into five or six figures. Rather than rip-and-replace, the 02037-004 preserves camera hardware while unlocking network-based benefits: centralized network video recording, remote monitoring, and integration with modern VMS platforms via ONVIF.

Power consumption is 32W maximum via PoE, meaning a single switch port supplies all encoding and processing—no external power adapter required. The 1U metal enclosure fits standard 19-inch rackmounts, reducing floor space compared to distributed encoders.

Key Features

• H.265 and H.264 compression: H.265 cuts bitrate roughly 40–50% versus H.264 at equivalent quality—directly reducing storage costs and network bandwidth on 24/7 16-channel deployments. VBR (variable), ABR (average), and MBR (maximum) bit rate modes let you trade latency for bandwidth savings depending on VMS requirements.
• Up to 8MP resolution encoding: Individual streams support full 8MP (3840 × 2160) at 30fps. Quad-view mode delivers simultaneous 1080p + quad monitoring on legacy analog PTZ cameras, enabling operator oversight without requiring modern IP PTZ units.
• Four independent IP addresses: Channels are divided into four groups (four channels per address), enabling bandwidth segmentation and security isolation—one group can fail or be isolated without affecting the other three.
• Axis Zipstream technology: Dynamically reduces bitrate on static areas while preserving detail on motion and objects of interest—deployment tests show 30–70% additional savings on top of H.265, depending on scene complexity (parking lots benefit more than busy retail floors).
• MicroSD/microSDHC/microSDXC storage with AES-256 encryption: Supports cards up to maximum capacity for edge recording; on-device encryption ensures compliance with data protection requirements without relying on external storage servers.
• 8 analog/digital microphone inputs and 4 audio line outputs: Two-way full-duplex audio supports intercom, alarm notifications, and live incident response. Audio codecs include AAC-LC, Opus, G.711, and G.726, compatible with most VMS and telephony systems.
• Extensive PTZ support: Up to 100 presets per analog PTZ camera via Coaxitron and Pelco protocols; compatible joystick control enables operator workflows identical to native IP PTZ systems.
• Advanced image processing: Rotation, de-interlacing, privacy masking, and noise reduction handle analog signal artifacts. Privacy masking and motion detection triggers enable event-driven recording and guard-tour automation without ACAP licensing.
• Enterprise security: IP filtering, HTTPS/TLS 1.3, IEEE 802.1X EAP-TLS, and SNMP v3 protect against unauthorized access. Axis Edge Vault with device ID protection prevents credential compromise if hardware is stolen or accessed offline.
• ONVIF Profile G, M, S, and T compliance: Ensures compatibility with Axis Camera Station, Milestone XProtect, and third-party VMS platforms without vendor lock-in.

Integration and Deployment Considerations

The 02037-004 (often searched as 02037 004) integrates with any ONVIF-compliant VMS architecture via RTSP/RTP and SRTP/RTSPS streams. Network protocols include IPv4/IPv6, SNMP for monitoring, and MQTT for event publishing to external systems.

Typical deployments involve placing the encoder in a central facility (retail headquarters, municipal operations center, transportation hub) with analog video and audio routed from remote sites via multicore cable or existing CCTV infrastructure. The encoder consumes minimal CPU resources on the VMS—a single unit handles all encoding, reducing load on recording servers.

Audio codec selection is important: G.711 and G.726 are bandwidth-efficient for alarm/intercom use; AAC-LC and Opus suit higher-fidelity voice or music. Confirm VMS codec support before deployment.

Frequently Asked Questions

Q: Does the Axis 02037-004 support Motion JPEG in addition to H.264 and H.265?

A: Yes. Motion JPEG is available as a secondary stream option if your VMS or edge application requires it, though it consumes 2–3x more bandwidth than H.265 and is rarely necessary in modern deployments.

Q: Can the M7316 handle interlaced analog video from older cameras?

A: Yes. The encoder includes automatic de-interlacing to convert 480i (NTSC) or 576i (PAL) signals into progressive streams. Frame rate and quality depend on source signal quality and scene motion.

Q: What is the maximum microSD card capacity supported?

A: The M7316 supports microSDXC cards up to the maximum capacity available at time of manufacture. Consult the datasheet for current limits. Card performance (UHS speed class) directly affects local recording framerate—UHS-I Class 3 is recommended for sustained 8MP encoding.

Q: Does the 02037-004 require a separate PoE injector, or will a standard PoE switch power it?

A: A standard PoE switch (802.3af or higher) powers the encoder directly. At 32W maximum, it fits comfortably within 802.3at (PoE+) budgets and will not strain most enterprise-grade PoE switches.

Q: Is the M7316 NDAA compliant?

A: Axis products are not Section 889 compliant due to Chinese manufacturing. Confirm NDAA requirements with your procurement team if deploying to federal, military, or critical infrastructure sites.

Q: Can I daisy-chain multiple M7316 encoders for sites with more than 16 analog cameras?

A: Yes. Multiple encoders can be deployed in parallel with each assigned separate IP addresses or subnets. The VMS treats each encoder as an independent device, scaling seamlessly across dozens of cameras.

Marty Allison

The Axis 02037-004 addresses a critical pain point in the surveillance market: organizations with substantial analog CCTV investments (often 5–15 years old, still functional, still under use) facing pressure to modernize without capital replacement. Rather than forcing a complete rip-and-replace project, the M7316 preserves existing hardware while enabling centralized IP recording, remote access, and modern VMS integration. This is pragmatic engineering, not marketing.

Technical Highlights:

• H.265 compression with Zipstream: The combination delivers 40–70% bitrate reduction versus legacy analog DVR setups. On a 16-camera system recording 24/7 at 8MP, this means a single NVR or SAN can handle what previously required multiple discrete recorders—storage cost elimination is substantial.
• Four independent IP addresses (4 channels each): This segmentation isn't marketing window dressing. It lets you isolate a subset of channels on a separate network VLAN if a camera or group fails, and it provides granular QoS control—critical in bandwidth-constrained environments like municipal networks or retail WANs.
• Quad ARTPEC-7 processors with 4GB RAM: The dual-processor architecture ensures encoding stability under sustained load. A single weak processor would struggle with 16 simultaneous 8MP streams at 30fps; quad processors distribute load and provide redundancy. On-device 512MB Flash supports firmware updates and configuration persistence without external dependencies.
• PTZ analog camera support (Coaxitron, Pelco): If your site already has analog PTZ cameras, the M7316 doesn't orphan them. Preset management, pan/tilt/zoom control, and guard-tour automation work identically to native IP PTZ systems—no operational retraining required.
• 802.1X EAP-TLS and Edge Vault: Modern security requirements (SOC 2, HIPAA, PCI DSS compliance) demand encrypted credentials and secure boot. Edge Vault prevents credential extraction even if someone physically removes the encoder from your rack.

Deployment Considerations:

• Analog cabling infrastructure: Verify your multicore or individual analog runs are in good condition. Degraded shielding or poorly terminated connectors will introduce noise that the encoder's de-interlacing and noise reduction can mitigate but not eliminate—run a quality audit before large-scale deployment.
• VMS codec support: Confirm your VMS handles H.265 streams natively. Older platforms (Milestone XProtect versions before 2020, Genetec versions before 2018) may not decode H.265 without upgrade; in those cases, revert to H.264 to avoid unnecessary re-encoding load on the VMS server.
• MicroSD local recording edge case: On-encoder microSD recording is useful for failover or temporary VMS outage, but it is NOT a substitute for centralized NVR recording. MicroSD cards fail, cards are accidentally removed, and capacity is finite—use it for redundancy, not primary archive.
• Audio codec matching: If you're integrating two-way intercom, ensure the receiving system (VMS, telephony platform, third-party intercom) supports the same audio codec. G.711 is universal; Opus is more efficient but less widely supported in legacy environments.

The 02037-004 is the right tool for retrofit scenarios in retail chains, municipalities, transportation hubs, and industrial facilities where analog cameras have years of useful life remaining. It's not a technology showcase; it's a pragmatic, cost-effective path to IP infrastructure without wholesale hardware replacement. Deploy it when you need to unlock IP benefits from existing analog systems, and skip it if you're building greenfield surveillance from scratch—native IP cameras and edge NVRs will cost less and perform better.
