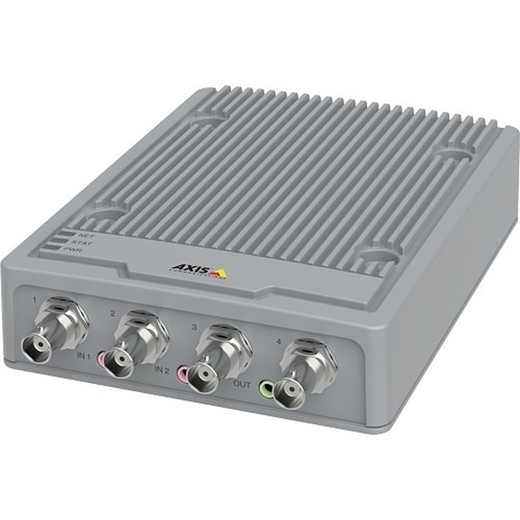

Axis 01680-001 4-Channel Video Encoder

Axis 01680-001 4-Channel Video Encoder

The Axis 01680-001 is a four-channel analog-to-IP video encoder that bridges legacy composite video systems with modern IP infrastructure. It accepts up to four BNC composite video inputs and converts them into independent H.264, H.265, or Motion JPEG streams delivered over a single Ethernet connection. The encoder draws power from standard PoE (802.3af), eliminating the need for a separate power supply and simplifying installation in facilities where power runs are constrained or unavailable.

Key Features

• Four Analog BNC Inputs with Unified IP Management: Accepts standard composite video from up to four analog cameras, each converted to an independent stream under a single IP address. This reduces network overhead and simplifies DHCP pool management compared to assigning individual IPs to separate encoder devices — a real advantage in large warehouses or multi-site deployments where address space is tight.
• H.264 and H.265 Compression with Axis Zipstream: Supports both H.264 and H.265 codecs. H.265 reduces bitrate requirements roughly 40–60% compared to H.264 at equivalent quality, meaningful when recording 24/7 across multiple channels or streaming to remote sites with limited bandwidth. Axis Zipstream further optimizes streams by intelligently reducing data in static areas, extending storage life without visible quality loss.
• Quad-Channel 1080p or Single-Channel 4K Resolution: All four channels handle up to 1920×1080 at 25 or 30 fps simultaneously. One channel can output 4K (3840×2160) at up to 15 fps if source analog quality permits — useful for upgrading a single critical camera feed without replacing the entire analog system.
• PoE Power at Under 13W: Draws under 13W at full load, fitting comfortably within standard 802.3af budgets (15.4W). No separate power injector or external supply required — one PoE port delivers both power and data, eliminating extra cable runs and wall outlet dependencies in warehouses, retail environments, and outdoor kiosks.
• MicroSD Edge Storage with AES-256 Encryption: Built-in microSD/microSDHC/microSDXC slot allows local video backup without a separate NVR. Recordings are encrypted with 256-bit AES, protecting footage if the encoder is physically removed — essential for sites without network-attached storage or where local failover recording is mandated by compliance policy.
• PTZ Control via RS485/RS422: The 01680-001 can command pan-tilt-zoom cameras directly, supporting up to 100 preset positions per channel and joystick input. Eliminates the need for a separate PTZ controller when migrating existing analog PTZ installations to IP infrastructure.
• Dual Configurable Audio Inputs: Two microphone or line-level audio inputs support LPCM, AAC-LC, G.711, G.726, and Opus encoding. Audio streams alongside video, enabling two-way voice for retail counters, warehouse pickup stations, or intercom use cases without additional hardware.
• Image Processing On-Device: Rotation (0°/90°/180°/270°), aspect ratio correction, privacy masking, noise reduction, sharpness adjustment, and text/image overlay run on the encoder itself, reducing load on downstream recording servers and VMS systems. Particularly useful when recording multiple analog streams on budget-constrained storage.
• Motion Detection and Event Triggering: Built-in motion detection, loitering guard, fence guard, and video loss detection trigger FTP/SFTP/HTTP/email notifications or pre/post-alarm video buffering. Guard tour functionality allows time-based or event-triggered routes on PTZ channels without third-party software integration.
• ONVIF Profile G and M Compliance: Integrates with network video recorders and VMS platforms that support ONVIF standards, ensuring compatibility across Milestone, Axis Camera Station, and other major recording systems. VAPIX API support enables custom integration or event-driven workflows.

Integration and Compatibility

The 01680-001 plugs into any standard PoE-capable network switch without additional power equipment. Its low wattage makes it suitable for remote branch installations or outdoor IoT enclosures where power budgets are limited. Composite video inputs accept signals from any legacy analog camera—CVBS format—so existing camera plants can be migrated incrementally. Audio inputs support both microphone and line-level sources, simplifying integration with warehouse intercoms or retail POS systems.

When to Choose a Different Model

If you need direct IP camera replacement without any analog legacy infrastructure, consider native IP cameras from the Axis catalog instead—they offer better image quality and lower maintenance. If you require more than four channels, look for higher-capacity encoders or a modular NVR with built-in analog input modules. For analog systems with significant bandwidth constraints, a dedicated storage appliance paired with the 01680-001 may be more cost-effective than relying solely on microSD edge backup.

Frequently Asked Questions

Q: Can the Axis 01680-001 handle analog composite video from older CCTV cameras?

A: Yes. The 01680-001 accepts standard CVBS (composite video) inputs via four BNC connectors, so it works with any analog camera that outputs composite video—including decades-old systems. No modification to the camera end is needed.

Q: What's the maximum storage capacity using microSD cards?

A: The encoder supports microSD/microSDHC/microSDXC cards. Practical capacity depends on card availability and manufacturer specifications, but cards up to 512GB or larger have been used successfully with modern standards. Actual retention depends on resolution, codec (H.265 extends duration roughly 40–60% vs. H.264), and frame rate.

Q: Does the 01680-001 require a separate power supply?

A: No. It draws under 13W via standard 802.3af PoE, so a single PoE port on your switch delivers both power and data. No additional power injector is needed.

Q: Can I control analog PTZ cameras with the 01680-001?

A: Yes. The encoder includes two RS485/RS422 control ports supporting up to 100 presets per channel and joystick input, eliminating the need for a standalone PTZ controller when upgrading analog PTZ systems to IP.

Q: Is the Axis 01680-001 compatible with my existing VMS?

A: The encoder supports ONVIF Profile G and M, ensuring compatibility with major VMS platforms including Milestone XProtect, Axis Camera Station, and others that conform to ONVIF standards. VAPIX API support allows deeper integration where needed.

Q: What happens to recordings if the encoder loses network connection?

A: The built-in microSD slot with AES-256 encryption allows local failover recording, protecting footage without a separate NVR. When network is restored, local footage can be recovered and transferred to central storage.

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 01680-001 solves a specific problem: your legacy analog camera plant is working fine, but your new NVR or VMS expects IP streams. Rather than rip-and-replace dozens of cameras, this encoder lets you bridge the gap with one device. Four BNC inputs, single IP address, PoE power under 13W—straightforward and low-friction.

Technical Highlights:

• H.265 Codec Support: Reduces storage footprint 40–60% versus H.264, critical when microSD edge storage is your failover and bandwidth to a remote NVR is constrained. Every bit counts in a 24/7 four-channel system.
• Unified Four-Channel IP Assignment: One IP address manages all four streams, not four separate IPs. Reduces DHCP churn and simplifies firewall rules in large deployments—a detail IT teams will appreciate.
• PoE Power Under 13W: Fits cleanly into 802.3af budgets. Standard PoE switches already in the field will power the 01680-001 without a power injector, eliminating a point of failure.
• PTZ Control Built-In: RS485/RS422 ports support up to 100 presets per channel. No separate PTZ controller needed; one device manages video conversion and camera movement.

Deployment Considerations:

• The single-channel 4K output (3840×2160 @ 15 fps) is useful for a flagship camera, but don't expect all four channels at 4K—analog source quality and the encoder's processing will bottleneck you. Plan for 1080p on all four, 4K on one if you need it.
• MicroSD failover storage is encrypted but still local. If physical theft or total encoder loss is a realistic threat, plan for network-attached backup in parallel—don't rely solely on the card.
• Motion detection and guard tour features work well for basic alerting, but guard-rail integration and custom analytics will require VAPIX API work or a downstream VMS. The encoder itself is not an analytics platform.

Positioned best for warehouse or retail analog-to-IP migration where you have working analog cameras, modest bandwidth, and need quick IP integration without capital expense. If you're starting fresh with IP, buy native IP cameras instead.
