Axis M7116 16-Channel Video Encoder - 02036-004

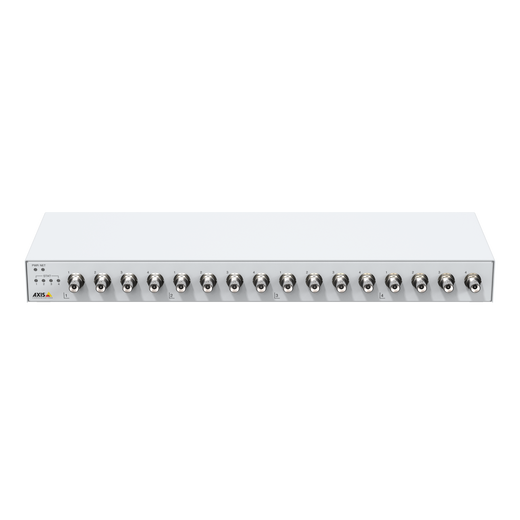

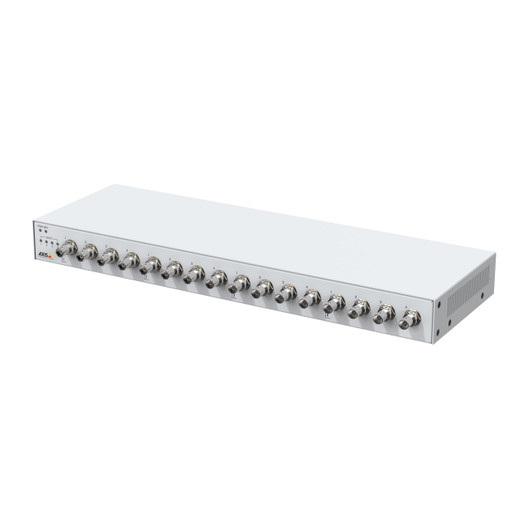

Axis 02036-004 16-Channel Video Encoder

The Axis 02036-004 is a professional 16-channel encoder that translates analog video into IP-native streams without forcing you to replace working analog camera infrastructure. Built on the ARTPEC-7 processor with 1024 MB RAM, this 1U rackmount device handles simultaneous encoding across all 16 BNC inputs, making it the practical choice when your facility has mature analog CCTV but your network security and recording requirements demand IP-based management.

Overview

Modernizing analog surveillance to IP doesn't require ripping out cameras. The M7116 sits between your existing analog infrastructure and your network video recorders or VMS platform, encoding all 16 camera feeds in real time. Each camera connects via standard BNC, and the encoder outputs H.264, H.265, or Motion JPEG streams over Ethernet — no separate power supply needed because the unit draws under 26W and can operate on a single PoE connection.

Four independent IP addresses (one per four channels) let you segment camera groups logically across your network. This isolation matters in multi-facility deployments where you need separate VLAN handling or independent stream configuration for different zones. Quad-view capability enables simultaneous full-resolution monitoring of up to four channels at 30 fps, useful for local console operation or failover scenarios.

Key Features

• 16 simultaneous analog BNC inputs: Encode all cameras at once without bottleneck — no wait time, no stream prioritization conflicts.
• H.264, H.265, and Motion JPEG compression: H.265 cuts storage consumption roughly in half versus H.264 under identical bitrate constraints, meaningful when archiving 24/7 across 16 channels. H.264 remains standard for broad VMS compatibility if your platform doesn't yet support H.265.
• Axis Zipstream technology (H.264/H.265): Dynamically reduces bitrate during static scenes while preserving detail during motion — typical savings are 30–50% bandwidth reduction in low-activity monitoring zones.
• Up to 30 fps at resolutions from 176x144 to 720x576: Standard PAL/NTSC analog frame rates and resolutions, matching the output of your existing cameras. No frame-rate mismatch between analog acquisition and IP output.
• microSD/microSDHC/microSDXC local storage with AES-XTS-Plain64 256-bit encryption: Buffer recordings directly to encrypted SD cards when network outage occurs. Local failover ensures you don't lose footage during WAN issues. Encryption prevents unauthorized access to recorded content on removable media.
• Advanced PTZ preset support (up to 100 per camera): If any of your analog inputs connect to motorized pan-tilt-zoom heads, the encoder manages all preset positions and recall — command-and-control for analog PTZ without IP camera replacement.
• Power over Ethernet (PoE), max 26W: Single network cable supplies power and data. No dedicated 12VDC supply, no separate power infrastructure — one wire to the switch simplifies installation in retrofit scenarios.
• ONVIF Profile compliance (G, M, S, T): Works with any ONVIF-compliant VMS (Milestone XProtect, Genetec, Hanwha, Bosch, etc.). No vendor lock-in; streams are portable.
• Multiple security layers (HTTPS, IEEE 802.1X EAP-TLS, 802.1AE MACsec, IP filtering, signed firmware): Firmware signature verification and digest authentication with OAuth 2.0 prevent tampering. Network-level encryption (MACsec) and certificate-based authentication (802.1X) secure the encoder against man-in-the-middle and unauthorized access in hostile network environments.
• Image processing (rotation, de-interlacing, color/brightness/contrast, privacy masking, noise reduction): Correct analog source issues at the point of encoding — straighten camera tilt, smooth interlaced video artifacts, mask sensitive zones without modifying the VMS or camera. Reduces post-processing load on your recorder.
• AXIS Video Motion Detection and AXIS Camera Application Platform (ACAP) support: Run third-party analytics on the encoder itself — people counting, intrusion detection, or custom applications — offload processing from your NVR.
• Event actions (guard tours, image/video upload, SNMP traps, MQTT publish): Automated notifications and conditional actions (e.g., email on motion, upload snapshot to cloud, trigger external system via MQTT) reduce manual monitoring burden.

Integration & Compatibility

The M7116 integrates with any VMS supporting ONVIF Profile S (Streaming), T (Thermal), or G/M (basic/management). IPv4/IPv6 dual-stack networking and SNMP v1/v2c/v3 enable monitoring and alerting from enterprise network management tools. RTSP, SRTP, and RTSPS protocol support allow encrypted stream transport. Network Time Security (NTS) and NTP keep all encoder timestamps synchronized — critical for forensic correlation across multiple recordings.

Mounting is flexible: 1U rackmount standard, with optional wallmount or standalone desktop installation. Metal casing (white, NCS S 1002-B) withstands typical server room vibration and electromagnetic noise. Operating range of 0°C to 50°C (32°F to 122°F) with 10–85% humidity tolerance suits most indoor facilities; outdoor deployment requires an environmental enclosure.

Frequently Asked Questions

Q: Can I use the Axis 02036-004 to upgrade my analog system to IP without replacing cameras?

A: Yes. The M7116 accepts 16 analog BNC inputs and outputs H.264, H.265, or Motion JPEG streams over Ethernet. Your existing cameras remain in place; the encoder bridges them to your IP-based VMS or NVR.

Q: What's the actual bitrate I should plan for with the 02036-004?

A: Bitrate depends on compression, resolution, and scene complexity. H.264 at 720x576 and 30 fps typically ranges 2–8 Mbps per channel depending on motion and quality settings. H.265 reduces that roughly 40–60%. Axis Zipstream can halve those numbers in static scenes. Plan for 5–10 Mbps per channel as a conservative baseline for 16-channel streaming.

Q: Is the 02036-004 compliant with NDAA Section 889 or other supply-chain requirements?

A: Axis publishes compliance documentation separately by region and customer class. Check your Axis distributor or the manufacturer's supply-chain compliance portal for the latest certification status for your jurisdiction.

Q: Does the encoder support my legacy VMS platform?

A: If your VMS supports ONVIF Profile S or higher, the M7116 will stream to it. RTSP/SRTP protocols are also supported. Verify your VMS documentation for H.264/H.265 decoder support; some older platforms may require H.264 only.

Q: How does local SD card failover work if the network drops?

A: The encoder can write video streams to an encrypted microSD card simultaneously while streaming over the network. If your network connection fails, recording continues to the local card. When connectivity is restored, you can retrieve the buffered footage from the SD card — no loss of content during the outage.

Q: What's the warranty coverage on the 02036-004?

A: Axis provides a 5-year warranty on the M7116. Check your order confirmation or sales quote for regional variations and coverage terms.

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 02036-004 occupies a genuine niche: organizations managing mature analog CCTV infrastructure that need IP modernization without a forklift migration. If you've got 16 cameras bolted to poles, walls, or ceiling mounts that still perform — and you've identified video management or compliance reasons to shift to IP — the M7116 eliminates the false choice between keeping legacy analog and buying 16 new IP cameras. The ARTPEC-7 processor and dual-compression support (H.264/H.265) give you flexibility to optimize for either broad VMS compatibility or aggressive bandwidth savings depending on your infrastructure priorities.

Technical Highlights:

• H.265 compression with Zipstream: Typical 40–60% bitrate reduction versus H.264 under identical visual quality. In a 16-channel continuous-recording scenario, that difference translates to halving your storage footprint or extending retention periods without additional disk investment.
• AES-XTS-Plain64 256-bit microSD encryption: Failover storage that doesn't sacrifice security. If your facility or compliance regime requires encrypted data at rest, local SD card buffering now becomes forensically sound — the card itself is encrypted, not just the data path.
• Four independent IP addresses (quad-channel per address): Network segmentation without 16 separate subnets. Useful in multi-tenant or high-security deployments where you need logical isolation and independent access controls per camera group without network overhead.
• PoE power draw under 26W: A single 802.3af port or even a low-power PoE injector can run the entire encoder. No dedicated 12VDC supply, no additional infrastructure in the rack — one wire, one power budget line item.

Deployment Considerations:

• Analog video quality is the ceiling — if your analog cameras are delivering substandard color or low light, the M7116 won't restore what the sensor never captured. Inspect source quality before committing.
• ONVIF compliance assumes your VMS actually implements those profiles correctly. Older or niche VMS platforms may claim ONVIF support but lack full H.264/H.265 decoder support. Verify lab testing before production deployment.
• The 1U form factor assumes rackmount installation. If you're retrofitting a warehouse or outdoor kiosk, you'll need a weatherized cabinet or wall-mount enclosure — the encoder itself isn't IP67.

Deploy the 02036-004 when you're extending the lifecycle of analog infrastructure while modernizing network architecture. It's particularly strong in financial institutions, municipal facilities, and critical infrastructure where camera replacement budgets are frozen but compliance or security posture requires IP-based logging and centralized management. Don't use it if you're designing a new system from scratch — buy native IP cameras instead and skip the encoder complexity.
