Axis 02372-001 4MP Outdoor Dome IP Camera

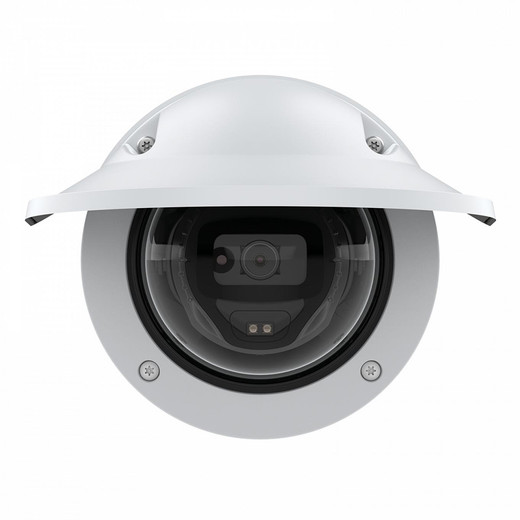

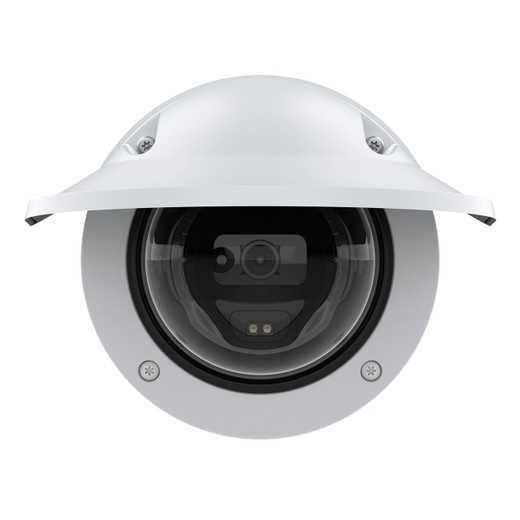

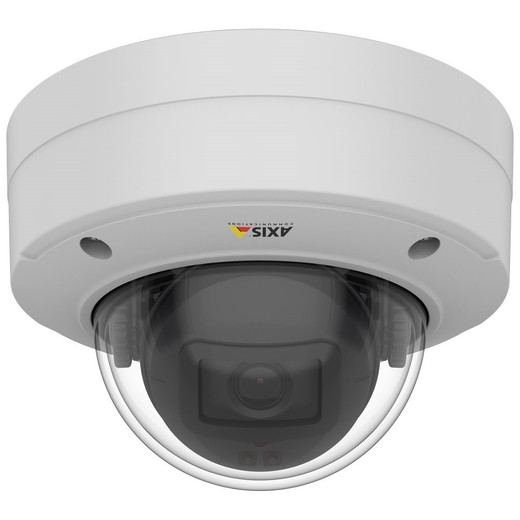

The Axis M3216-LVE (model 02372-001) is a compact outdoor dome built for the surveillance integrator who needs reliable 4MP imaging in variable light without budget bloat. IP66 and IK10 ratings mean you can mount it on building corners or entry canopies without fearing rain, dust, or minor impact — a practical constraint most outdoor deployments face. PoE power delivery keeps installation straightforward: single Cat5e/Cat6 run, no auxiliary supply.

Key Features

• 4MP resolution (2688 × 1520): Captures enough detail for facial recognition in mid-range shots (10–15 feet) and vehicle plate reads at parking lot distances. More than adequate for facility perimeters and access points; overkill only if you're covering a single door from 3 feet away.
• Axis Lightfinder technology: Produces sharp, saturated color images in light conditions as low as 0.1 lux (dusk, overcast dawn, or lit parking areas). This matters: color detail aids suspect identification far better than monochrome, and you avoid the IR-only trap where nighttime footage looks washed out or grained.
• Forensic WDR (wide dynamic range): Balances exposure in scenes with both backlit glass doors and shadowed alcoves. Prevents the common trade-off where you either blow out highlights or lose detail in dark corners — critical for entrance lobbies and loading docks.
• OptimizedIR with 850nm LEDs: Extends nighttime detection to 98 feet (30 meters) in total darkness. The 02372-001 IR activates automatically; if your deployment includes 24/7 monitoring without ambient light, this range determines whether you catch movement in a parking lot perimeter or only near the building face.
• H.264 compression (also supports MJPEG): H.264 cuts bandwidth roughly in half versus Motion JPEG for the same quality, reducing storage overhead on longer-term retention (important if you're archiving 30+ days). Pair this with your NVR's bitrate settings — don't just rely on defaults.
• ARTPEC-8 chipset with deep learning processing unit (DLPU): Enables edge analytics directly on the 02372-001 — motion detection, object classification (human vs. vehicle), and custom rules fire on-camera rather than taxing a central VMS. Reduces false alerts and keeps bandwidth usage lower on congested networks.
• Zipstream compression: Further cuts storage and bandwidth 30–50% beyond standard H.264 by analyzing scene complexity and dropping redundant detail in static areas. Tangible savings on multi-camera deployments; less critical for single-camera sites.
• Dome form factor with flush mount: The dome profile sheds rain runoff and deters casual tampering (no exposed cable stubs). Ceiling or wall mounting is straightforward; the compact size (6.4″ diameter) fits most architectural soffits without looking oversized.
• Ethernet PoE input (IEEE 802.3af): Draws approximately 12.95W maximum, well within standard PoE budget. A 24-port PoE switch can support 16–18 of these cameras without overload; check your switch's total power rating before deploying 20+.

Integration & Compatibility

The 02372-001 supports ONVIF Profile S (Streaming) and G (Analytics), making it compatible with major VMS platforms: Milestone XProtect, Genetec Security Center, Axis Camera Station, and most third-party systems. If you're building on an open ONVIF architecture, interoperability is not a concern. Edge analytics (object detection, motion) work natively; if you need advanced behavioral analytics (loitering, direction-crossing, crowd detection), you'll integrate through the VMS or a separate ACAP (Axis Camera Application Platform) module — not embedded in the 02372-001 itself.

Audio input is supported (optional external microphone); two-way audio is not native. If two-way communication is critical, plan for a separate audio codec or speaker system.

When to Choose a Different Model

If you need pan-tilt-zoom capability, step to the Axis PTZ family. If 4MP feels insufficient and you're covering a large outdoor perimeter with single-camera requirements, consider a higher-resolution variant in the Axis outdoor line. If your environment requires IP67 (full submersion resistance) or lower operating temperatures (below –40°C), verify environmental specs against the 02372-001's rated range of –40°C to 60°C and IP66 maximum.

Frequently Asked Questions

Q: What's the maximum IR range on the 02372-001?

A: OptimizedIR extends detection to 98 feet (30 meters) in total darkness. In partial darkness or with ambient light, effective range is shorter but more useful (color imagery returns). Test on-site to confirm range meets your perimeter requirements.

Q: Does the 02372-001 work with Milestone XProtect?

A: Yes. The camera supports ONVIF Profile S and G, compatible with Milestone and other ONVIF-compliant VMS platforms. Native integration is straightforward; analytics (object detection, motion) fire on-camera and can trigger Milestone rules.

Q: How much bandwidth does the 02372-001 typically use?

A: H.264 at default quality uses approximately 2–4 Mbps depending on scene motion. With Zipstream enabled, expect 1–2.5 Mbps. Test your actual scene (static lobby vs. busy parking lot) before finalizing network planning.

Q: Is the 02372-001 (02372 001) NDAA Section 889 compliant?

A: Axis products manufactured in Sweden meet NDAA supply-chain requirements. Verify current compliance status with your purchasing department if federal contracting is involved.

Q: Can I mount the 02372-001 indoors?

A: Yes. The dome is not temperature-restricted to outdoors. However, if you're deploying indoors, consider whether the 4MP resolution and IR range are necessary — a lower-cost indoor-rated camera may be more practical for hallways or low-risk areas.

Q: What PoE switch should I use with multiple 02372-001 cameras?

A: Each camera draws ~13W max via 802.3af PoE. A 60W PoE switch supports 4–5 cameras comfortably; a 240W switch handles 18–20 cameras. Always check the switch's total power budget and allow headroom for peak loads (all cameras full IR simultaneously).

James Everett

Perspective based on aggregated IPSD and affiliated engineering team experience.

The Axis 02372-001 is a solid, no-frills workhorse for outdoor facility surveillance. The combination of Lightfinder and Forensic WDR gives you usable color detail in lighting conditions that would force most budget cameras into monochrome or grainy IR mode — a real operational advantage when you need suspect identification, not just motion detection. The ARTPEC-8 chipset is a differentiator here: on-camera analytics reduce false alerts and take load off your VMS, which matters if you're scaling past 10 cameras on a single server.

Technical Highlights:

• Lightfinder + Forensic WDR combination: Maintains color fidelity at 0.1 lux (dusk/overcast conditions) and balances exposure in high-contrast scenes. No competing outdoor dome at this price point offers both without sacrificing frame rate or resolution.
• OptimizedIR 98ft (30m) range: Places the camera in the mid-tier for nighttime coverage. Sufficient for a parking lot or building perimeter; undersized for distant fence lines requiring 150+ feet. Know your distance requirement before final placement.
• ARTPEC-8 edge processing: Object detection and classification run on-camera, cutting bandwidth overhead and VMS CPU load. Meaningful if you're deploying 10+ cameras; negligible benefit on 2–3 camera installs.
• H.264 + Zipstream: Double compression efficiency compared to Motion JPEG reduces storage costs and network congestion, especially on 24/7 recording. Pair with your NVR's bitrate controls — don't assume Zipstream is a set-and-forget win without testing your scene.

Deployment Considerations:

• IP66/IK10 rating handles weather and minor impact, but is not submersion-rated. Do not specify this for flood-prone or fully submerged locations.
• PoE draw (~13W) is light, but cumulative load on your switch's power supply matters at scale. A single 60W PoE switch maxes out around 4–5 of these cameras; plan switch capacity before ordering 20 units.
• ONVIF Profile S/G compatibility is strong, but deep-learning analytics (people counting, crowd detection, advanced behavior) require VMS integration or ACAP modules — not built into the camera. Confirm your VMS supports the analytics rules you need.

Deploy the 02372-001 for mid-range outdoor coverage where 4MP, reliable low-light color, and on-camera analytics justify the investment. It's a fit for access points, parking lot entries, and facility perimeters. It is not optimal for extreme long-distance identification (use higher megapixel models) or fully submersed environments (use IP67).

Key Specifications:
Field of View: 102°
Color: White
