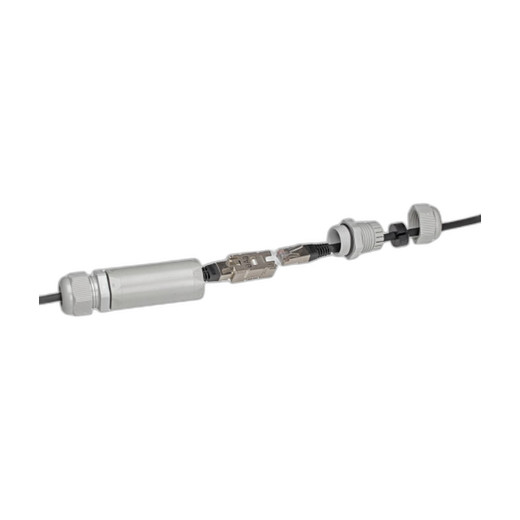

Axis 5503-431 IP66 Network Cable Coupler
The Axis 5503-431 is a weather-sealed network cable connector designed for outdoor and harsh-environment surveillance deployments where cable extension and environmental durability are non-negotiable. IP66-rated protection means dust and high-pressure water jets won't compromise your signal path — a practical concern in coastal, industrial, and open-air perimeter installations where connectors face salt spray, washdown, and seasonal weather exposure.
Key Features
- IP66 Environmental Rating: Complete protection against dust ingress and high-pressure water jets (12.5 MPa at 2.5–3 m). Skip this coupler if you need full submersion (IP67 or IP68); use it confidently for rain, spray, and outdoor washdown environments where a dry connection box exists nearby.
- Tool-Free Installation: Quick-connect design eliminates the need for crimpers, soldering irons, or RJ-45 punch-down tools. Reduces field labor per connection by roughly 5–10 minutes compared to traditional termination — meaningful when extending runs across multiple outdoor zones or managing frequent replacements.
- Corrosion and UV-Resistant Materials: Engineered housing withstands salt fog, UV radiation, and temperature cycling without degradation. Matters directly in coastal and high-altitude environments where connectors degrade visibly within 12–24 months if not rated for outdoor exposure.
- Axis Network Cable Compatibility: Works with Axis-branded outdoor-rated network cables and standard RJ-45 terminated runs. Confirms seamless integration into existing Axis IP camera and network video recorder installations without adapter chains or signal loss.
- Maintains Signal Integrity: Shielded construction preserves twisted-pair separation and impedance matching, critical for PoE+ and PoE++ power delivery over extended runs. Prevents voltage drop and crosstalk that can corrupt power delivery or introduce packet loss on 24/7 recording streams.
- Low Insertion Loss: Gold-plated contacts and precise RJ-45 alignment ensure minimal impedance deviation, supporting Gigabit Ethernet speeds without performance penalty across the coupler junction.
Integration & Compatibility
The 5503-431 (often searched as 5503 431) integrates directly into any outdoor network cabling topology running standard RJ-45 Ethernet. Pairs naturally with Axis outdoor cameras, encoders, and recorders that draw PoE power over extended cable runs. When planning cable extensions in high-moisture environments, pair this coupler with a weatherproof junction box or cable management enclosure to shelter the connection point itself — the coupler protects the connector, not the spliced cable ends. If your run exceeds 100 meters (the Ethernet limit), use a PoE extender or additional managed switch rather than stacking multiple couplers inline.
Typical Deployment Scenarios
Outdoor perimeter fences and parking lot camera extensions, industrial warehouse exterior networks, transportation hub cable runs, coastal surveillance installations, and smart-city infrastructure where cable consolidation or field replacement is routine. Also applicable to warehouse automation systems requiring networked sensors and mobile computers in wash-down zones.
When to Choose a Different Model
If submersion or continuous water exposure is required (fountain-mounted, underwater camera housings), specify IP67 or IP68 variants within the Axis accessory line. For indoor or controlled-environment deployments, standard unrated RJ-45 couplers offer identical performance at lower cost. If your run length approaches or exceeds 100 meters, evaluate active PoE extenders or a distributed switch architecture instead of relying on cable couplers alone.
Frequently Asked Questions
Q: Will the Axis 5503-431 coupler fit standard RJ-45 cables from other manufacturers?
A: Yes. The 5503-431 uses industry-standard RJ-45 geometry, so it mates with any properly terminated RJ-45 cable. Axis recommends their outdoor-rated cables to maximize the benefit of IP66 protection across the entire run.
Q: Can I use this coupler to extend a PoE run beyond 100 meters?
A: No. The 100-meter Ethernet standard limit applies regardless of coupler quality. For runs beyond 100 meters, use a PoE repeater, managed switch, or purpose-built extender at the midpoint rather than adding multiple couplers in series.
Q: Is the 5503-431 rated for direct sunlight and temperature cycling?
A: Yes. The UV-resistant material and corrosion-resistant housing are designed for continuous outdoor exposure, including temperature swings from freezing to 50°C+. Verify your specific operating temperature range against the full product specification if you operate in extreme climates (arctic or desert).
Q: What's the difference between IP66 and IP67 for this coupler?
A: IP66 prevents water jets at close range but does not protect against brief immersion. IP67 adds immersion protection (up to 1 meter for 30 minutes). Choose IP66 for outdoor aerial runs and weatherproof boxes; choose IP67 if the coupler may be submerged or left in standing water.
Q: Can I install the 5503-431 without tools?
A: Yes. Tool-free design allows field connection by hand — no crimper or punch-down tool required. Insertion and retention are mechanical, reducing installation time significantly compared to traditional RJ-45 termination.
Q: Does the 5503-431 work with Milestone, Axis Camera Station, or third-party VMS platforms?
A: The coupler is a passive connector; it has no VMS dependencies. It simply extends Ethernet connectivity transparently, so any camera or device that works on a standard network cable will work through this coupler regardless of VMS software.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 5503-431 is a straightforward piece of infrastructure that solves a real problem: outdoor cable extensions in harsh environments. IP66 protection is the headline — it means your connection won't degrade from rain, spray, or high-pressure washdown that would corrode an unrated coupler within months. I've seen too many deployments fail because someone used an indoor coupler outdoors and watched it oxidize in salt fog or heavy moisture. This one handles that exposure without compromise.
Technical Highlights:
- IP66 Rating (Dust + Water Jets): Blocks dust ingress completely and withstands pressurized spray (12.5 MPa) from any angle — non-negotiable for coastal, industrial washdown, or perimeter fence environments where standard couplers fail visibly within 6–12 months.
- Tool-Free RJ-45 Connection: Field technicians can snap connections on-site without a punch-down tool or crimper. Saves roughly 8–10 minutes per termination compared to soldered or crimp-style connectors, multiplied across multi-camera outdoor extensions.
- UV and Corrosion-Resistant Enclosure: Polymer or nickel-plated housing resists salt fog, chlorine, and direct sunlight over years of exposure — critical for coastal or pool-perimeter security where standard ABS plastic degrades within 18 months.
Deployment Considerations:
- The coupler protects the connector itself but not the cable ends — always house the connection in a weatherproof junction box or cable management enclosure to shelter the splice point and strain relief.
- Watch the 100-meter Ethernet limit: stacking multiple couplers to extend beyond this point will not bypass the standard, and PoE voltage drop becomes a real problem. Use an active extender or switch for runs beyond 100 meters instead.
- IP66 does not protect against full submersion — if your coupler must sit in standing water or brief immersion (fountain mounts, submerged housings), specify IP67 or IP68 alternatives.
Deploy the 5503-431 when you're extending outdoor surveillance or industrial network runs into salt spray, washdown, or high-moisture zones and field technicians need to make quick replacements without specialized termination gear. Pair it with a weatherproof enclosure and you've built a cable extension that won't degrade with the seasons.
