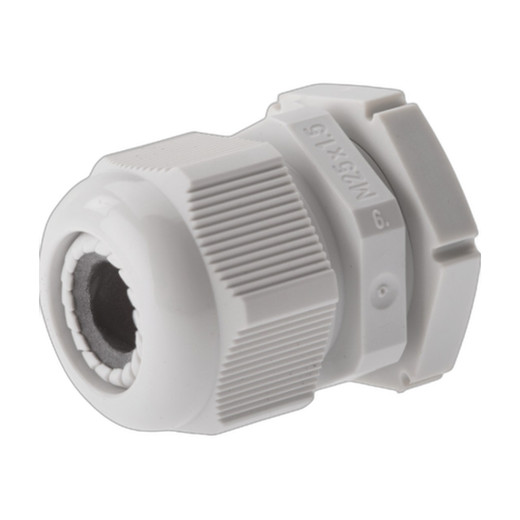

Axis 5503-831 M25 Cable Gland 5-Pack
The Axis 5503-831 is a five-unit pack of M25 threaded cable glands designed to secure and weatherproof cable entry points in outdoor surveillance cabinets and junction boxes. Cable glands are not glamorous, but they are critical: a single unsealed cable entry in a rain-exposed enclosure will flood your cabinet and destroy everything inside. This is why cable management specifications matter in surveillance deployments.
Key Features
- M25 Thread Size: Standard metric thread size that fits Axis T-98A-VE outdoor cabinets and most industry-standard junction boxes and enclosure punch-outs—no custom fabrication needed.
- Plastic Construction: High-quality plastic (not rubber or elastomer) resists UV degradation and won't crack in freeze-thaw cycles. This matters in climates with seasonal temperature swings; cheap rubber glands fail in 18–24 months outdoors.
- Quantity: Five per Pack: Most outdoor cabinet installations require multiple cable entries (power, network, drain, sensor lines)—five glands cover a typical two-to-four-camera cabinet setup without forcing you to buy multiple packs.
- Weatherproof Seal: Cable glands create a compression seal around cables passing through the enclosure wall. This prevents water, dust, and insects from entering along the cable jacket—a known failure point in field deployments.
- T-98A-VE Compatibility: Designed for the Axis T-98A-VE compact outdoor cabinet. If you're using that cabinet model in a rack or pole-mounted configuration, these glands are the correct choice and are already sized to fit the cabinet's cable ports.
- Professional Installation: M25 glands are hand-tightened without tools, reducing field labor time. Specify exact cable diameters when ordering to ensure proper seal—glands work best when the cable diameter is within the rated compression range (typically 6–14mm depending on gland design).
Integration and Compatibility
These glands are passive accessories and integrate with any enclosure that accepts M25 threads. Pair them with outdoor surveillance cabinets to seal all cable entries. If you're building a multi-camera system with Axis IP cameras feeding into an outdoor recorder or managed switch, cable gland selection is part of the enclosure specification phase. When planning a cabinet installation, count your cable entries (typically one per camera line, one for power, one for management network, plus spares) and ensure you have enough glands. Leaving cable ports open or sealed only with duct tape will void weatherproofing claims on the cabinet.
Deployment Considerations
Cable glands are rated by IP (Ingress Protection) class, not by cable count. M25 glands are most effective when cables entering the enclosure are grouped logically—all camera cables through one gland bank, power separately—and when you use enough glands so that no single gland is carrying four cables at once (over-stuffing reduces compression and allows water ingress). In corrosive or high-salt environments, verify the plastic material against chloride attack; standard plastic is adequate for inland/urban sites but may degrade in marine zones over 5+ years.
