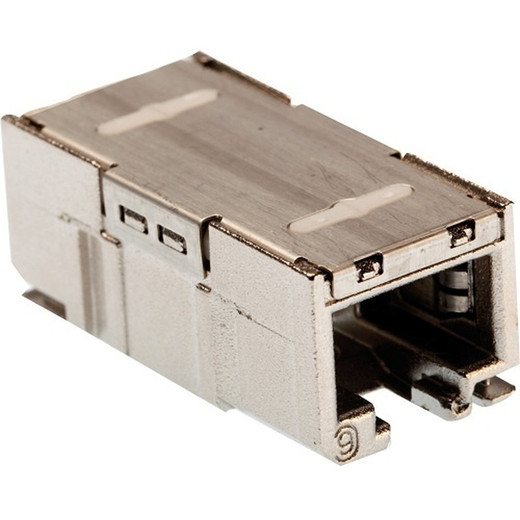

Axis 5503-272 Indoor Slim Network Cable Coupler
Overview
The Axis 5503-272 is a compact inline coupler designed to extend network cable runs in surveillance and infrastructure deployments where space is tight. Unlike bulky connector panels or full-size patch blocks, this slim coupler lets you join two network cables end-to-end without adding significant footprint — a practical concern when you're routing cables through cable trays, conduits, or wall-mounted cable management systems where every millimeter counts. Tight integration spaces are common in warehouse automation, retail surveillance networks, and server room upgrades where cable runs need to span longer distances than a single run allows.
Key Features
- Slim, Compact Form Factor: Low-profile design minimizes space requirements in cable trays, conduits, and wall-mounted management systems — critical in confined installations where standard couplers create routing bottlenecks.
- Tool-Free Installation: No screwdrivers, crimpers, or specialized equipment needed — simply insert and connect. Reduces on-site labor time and eliminates a point of failure common with screw-terminal designs.
- Axis Network Cable Compatibility: Engineered to work reliably with Axis surveillance network cables, ensuring consistent signal integrity across your cable plant without unpredictable impedance mismatches.
- Durable Construction: High-quality materials and precision engineering provide reliable long-term performance in typical indoor environments — no premature failure or connection drift during thermal cycling.
- RJ-45 Standard Connectivity: Uses industry-standard RJ-45 connectors, allowing integration into mixed-vendor IP camera and network infrastructure without proprietary adapters.
Integration & Compatibility
The 5503-272 works with any standard RJ-45 network cable, making it suitable for both Axis and third-party network video recorders and switches. Common deployment scenarios include extending cable runs from a PoE switch to a remote camera location, linking multiple patch panels in distributed surveillance facilities, and managing cable transitions in wall-mounted and overhead routing systems. Since it maintains standard Ethernet electrical characteristics, there is no performance penalty — data rates and PoE delivery are not degraded by the coupler itself.
When to Choose a Different Model
If your installation requires weatherproof outdoor cabling or needs to withstand vibration and shock in mobile or industrial environments, look for ruggedized outdoor-rated couplers with sealed connectors and strain relief. If you need to consolidate multiple camera feeds into a single junction point, consider a structured network cable management panel instead. For temporary or frequently reconfigured test installations, standard full-size patch cords and passive splitters may be simpler than permanent couplers.
Frequently Asked Questions
Q: Will the Axis 5503-272 coupler reduce network speed or PoE power delivery?
A: No. RJ-45 couplers are passive inline connectors that maintain standard Ethernet electrical characteristics. Network speed and PoE power flow through unchanged, assuming the connected cables meet the required specifications (Cat5e minimum for PoE, Cat6/6A for higher bandwidth).
Q: Is the 5503-272 suitable for outdoor or wet environments?
A: No. This coupler is rated for indoor use only. Outdoor installations require weatherproof couplers with sealed RJ-45 connectors and IP67 or higher environmental ratings.
Q: Can I use the 5503-272 to extend cable runs in cable trays?
A: Yes. The compact slim design is specifically intended for cable tray and conduit routing where space constraints exist. Tool-free assembly makes on-site installation straightforward.
Q: Do I need a power source or special configuration for the coupler?
A: No. The 5503-272 is a passive device requiring no power, firmware, or configuration. Insert and connect.
Q: What is the warranty on the Axis 5503-272?
A: Refer to the manufacturer warranty information provided with your purchase or contact an authorized Axis reseller for specific warranty terms.
Q: Will the coupler work with non-Axis network cables?
A: Yes. The 5503-272 uses standard RJ-45 connectors and is compatible with any Ethernet network cable that meets your installation's electrical requirements (Cat5e, Cat6, Cat6A, etc.).
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 5503-272 solves a real problem in surveillance deployments: cable routing bottlenecks in space-constrained installations. Slim couplers are often overlooked in network design, but they're essential when you're building multi-camera surveillance systems in retail, warehouses, or server facilities where cable trays and wall conduits leave minimal clearance. The tool-free, passive design keeps installation straightforward and eliminates a common failure mode — improperly seated screw-terminal connectors that work loose over thermal cycles.
Technical Highlights:
- Compact Form Factor: Specifically engineered to minimize space consumption in cable trays and conduit runs — a real constraint in confined environments where standard full-size couplers create routing friction.
- Passive RJ-45 Design: No signal degradation, no PoE loss, no power draw. Maintains full Ethernet electrical characteristics across the connection point.
- Tool-Free Assembly: No crimpers, no screwdrivers — on-site installation takes seconds. Reduces labor cost and eliminates field-termination errors.
Deployment Considerations:
- The 5503-272 is indoor-only; outdoor or harsh-environment cable extensions require weatherproofed connectors and sealed enclosures.
- This is a passive coupler — it does not regenerate or repeat signals. For very long cable runs exceeding 300 feet total, consider powered Ethernet extenders or fiber optic conversion instead.
- Standard RJ-45 couplers have minimal mechanical strain relief; avoid sharp bends immediately adjacent to the connector if vibration or repeated flexing is present.
Deploy the 5503-272 when you need reliable, compact inline cable extension in controlled indoor environments — surveillance network expansion in retail and warehouse facilities, server room upgrades, and distributed camera systems where cable-tray routing and space efficiency are practical constraints.
