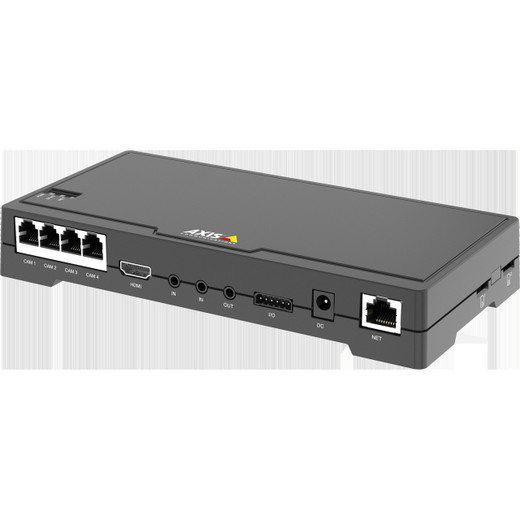

Axis FA54 4-Channel Multi-Sensor Main Unit for Modular Cameras
The Axis FA54 Main Unit (model 0878-004) is a professional-grade hub designed to centralize and manage up to four discrete Axis FA Sensor Units in a single integrated system. This modular architecture enables flexible, scalable surveillance deployments across indoor environments—from retail stores and offices to banks and corporate facilities—without the complexity of traditional multi-camera installations.
Key Features
- Supports up to 4 Axis FA Sensor Units in a single main unit
- 1920×1080 (2MP) HDTV resolution at 25/30fps from all connected sensors
- Forensic Wide Dynamic Range (WDR) for superior image clarity in varied lighting
- H.264 video compression for efficient bandwidth and storage management
- Two-way audio support with dedicated audio detection capabilities
- 4 Alarm Input/Output channels for integrated security event management
- Power over Ethernet (PoE) and 12V DC power input options
- AXIS Camera Application Platform (ACAP) compatible for extensible functionality
Technical Specifications
Video & Audio: The FA54 delivers simultaneous 1080p video streams from all four connected sensor units with H.264 compression. Forensic WDR technology ensures detail capture in challenging lighting conditions. Integrated two-way audio and audio detection provide communication and event triggering capabilities.
Connectivity & Security: Wired connectivity via PoE simplifies installation while reducing power infrastructure costs. IEEE 802.1X network authentication and HTTPS encryption protect against unauthorized access. Digital I/O and 4 alarm input/output channels enable seamless integration with third-party security systems and triggers.
Power & Thermal: Maximum power draw of 30W (average 14W) with flexible power input—12V DC or PoE—supports varied deployment scenarios. Operating temperature range of 0–45°C ensures reliable performance in standard indoor environments.
Applications
- Multi-location retail surveillance with discrete sensor placement
- Office and corporate building security with audio intercom functionality
- Financial institutions requiring high-resolution forensic detail
- Facilities where modular camera expansion is anticipated
- Environments demanding bandwidth efficiency and low storage overhead
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The FA54 represents a paradigm shift in modular surveillance design. By centralizing video processing, audio handling, and alarm logic in a single main unit, it eliminates redundant hardware costs while maintaining the flexibility of distributed sensor placement. The combination of Forensic WDR and H.264 compression addresses two critical pain points: image quality in unpredictable lighting and operational cost management in storage-constrained environments.
ACAP compatibility ensures future-proofing through software-driven feature expansion, while dual power input (PoE + DC) accommodates legacy and modern infrastructure. The four-channel alarm I/O is particularly valuable for organizations integrating access control, motion triggers, and multi-zone event logging. For small-to-mid-market deployments seeking professional-grade video surveillance without enterprise complexity, this unit delivers exceptional value.
