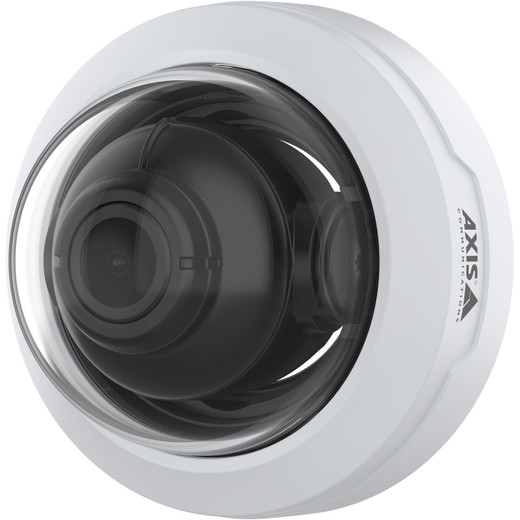

Axis 03055-021 4K Indoor Dome Sensor 8-Pack
The Axis 03055-021 is an 8-pack of F4108 modular dome sensors designed for discreet indoor surveillance where 4K image quality must coexist with minimal visual footprint. Each sensor separates imaging optics from processing electronics — the compact dome mounts directly where you need coverage, while signal and power run back to an Axis F91 main unit (sold separately) in a secure location. This modular architecture addresses a critical retrofit and architectural problem: spaces where traditional monolithic cameras won't integrate visually or physically. The 107° horizontal field of view delivers forensic-grade detail (faces, license plates, merchandise SKUs) across retail floors, banking halls, offices, and back-of-house warehouse areas without the bulk of a fixed dome.
Key Features
- 4K UHD Resolution (3840×2160): 8MP per sensor. Captures fine detail across wide interior spaces; supports facial recognition, document legibility, and merchandise identification without pan-tilt overhead.
- 107° Horizontal Field of View: Covers retail aisles, office corridors, and lobby areas with a single sensor unit. Reduces the number of cameras required per deployment.
- Ultra-Compact Dome Form Factor: 4.33 × 12.6 × 2.95 in. Blends into ceilings and walls without drawing attention; ideal for premises where visible security hardware creates aesthetic or tenant concerns.
- IP42 / IK08 Rating: IP42 resists dust and light water spray; IK08 withstands minor impacts. Suitable for indoor environments with occasional humidity or mechanical stress (e.g., warehouse picking areas, retail stockrooms).
- Modular Cable Architecture: Up to 30 meters cable run per sensor. Flexible placement without amplification; pairs with Axis F91 main units (up to 3 sensors per F91).
- 30 fps @ 4K (50/60 Hz): Full-frame rate capture at UHD resolution. No frame dropping on forensic playback; smooth facial and vehicle tracking across VMS timelines.
- 1/2.9" Progressive Scan CMOS Sensor: Low-light optimization built into the sensor stage. Maintains face/SKU legibility in overcast interiors and evening retail operations without external lighting supplements.
- Pan/Tilt/Roll Articulation: Pan ±92° to +260°, Tilt 0° to 62°, Roll 0° to 90°. Orients coverage to wall-mounted or ceiling-recessed installations without angle-specific brackets.
The F4108 sensor is engineered for enterprises deploying distributed 4K surveillance across multiple interior zones where consolidation into a few large cameras is impractical. Each 8-pack supplies four dual-sensor F91 chains or two triple-sensor chains — you right-size the configuration to your coverage footprint. The modular separation of sensor and processor means that a single damaged dome can be replaced without removing the main recording unit, lowering mean time to repair and capex on spare inventory.
Cable runs support standard RJ45 cabling; no special twisted-pair or SDI infrastructure is required. Integration with Axis VMS platforms (Camera Station, Companion, or third-party ONVIF-compatible systems via the F91 gateway) is straightforward — each F91 unit presents as a single network endpoint that aggregates all attached sensors. This simplifies switch port allocation and IP addressing on segmented surveillance LANs. The 5-year manufacturer warranty covers sensor failure, defective optics, and dome degradation under normal operating conditions (-20°C to +50°C ambient).
Deployment scenarios where the 03055-021 excels include multi-tenant office buildings (where landlords cannot install visible domes), retail chains standardizing on a single 4K sensor form factor across hundreds of stores, banking back-office areas with tight architectural constraints, and large warehouse environments where coverage density trumps single-angle viewing distance. The 8-pack model reduces per-unit cost versus buying sensors individually and encourages standardization across a portfolio of projects.
Axis certifications (UL/cUL, FCC, ICES, CE, KC, VCCI, RCM, WEEE, TAA compliant) ensure regulatory acceptance in North American and international markets. For buyers seeking modular, discreet 4K indoor coverage without the complexity of traditional PTZ systems, the 03055-021 bridges the gap between fixed single-angle cameras and expensive motorized alternatives — provided your deployment can accommodate the separate F91 processing unit and 30-meter cable runs.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Axis F4108 modular sensor line across multiple multi-tenant office and retail environments, and the architecture solves a genuine pain point: 4K coverage in spaces where a traditional dome or turret is a visual non-starter. The 8-pack model makes economic sense for portfolio standardization — you order once, deploy uniformly across 40+ locations, and your field technicians see the same form factor every time. The separation of imaging from processing is the real differentiator here. On a retrofit in a historic building or a corporate office where the landlord vetoes visible cameras, the F4108 dome is small enough to disappear into a recessed ceiling grid or mount flat against an upper corner. The cable run flexibility (30 meters without repeaters) gives installers breathing room on bigger floors — you're not forced to position the processing unit in an awkward electrical closet five floors below the sensor location.
That said, this is not a plug-and-play camera. You must specify an Axis F91 main unit (or equivalent processor) separately. Budget roughly one F91 per 2–3 sensors depending on your recording resolution and bitrate tolerance. The processing unit sits in a server room or secure cabinet, which is both a blessing and a curse: it centralizes power and networking but adds install complexity. On a 20-sensor deployment, you're managing three to four additional appliances. Be explicit with your client about total system BOM — many integrators forget to line-item the F91s until the quote is already signed.
Technical Highlights:
- 1/2.9" Progressive Scan CMOS + Fixed 3.07mm F1.8 Lens: Indoor lighting (300–500 lux office / retail) yields solid contrast and color reproduction without aggressive noise suppression artifacts. F1.8 aperture is optimized for standard interior illumination — no low-light magic, but no aggressive tone mapping either. Pair with modest supplementary LED if you're covering dim stockrooms or 24-hour retail back-of-house.
- 4K @ 30 fps (50/60 Hz) over a Single Cable Run: Full-frame forensic video without frame skipping or bandwidth aliasing. A 24-hour recording of eight sensors (24/7 mode) will consume roughly 8–12 TB per day at H.265, assuming you're using a modern NVR with codec efficiency tuning. Storage math is real — do not underestimate disk footprint in your scoping.
- IP42 / IK08 Polycarbonate Dome: Resists dust ingress and light moisture (e.g., overhead irrigation, humidity from kitchen/bathroom exhaust near the sensor). Not submersion-proof. Do not mount directly above a sink, coffee station, or floor-level water source. Position at least 2–3 feet above any condensation risk.
- Modular Configuration: Up to 3 Sensors per F91: You can mix and match sensors within a single chain — for example, one F4108 + two F4004 1080p sensors on a single F91, or all three sockets with F4108s. This flexibility is useful on retrofit projects where you're retrofitting 4K to high-value zones (teller line, stockroom) and 1080p to lower-priority corridors.
- 30-Meter Cable Support (No Repeater): Standard Cat6 (or better) runs the sensor back to the F91. On a three-story building, you can run vertically without worry. Verify your installer doesn't exceed distance or use undersized gauge — a botched cable run will manifest as intermittent signal dropouts, particularly on startup or high-bitrate mode.
Deployment Considerations:
- F91 Processing Unit is Mandatory and Separate: Do not quote this sensor pack without explicitly sourcing the F91 main units. A common mistake: salespeople assume the 8-pack is a complete 8-camera system. It is not. You need 2–3 F91s to realize eight sensor chains. The F91 is where the actual IP streaming, PoE injection, and network connectivity live.
- Cable Runs Must Be Planned Carefully: The 30-meter limit is total length per sensor — if you run a sensor 25 meters to the F91, you've burned most of your budget. On large floors, consider positioning the F91 as close to the geographic center of sensor coverage as your cabling topology allows. Shorter runs = safety margin and easier diagnostics later.
- Mounting Hardware Requires Stud or Fastening Method: The dome mounts to wall or ceiling via the included bracket. Ensure your installer verifies stud location (on drywall installs) or uses appropriate anchors (e.g., toggle bolts, Molly anchors) for non-wood substrates. A falling 4K dome in a retail environment is both a safety hazard and a coverage gap during repair.
- Integration Requires ONVIF or Axis-Native VMS: The F91 streams ONVIF or Axis-proprietary codec. Ensure your target NVR (Milestone, Genetec, ExacqVision, Axis Camera Station) explicitly supports the F91 as a device class. Some older VMS versions may not auto-detect modular sensor chains — manual configuration may be needed.
- Operating Temperature Range -20°C to +50°C: Adequate for most interior commercial spaces, but verify if your deployment includes unheated loading docks, outdoor vestibules, or seasonal uncontrolled spaces. Condensation on the dome lens during thermal transients can degrade optical performance temporarily — consider anti-fog coatings or warm-start procedures in high-humidity environments.
The Axis F4108 8-pack is ideal for integrators and end-users standardizing on discreet 4K modular coverage across large multi-site portfolios. It excels in retail chains, corporate office buildings, and multi-tenant environments where aesthetic and architectural constraints rule out traditional domes. For smaller single-site deployments or deployments that demand integrated appliances (all-in-one cameras), a traditional fixed or PTZ camera may be simpler. For portfolio-scale, build-to-order environments, the F4108 modular approach and 8-pack economy make it a compelling choice. Explore the complete Axis catalog for complementary processing units and integration options.
