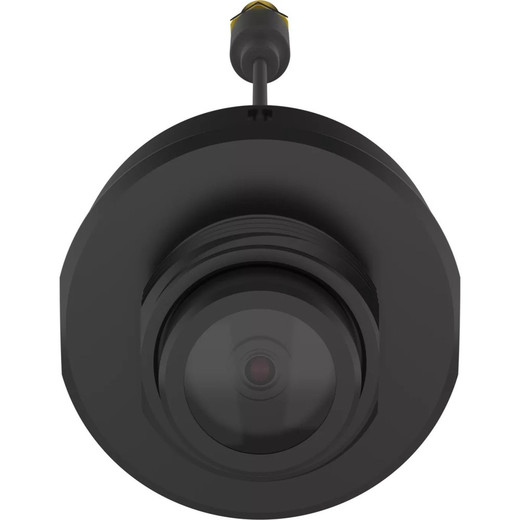

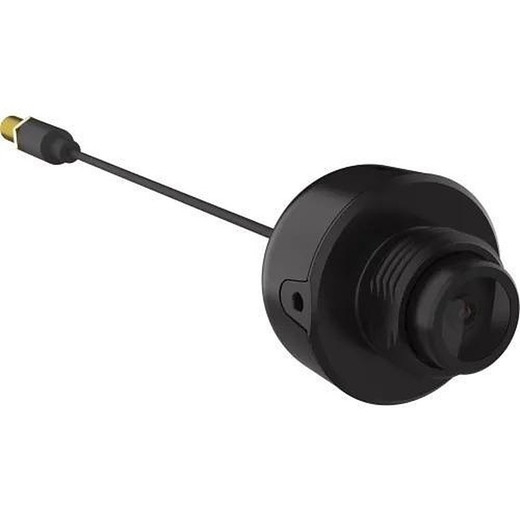

Axis 03056-021 F2108 Standard Sensor Module 4K
The Axis 03056-021 is a modular 4K sensor unit built exclusively for Axis F91 main units. This architecture matters if you have F91 infrastructure already in place and need to add camera coverage without capital replacement of the processing core. The modular design decouples the sensor from the intelligence and networking stack, reducing redundant hardware investment when scaling from a handful of cameras to dozens. You pay for sensors, not duplicate processors and interfaces.
Key Features
- 8MP 4K Resolution (3840×2160) at 25/30 fps — Captures the detail needed for facial recognition and license-plate legibility in forensic post-incident review. Full-frame 4K at 25/30 fps keeps motion tracking smooth without dropping resolution when subjects move quickly through the frame.
- 1/2.9" Progressive-Scan CMOS Sensor, 1.4µm Pixels — Smaller pixel pitch keeps read noise low, delivering clean imagery in mixed indoor lighting without the smear or blooming you'd see in larger-pixel sensors under fluorescent or LED fixtures. Compact pixel geometry is what lets 8MP fit the modular form factor.
- Fixed 3.07mm F1.8 Lens, 0.7m Minimum Focus — Wide angle suits interior hallways, retail floors, and reception areas. The 0.7m close-focus distance means you can monitor activity directly beneath or very close to the mount—no dead zone immediately under the camera.
- Integrated 850nm IR Night Vision, 0.7m Range — Delivers 24/7 usable monochrome imagery in unlit or semi-enclosed spaces without external lighting. The 0.7m illumination range is adequate for interior monitoring; exterior perimeter or outdoor deployments will require auxiliary IR emitters or a specialized longer-range module variant.
- 0.9W Typical Power Draw — Running under 1 watt means you can power multiple 03056-021 modules from modest power budgets on the F91 main unit. When deploying dozens of sensors across a facility, this efficiency directly reduces operational electricity costs and eliminates the need for external power supplies at each sensor location.
- Adaptive Exposure Control: 1/7500s to 1s Shutter Range — Fast shutter suppresses motion blur in busy retail or office environments; slow shutter pulls detail from dim scenes. The exposure algorithm responds frame-by-frame to lighting changes without manual tuning—deploy and forget.
- Operating Temperature -20°C to 50°C (-4°F to 122°F) — Handles unheated storage areas, climate-controlled offices, and equipment rooms with normal seasonal swings. Do not deploy this module in true outdoor cold (below -20°C) or industrial freezer environments—those require environmental hardening not present here.
- Modular F91 Integration — Connects via standardized connectors to any Axis F91 main unit. Scaling from two sensors to twenty means adding sensor modules, not replacing F91 cores. Verify F91 firmware is current before installing the 03056-021; Axis releases F91 software updates to support new sensor variants.
Integration & Compatibility
The 03056-021 does not function standalone—it requires an Axis F91 main unit for processing, video encoding, networking, and power. This dependency is intentional. The modular architecture centralizes complexity on the F91, keeping each sensor lightweight and power-efficient. Before deployment, confirm F91 firmware version supports the 03056-021; consult the current F91 release notes or contact the system integrator managing the F91 deployment.
Mounting is flexible: wall and ceiling orientations are both standard. Position the module to avoid direct IR reflection off glass, polished metal, or mirror surfaces near the lens—reflections can wash out the image. Consult installation documentation for proper orientation guidance specific to your mounting surface.
Regulatory compliance is comprehensive for global deployment: FCC, CE, UL/cUL, KC, and RCM certifications; CISPR 35 and CISPR 32 Class A EMC standards minimize interference with wireless systems and medical equipment in sensitive environments. WEEE and TAA compliance support procurement in regulated sectors and government-controlled supply chains.
When to Choose a Different Model
If you need longer IR range for outdoor or perimeter monitoring, a specialized outdoor variant or a higher-power IR module in the Axis F-series lineup may suit better. The 0.7m IR range on the 03056-021 is strictly interior-focused. Similarly, if you require panoramic or multi-sensor coverage from a single unit, explore the Axis modular sensor family's wide-angle or multi-aperture variants. For standalone IP camera deployments (non-F91 architecture), the 03056-021 is not applicable—standard Axis IP cameras would be the alternative.
Frequently Asked Questions
Q: Can the Axis 03056-021 work without an F91 main unit?
A: No. The 03056-021 is a modular sensor and requires an Axis F91 main unit for processing, encoding, networking, and power delivery. It cannot function as a standalone camera.
Q: What is the maximum IR illumination range?
A: The integrated 850nm IR illuminator has a practical range of 0.7 meters. This is suitable for close-range interior monitoring; outdoor or long-distance perimeter use requires auxiliary IR lighting or a different sensor module.
Q: Is the Axis 03056-021 suitable for outdoor deployment?
A: The operating temperature range (-20°C to 50°C) supports mild climates, but the module lacks outdoor environmental hardening (weatherproofing) and the IR range is interior-focused. For true outdoor perimeter monitoring, choose an outdoor-rated outdoor IP camera or an outdoor-variant modular sensor from the Axis F-series.
Q: Does the Axis 03056-021 support video compression standards?
A: Compression (H.265, H.264, MJPEG) is handled by the F91 main unit, not the sensor module itself. The 03056-021 delivers raw image data to the F91, which then encodes it. Consult the F91 specifications for supported codecs.
Q: What are the power requirements?
A: The 03056-021 draws 0.9W typical power. It is powered by the F91 main unit via the modular connector—no separate power supply is required.
Q: Can I mix the Axis 03056-021 with other sensor modules on the same F91?
A: Yes, the F91 modular architecture supports multiple sensor types attached to a single main unit, provided the F91 firmware is current and supports all sensor variants in use. Verify compatibility in the F91 release notes.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 03056-021 is the right choice when you've already committed to F91 infrastructure and need to scale sensor density without capital replacement of the processing core. At 0.9W per module, power budgets stay predictable even across a 10-, 20-, or 40-camera rollout. The 8MP 4K resolution and 1.4µm pixel geometry deliver usable detail indoors where most modular deployments happen—retail, offices, warehouses—but respect the 0.7m IR range constraint before specifying it for outdoor or perimeter work.
Technical Highlights:
- 0.9W Power Draw: Enables dozens of sensors on modest F91 power budgets—eliminate per-camera power supplies and the cost/complexity of distributed DC infrastructure at each mount location.
- 8MP 4K (3840×2160) at 25/30 fps: Delivers facial recognition and license-plate resolution without the frame-rate sacrifice you'd accept on older 2MP or 5MP fixed-lens modules; motion tracking stays fluid in busy retail or reception areas.
- 1/2.9" CMOS, 1.4µm Pixels: Compact sensor geometry keeps read noise low under indoor fluorescent/LED lighting, avoiding the wash-out or blooming that plagues larger-pixel sensors in these conditions; this is the trade-off between pixel count and low-light performance, and it's balanced here for indoor use.
- 0.7m Minimum Focus, Fixed 3.07mm F1.8: Wide field of view and close focus eliminate dead zones directly beneath mounts—critical in retail theft prevention and reception monitoring where suspects move within arm's reach of the camera.
Deployment Considerations:
- F91 firmware must be current before integrating the 03056-021. Older F91 firmware may not recognize or properly power the module. This is a gotcha—always verify compatibility before shipping hardware to a site.
- The 0.7m IR range is interior-only. If your deployment includes outdoor corridors, loading docks, or perimeter zones, auxiliary IR emitters or a different sensor variant is mandatory. Do not assume 0.7m is sufficient for anything beyond 10 feet indoors.
- Modular means you're locked into the F91 ecosystem. If you later need to migrate to standalone cameras or a different platform architecture, you cannot reuse these sensors. Plan for that constraint in long-term facility upgrades.
Deploy the 03056-021 in retail loss-prevention rollouts, multi-floor office builds, and warehouse monitoring where interior coverage and low operational power are priorities and F91 cores are already embedded. Skip it for outdoor perimeter work, freezer/cold-storage environments, or shops running non-F91 camera platforms.
