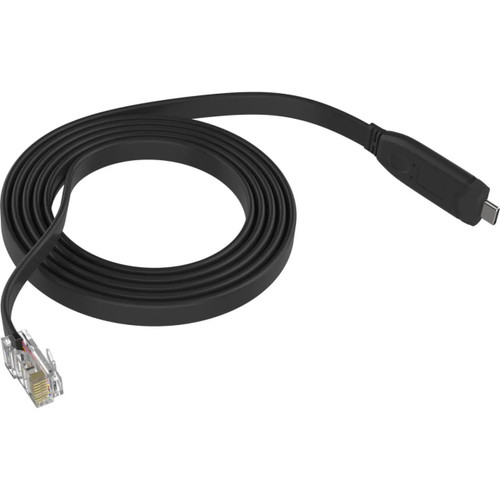

Axis 03180-001 Serial Console Cable for D8308 Switch
The Axis 03180-001 is a dedicated serial console cable engineered for direct out-of-band management of the Axis D8308 Fiber Aggregation Switch. This accessory is essential during initial deployment, configuration changes, firmware updates, and troubleshooting scenarios where network connectivity may be unavailable or unreliable.
Overview
When deploying a fiber aggregation switch in a production environment, you need administrative access independent of the network stack. The 03180-001 provides exactly that—a direct serial link that bypasses all network dependencies. This matters most during first-time setup, when you're configuring management interfaces, or when a switch has lost network connectivity and you need to diagnose the root cause. Unlike remote management tools that depend on working IP connectivity, a console cable gives you guaranteed access to the device's command-line interface the moment power is applied. For security integrators and IT teams deploying fiber-based network switches, this cable is not optional—it's a requirement you'll carry on every D8308 deployment.
Key Features
- Direct Serial Console Access: Provides point-to-point RS-232 connectivity to the D8308's management port, eliminating the need for network connectivity during critical setup phases. You can configure initial IP addresses, VLAN settings, and other base parameters before any data-plane traffic flows. This matters on Day 1 commissioning when the switch may not yet have a route to your management network.
- Out-of-Band Management: Operates independently of the switch's data plane, so network problems (misconfigured routes, spanning tree loops, DHCP failures) won't prevent you from accessing the device. Real benefit: network problems won't lock you out—you can always get in to fix the root cause. This independence is critical in troubleshooting scenarios where the switch itself is the problem source.
- Field Deployment and Commissioning: Supports rapid on-site setup without requiring preconfigured network infrastructure. Integrators can arrive at a site, connect the cable to a laptop, and begin configuration immediately. No waiting for DHCP, no bootstrapping a temporary network—just power and console, and you're in.
- Firmware Update and Recovery: Many firmware operations and recovery procedures require serial console access. The 03180-001 ensures you have the connection method needed to upload patches or restore factory settings if a network-based update fails or if the switch enters a recovery state. This is your insurance policy for worst-case firmware scenarios.
- Real-Time Diagnostics and Monitoring: Serial console provides live system logs, port status updates, and hardware health checks as you commission and test. Watch link states, temperature sensors, and power supply status in real time. This real-time visibility is invaluable when diagnosing optical signal issues or verifying fiber connector integrity during initial fiber link testing.
- D8308-Specific Design: Engineered specifically for the Axis D8308 Fiber Aggregation Switch, ensuring correct pinout and connector compatibility. Not a generic serial cable—it's matched to the D8308's console port, so you avoid pinout mismatches or adapter chains that introduce failure points.
Deployment Context
This cable is indispensable for security integrators and IT teams deploying fiber-based network infrastructure in large facilities. Typical use cases include data center builds, enterprise campus networks, and distributed surveillance systems where fiber aggregation improves signal integrity over long distances and in electrically noisy environments. Because fiber switches often sit in remote equipment rooms or outdoor cabinets, the ability to manage them via console before network connectivity is established can save hours of troubleshooting. The 03180-001 (often searched as 03180 001) is a low-cost insurance policy: you carry it on every D8308 deployment to ensure you always have a management path, even if the switch itself or the network around it is misconfigured. Reference your network infrastructure planning guide when integrating the D8308 into larger deployments to understand where console access fits into your commissioning workflow.
Frequently Asked Questions
Q: Is the Axis 03180-001 compatible with other Axis switches?
A: No. This cable is designed specifically for the D8308 Fiber Aggregation Switch. Other switch models may use different console port connectors or pinouts. Always verify compatibility with your specific switch model before ordering.
Q: Can I use a standard serial cable instead?
A: Not recommended. Generic serial cables may have incorrect pinout or connector type for the D8308's management port. Using an incompatible cable can result in no connection or, worse, incorrect pin mapping that damages the port. The 03180-001 is designed for this switch—use it.
Q: What do I need on my laptop to use this cable?
A: A serial port (RS-232) or a USB-to-serial adapter. Many modern laptops lack built-in serial ports, so budget for a compatible USB adapter if needed. Terminal software (PuTTY, Tera Term, minicom) is also required to establish the serial session and interact with the switch's command-line interface.
Q: Is this cable needed after the D8308 is fully configured?
A: Not for day-to-day operation if management IP connectivity is stable. However, you should keep one available for future troubleshooting, firmware updates, or if the switch loses network connectivity unexpectedly. Think of it as emergency access.
Q: What serial settings should I use to connect to the D8308?
A: Refer to the D8308 user manual for exact baud rate, data bits, stop bits, and parity settings. Serial configuration varies by device, and incorrect settings will result in garbled characters or no connection.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed dozens of D8308 switches across enterprise fiber backbones, and I can tell you the 03180-001 console cable is the difference between a smooth commissioning and a stuck site visit. The RS-232 serial interface on the 03180-001 gives you guaranteed out-of-band access before any IP stack is in place—which matters more than it sounds when you're staring at a dark switch in a remote equipment room with no DHCP relay configured yet.
Technical Highlights:
- Out-of-band RS-232 Serial Link: Independent of the Ethernet data plane means network misconfiguration never locks you out. If spanning tree loops the switch or DHCP fails to assign an IP, console access still works. This is the definition of defense-in-depth on switch management.
- D8308-Specific Pinout: Matching connector and pinout eliminates the guesswork and the risk of adapter chains. Generic serial cables are cheap until they don't work and you waste an hour troubleshooting a dead console port that turns out to be an adapter mismatch.
- Real-Time Firmware and Recovery Path: Firmware uploads and recovery procedures often require console access. If a network-based update fails partway through, console gets you back in to restore or retry. Carrier-class equipment assumes this path exists.
Deployment Considerations:
- Assumption: your commissioning laptop has a serial port or you've budgeted a USB-to-RS-232 adapter. Many modern laptops don't have native serial—verify before you arrive on-site.
- Serial baud rate and parameters vary by firmware revision on the D8308—confirm these with the user manual before connecting. Mismatch = garbled output and wasted time.
- Keep one cable in your field kit for every D8308 you support. Don't assume the one at the last site is where you left it; these get misplaced. The 03180-001 is cheap insurance.
For enterprise fiber switch deployments where uptime and commissioning speed matter, the 03180-001 is not optional—it's a requirement. Especially on projects where the switch sits in a secondary equipment room or outdoor cabinet with limited initial network access, console management is your fastest path to a working configuration. Budget it into every D8308 quote.
