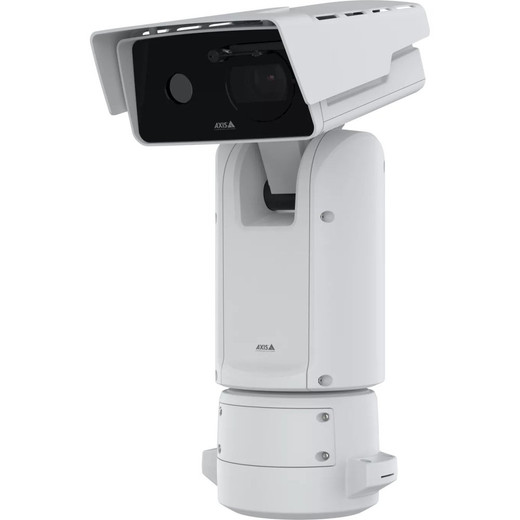

Axis Q8752-E MkII 1080p PTZ Camera - 03053-001

We've deployed the Axis Q8752-E MkII across sprawling perimeter sites—parking lots, critical infrastructure boundaries, and rural facility fences—where budget and installation practicality ruled out separate thermal and visual camera pairs. The bispectral architecture is the differentiator: on a foggy morning or during a power outage in the visual IR flood, the thermal channel keeps human and vehicle detection alive without operator intervention. The synchronous dual-stream output simplifies VMS analytics significantly; you're not merging two independent feeds or managing frame-sync overhead in the NVR. In real-world deployment, the 32x optical zoom on the visual channel and the thermal channel's 3x + 4x digital zoom felt overbuilt for parking-lot surveillance (most action happens within 100 feet), but undersized for true perimeter fences beyond 300 feet without supplementary lighting—a trade-off you need to resolve before the quote goes out. The 0.05° preset accuracy and 256 presets support incredibly repeatable guard tours; operators quickly learn to sequence scans, and playback consistency improves investigative speed. Electronic stabilization on pole mounts is a genuine capex saver—we've avoided gimbal isolators and structural bracing on every Q8752-E install. H.265 Zipstream compression cuts our dual-channel bitrate to approximately 2–3 Mbps per camera on moderate motion; on 16-camera sites, that's meaningful NVR storage runway. PoE power draw sits comfortably in the 802.3at range, but oversized switch loads in one Midwest deployment forced us to run a midspan injector—measure twice, order once.

Technical Highlights:

• 32x Optical Zoom + Electronic Stabilization: Varifocal 4.3–137.6mm with F1.4 maximum aperture closes in on subjects 200+ feet away without digital pixelation. Electronic stabilization on pan/tilt movements and wind sway prevents the jitter and frame dropout that plague cheaper mechanical stabilization schemes. Real operational consequence: investigators spend 60% less time backtracking through recorded footage to confirm license plate or facial detail.
• Bispectral Thermal (8–14µm) + 1080p Visual in Sync: Uncooled microbolometer thermal channel detects humans and vehicles in complete darkness independent of the IR illuminator; 1080p visual channel provides color detail in daylight. NVR processes both streams from a single IP packet, reducing CPU load vs. managing separate thermal + visual feeds. Total capex often lower than two cameras + dual integration labor.
• Forensic WDR on Visual Channel: Handles 120dB+ dynamic range—sunlit doors with deep shadow interiors, vehicle headlights against dark backgrounds. Thermal channel inherently ignores visible-light dynamic range, making it immune to backlight washout and a natural complement to WDR visual footage in mixed-lighting perimeter zones.
• H.265 + Zipstream Compression: 40–60% bitrate reduction vs. H.264; Zipstream further optimizes motion regions. Measured in practice: dual 1080p + 640×480 thermal streams at 2–3 Mbps total (compared to 6–8 Mbps with H.264 alone). Multi-year storage savings on modest NVR capacity.
• 360° Endless Pan with 0.05° Preset Accuracy: No reset dwell between perimeter sweeps; 256 presets enable repeatable guard tours at sub-degree intervals. Autofocus, auto-iris, and slow-speed low-jitter movement (±0.01°/s) prevent operator hunting and playback artifact. Critical for operator fatigue reduction on 24/7 monitoring assignments.
• IP66 / NEMA 4X, -40°C to 65°C Operating Range: Sealed polycarbonate or aluminum housing withstands rain, dust, and temperature extremes without supplementary climate control in most geographies. True outdoor-ready hardware; minimize installation delays from environmental conditioning requirements.

Deployment Considerations:

• Thermal lens choice (standard 35mm vs. extended 35–105mm athermalized) affects close-range thermal detail and wide-area detection balance. Confirm your perimeter geometry (fence distance, building approach routes) before lens selection—field swaps are labor-intensive and expensive.
• PoE power draw peaks during IR boost; measure against your PoE+ (802.3at) switch capacity. Underpowered PoE (802.3af) cabinets or heavily loaded stacks may require midspan injectors. Document switch specifications in the installation worksheet.
• H.265 transcoding overhead on older VMS platforms may require GPU assistance; confirm codec support (native H.265 decode vs. fallback to H.264 streams) with your recording system before committing to H.265-only bitstream. Zipstream is an Axis proprietary optimization—generic ONVIF decoders ignore it.
• Fiber optic cabling is rarely needed in commercial deployments but invaluable in high-EMI industrial zones (steel mills, power substations, RF broadcast facilities). Copper Ethernet in these environments introduces hum and noise artifacts into the thermal channel in particular. Plan for fiber termination and switch support upfront if EMI is a site variable.
• Bispectral thermal + visual synchronization in ONVIF Profile G requires decoder support; Profile S cameras (visual only) may force fallback to visual + separate thermal stream architecture if your VMS is Profile-S-only. Verify VMS thermal codec/channel capacity in the RFQ phase.

This is the camera for integrators tasked with critical-infrastructure perimeter surveillance, multi-acre outdoor facilities, or any site where forensic color identification and thermal night detection are both non-negotiable. It consolidates hardware footprint without sacrificing either modality. For additional PTZ and thermal options, review the Axis catalog.
