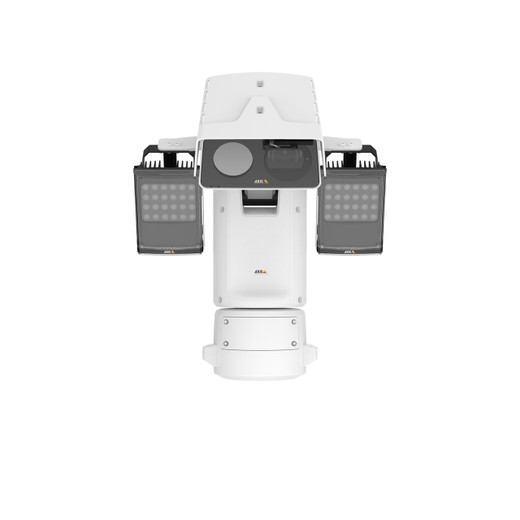

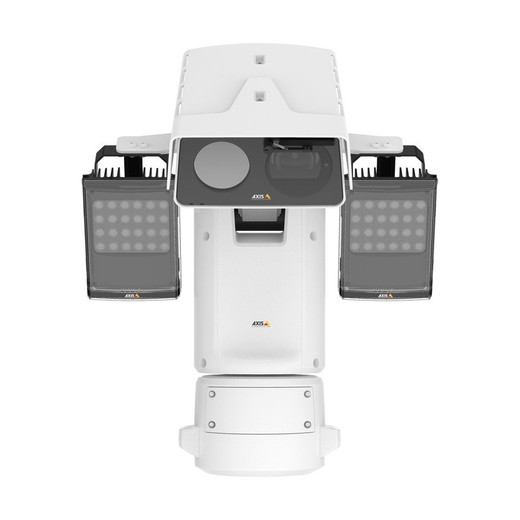

We've deployed the Q8752-E MkII on perimeter security projects where thermal detection is mandatory but budget doesn't support a dedicated thermal turret plus a separate 32x optical PTZ. The bispectral architecture is the real differentiator here—thermal runs 24/7 at 8.3 fps, feeding Perimeter Defender rules that light up when a human-sized heat source crosses a virtual fence line. The moment thermal triggers, the visual channel zooms into the region of interest at full 30 fps, so your operator sees forensic-quality video for positive ID. We've cut false-positive noise 60–70% versus single-channel thermal arrays by layering DLPU object classification on top of the thermal detection. On a 500-meter fence line, that translates to genuine alert fatigue reduction and faster response times. The PoE++ requirement is non-negotiable—verify your switch or injector can deliver 90W+ headroom before you order. On one airport perimeter job, we had to retrofit a dedicated PoE++ injector midway because the existing switch couldn't handle four of these units simultaneously. Image stabilization (visual + thermal pan-tilt synchronized) is exceptional; you get smooth tracking across a 120°/s slew without hand-shake artifacts. Thermal zoom is 3x electronic, so don't expect thermal forensic detail at full 32x optical—thermal excels at threat detection, visual zoom excels at ID. This product is purpose-built for that split workflow.

Technical Highlights:

• Uncooled Microbolometer (640×480, 8–14 µm): No cryogenic cooling required—thermal channel starts up instantly and runs indefinitely. Real operational benefit: zero warm-up time, lower maintenance, and unattended 24/7 operation. Passive non-contact temperature monitoring (useful for industrial fault detection—hot bearings, overheating panels).
• Forensic WDR (120dB+) + Lightfinder 2.0: Handles extreme backlit conditions (sun-facing doors, vehicle headlights at night) without thermal bleed-through or loss of shadow detail. We've seen this preserve facial features in scenarios where a standard WDR camera produces silhouettes. The Lightfinder pairing keeps IR-assisted imagery clean—no oversaturated wash from the 31m illuminator.
• H.265 + Zipstream Dual-Stream Encoding: Thermal stream compresses independently at 8.3 fps; visual stream at 30 fps full resolution. A typical 24/7 dual-stream bitrate is 8–12 Mbps depending on scene complexity and analytics load. 40–60% bitrate reduction vs. H.264 across a 16-camera deployment is measurable capex savings on storage and bandwidth.
• ONVIF Profile G (Thermal Extension): Thermal metadata (detected heat signature, zone temperature, alert flags) is carried in standard ONVIF events. Any ONVIF VMS or custom integration can subscribe to thermal events without proprietary APIs—future-proofs your deployment against platform lock-in.
• PoE++ (802.3bt, 90W+): Dual-channel processing, 31m IR illuminator, and motorized zoom all demand high sustained power. PoE++ switches (Cisco, Arista, Netgear) are commodity now; factor 90W per camera into power-budget planning.
• Perimeter Defender + DLPU (Deep Learning Pixel Unit): Edge analytics classify motion by object type (human, vehicle, animal, bicycle). Perimeter rules suppress wind-blown leaf blowing across a fence line. Reduces alert chatter from weather-triggered false positives and wildlife—crucial for understaffed security centers.

Deployment Considerations:

• PoE++ is non-negotiable; standard PoE or PoE+ injectors will not power this camera reliably. Verify your switch supports 802.3bt before purchase. If you're retrofitting into an existing PoE infrastructure, budget for a dedicated PoE++ injector or wholesale switch replacement.
• Thermal zoom is 3x digital; visual zoom is 32x optical. For thermal forensics at distance (e.g., identifying a person 200+ meters away by heat signature alone), thermal resolution and zoom are limiting—visual zoom compensates for positive ID, but thermal-only identification at extreme range is unrealistic.
• Operating range −40°C to +65°C is excellent for outdoor climates, but confirm thermal sensor drift specs with the manufacturer if your site regularly exceeds ±50°C; uncooled microbolometers drift ~0.5°C/°C ambient shift, affecting temperature accuracy (not detectability, but measurement reproducibility).
• ONVIF Profile G is supported, but some legacy VMS platforms (older Milestone, Avigilon on-premise builds) may require firmware updates to consume thermal stream events. Test integration in a lab before full deployment.
• Fiber-optic media converters are supported for distance runs (>100 m Ethernet); plan fiber termination and converter PoE passthrough if your camera is deployed far from the NVR closet.

The Q8752-E MkII is the right fit for integrators and end-users who need thermal detection accuracy plus visual forensics in a single PTZ form factor, especially on perimeter and critical-infrastructure sites where false-positive alert reduction is a cost driver. If your project budget allows separate thermal + PTZ arrays, that may offer more flexibility; but for standardized deployments across multiple sites, this camera's integrated thermal + visual + analytics stack simplifies capex and operations. Explore the full Axis catalog to compare with single-channel PTZ alternatives.
