Axis 03048-001 TQ1819-E Box Camera Housing IK10 IP66

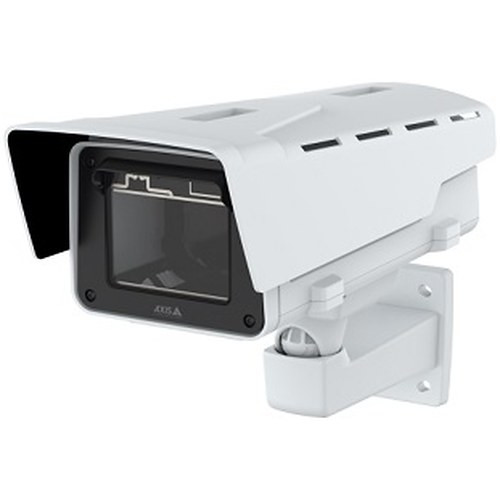

The Axis 03048-001 is a ruggedized outdoor enclosure engineered to house Axis Q17 and P13 Series box cameras in environments where both weather and physical threats are real constraints. This is an accessory housing, not a standalone camera — you select and install a compatible Axis box camera inside. The combination of IP66/IP67 sealing with IK10 impact resistance means the enclosure itself survives driving rain, dust infiltration, and deliberate strikes, which separates this choice from generic surface-mount boxes used in mild climates. If your deployment is perimeter fencing, industrial yards, border checkpoints, or critical infrastructure sites where camera durability is non-negotiable, the 03048-001 eliminates weather and vandalism as failure modes.
Environmental Protection
IP66 and IP67 ratings seal out dust and direct water jets — no fogging, no corrosion pathways along cable runs. This matters because a single water ingress failure on a 24/7 surveillance system can cascade into days of downtime. The IK10 impact rating (equivalent to 134 mph hurricane-force winds or deliberate strikes) protects the optics and internal camera against both accidental damage and intentional tampering. On perimeter and border sites where vandal resistance is a compliance requirement, this spec translates directly to uptime and reduced replacement cycles.
The carbon nanotube window heater maintains optical clarity in sub-zero climates without fogging — critical for deployments in northern regions where thermal cycling causes condensation on unheated optics. The integrated exhaust fan prevents internal moisture buildup in high-humidity environments (coastal, tropical, or high-water-table sites). Together, these active thermal management features extend the internal camera's sensor lifespan by preventing thermal stress and condensation-induced corrosion. The operating temperature range of −40°C to +60°C (−40°F to +140°F) eliminates the need for secondary enclosures or climate-controlled boxes on cold or desert installations — a direct cost and installation-labor savings. A removable sunshield reduces glare and optical thermal stress on the internal sensor, extending useful life in direct sunlight deployments.
Power & Connectivity
The 03048-001 draws power via PoE+ (IEEE 802.3at Type 2 Class 4), meaning you run a single Ethernet cable to the housing and it operates immediately — no separate power supply, no voltage regulator, no additional infrastructure. This simplifies cable routing in retrofit installations and reduces your switch's power-budget risk compared to devices that demand higher wattage. A secondary 10–28 V DC input enables redundant power architectures on mission-critical deployments where two independent supplies improve uptime and reduce mean-time-to-repair. Standard RJ45 termination is included; an optional IDC punch connector allows field termination in remote locations, cutting logistics time on emergency repairs or remote site deployments.
Camera Compatibility & Integration

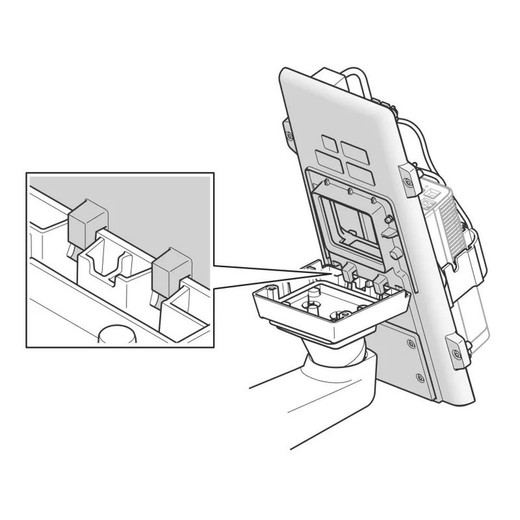

The 03048-001 houses Axis Q17 Series and P13 Series box cameras. Installation is modular — the open casing design allows quick camera swaps without disassembling the entire housing, which reduces mean-time-to-repair on field replacements. A wall bracket is included; the design supports alternative mounting orientations with standard hardware. Built-in intrusion detection alerts to unauthorized access attempts, adding a security layer on sensitive perimeter sites.
Typical Deployments
Perimeter fencing, industrial facility exteriors, transportation hubs, border control checkpoints, and critical infrastructure sites where camera durability and environmental resilience are non-negotiable. The 5-year warranty reflects manufacturer confidence in the housing's longevity and simplifies multi-year budget forecasting for large-scale deployments.
When to Choose a Different Model
If your camera already has built-in environmental sealing (check the camera's own IP and IK ratings first), a separate housing may be redundant. If you require full submersion protection, confirm the camera inside the 03048-001 supports IP67 operation — the housing is IP67-capable, but the camera's waterproofing is the final limiting factor. For indoor installations or low-impact outdoor sites with mild weather, a simpler surface-mount box without a heater or fan will lower cost and reduce complexity.
Frequently Asked Questions
Q: Can I use the 03048-001 with cameras other than Axis Q17 and P13 Series?
A: The 03048-001 is engineered for Axis Q17 and P13 Series box cameras. Check the camera's form factor and dimensions against the housing opening before attempting to retrofit other models — improper fit compromises environmental sealing.
Q: Does the 03048-001 require any special mounting hardware?
A: A wall bracket is included with the housing. Alternative mounting orientations (ceiling, pendant, angled) are supported using standard hardware; consult the installation guide for orientation-specific thermal and drainage considerations.
Q: What is the warranty on the 03048-001?
A: The Axis 03048-001 carries a 5-year warranty covering manufacturing defects and environmental seal failure under normal deployment conditions.
Q: Is the sunshield removable, and does it affect the field of view?
A: Yes, the sunshield is removable. On direct-sun deployments, it reduces glare and optical thermal stress on the internal camera sensor. Remove it only if your installation is in shadow or requires maximum field-of-view coverage.
Q: Can I power the 03048-001 via DC backup if my PoE+ link fails?
A: Yes. The secondary 10–28 V DC input supports redundant power architectures — run PoE+ as primary and wire a 24 V DC supply as backup for mission-critical deployments where uptime is enforced by SLA.
Q: Does the 03048-001 support IP67 (full submersion)?
A: The housing is IP67-capable, but the internal camera's waterproofing is the limiting factor. Verify the camera inside supports IP67 operation if submersion or high-pressure spray is a deployment requirement.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 03048-001 is a solid engineering choice for outdoor camera deployments facing both environmental and physical threats. The IP66/IP67 sealing combined with IK10 impact protection eliminates two major failure modes — weather ingress and vandalism — that plague under-specified enclosures on perimeter and industrial sites. The active thermal management (carbon nanotube heater + exhaust fan) is the differentiator here: it keeps optics clear in sub-zero climates and prevents the condensation-induced corrosion that silently kills sensors in humid coastal or tropical deployments.
Technical Highlights:
- PoE+ (IEEE 802.3at) with 10–28 V DC backup: Eliminates single points of failure on mission-critical installations. Primary power via Ethernet, secondary via isolated DC supply — a real uptime multiplier on SLA-enforced deployments.
- Carbon nanotube window heater + integrated fan: Actively maintains optical clarity across −40°C to +60°C. Without this, thermal cycling and humidity cause fogging and internal corrosion — you'll replace the housing every 2–3 years instead of 5+ years.
- IK10 (134 mph equivalent) impact resistance: Handles deliberate strikes and hurricane-force wind debris. On border and perimeter sites where vandal resistance is a compliance requirement, this spec is not optional.
Deployment Considerations:
- Confirm the camera inside the 03048-001 supports IP67 operation if full submersion is a requirement — the housing is IP67-capable, but the camera's waterproofing is the final limit.
- The removable sunshield reduces glare and thermal stress on the internal sensor — deploy it on direct-sun sites to extend sensor lifespan. Don't skip this on desert or open-field installations.
Deploy the 03048-001 on perimeter fencing, border checkpoints, industrial yards, and critical infrastructure sites where weather resilience and vandal resistance are enforced by policy, not just good intentions. The 5-year warranty and modular camera-swap design reduce mean-time-to-repair and multi-year total cost of ownership on large deployments.
