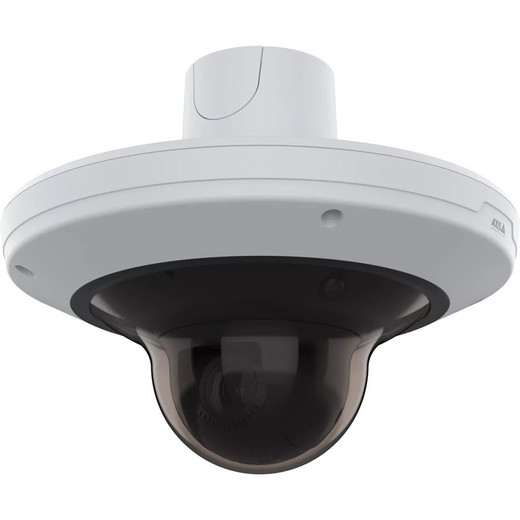

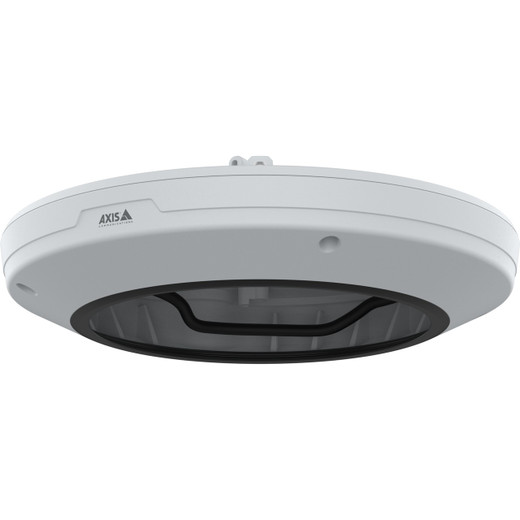

Axis 03187-001 TM5806-E Fixed Housing IP66 IK10
Overview
The Axis 03187-001 is a rugged fixed aluminum enclosure purpose-built to extend outdoor deployment capability for Axis M5000 and M5000-G series IP cameras. This is an accessory housing, not a standalone device—it wraps your existing camera in comprehensive environmental protection, allowing reliable operation in coastal zones, industrial sites, high-traffic public areas, and other harsh locations where weathering and mechanical stress are real concerns.
IP66 sealing means direct rain, high-pressure water jets (up to 100 bar), and dust won't penetrate the enclosure—a critical feature for outdoor surveillance where water ingress can corrode electronics and kill a camera in weeks. IK10 impact rating handles repeated mechanical stress from vibration, vandalism attempts, or accidental contact without compromising the housing's structural integrity. The aluminum construction delivers thermal management superior to plastic alternatives, preventing heat buildup that can reduce sensor performance and shorten component lifespan in direct sun.
Key Features
- IP66 Environmental Sealing: Complete protection against dust and high-pressure water jets (up to 100 bar). Skip this if you need full submersion protection—that requires IP67 or higher. For rain, snow, and coastal salt spray, IP66 is sufficient and keeps your camera operational in conditions that would kill unhoused units.
- IK10 Impact Resistance: Rated to withstand 20 joules of impact force—roughly equivalent to a 5 kg object dropped from 2 meters. Meaningful protection against intentional vandalism or accidental mechanical trauma in high-traffic areas. Reduces the need for separate impact cages or protective bollards.
- Aluminum with Corrosion-Resistant Treatment: NEMA 4x equivalent protection means the housing itself won't rust in coastal environments or chemical-heavy industrial settings. Lighter weight than stainless steel alternatives, reducing mounting load on structural elements. Aluminum also dissipates heat more effectively than plastic, keeping internal camera electronics cooler during prolonged sun exposure.
- Harting Connector Interface: Maintains full IP66 integrity at the connection point—no water leakage pathways where power and signal enter the housing. Industry-standard connector reduces field swapping complexity and ensures consistent weatherproof performance across installations.
- PVC-Free Design: Eliminates halogenated materials, meeting environmental compliance requirements and reducing fire hazard—a requirement in some regulatory environments (healthcare, food processing, certain industrial zones).
- Fixed Form Factor: No moving parts—pan, tilt, or zoom mechanisms. This eliminates mechanical failure points in extreme weather and reduces maintenance overhead. Trade-off: you must position the camera correctly during installation; you cannot adjust coverage remotely after deployment.
Integration and Compatibility
The 03187-001 is purpose-designed for Axis M5000 and M5000-G series cameras. Verify your specific camera model against Axis compatibility documentation before purchasing—this housing is not a universal wrap; it is engineered for a specific camera form factor. Power and signal connections route through the Harting connector, preserving the sealed integrity. Installation does not modify the camera itself, so warranty and firmware support remain unchanged. When planning deployment, consider mounting infrastructure and cable routing early—fixed housings offer no post-installation repositioning flexibility.
When to Choose a Different Approach
If you require submersion capability (IP67/IP68), full 360° coverage, or pan-tilt-zoom functionality, a purpose-built outdoor IP camera may be more appropriate than a fixed housing retrofit. The 03187-001 excels when you already own compatible Axis M5000 hardware and need to harden it against specific environmental threats—dust, rain, salt spray, or mechanical impact—without replacing the entire camera system. It is also a cost-effective alternative to buying new outdoor-rated cameras if your existing M5000 infrastructure needs environmental protection at specific problem locations.
Frequently Asked Questions
Q: Is the Axis 03187-001 compatible with all Axis camera models?
A: No. The 03187-001 is purpose-designed for Axis M5000 and M5000-G series cameras only. Verify your specific model against Axis documentation before purchasing.
Q: Does the IP66 rating mean the housing can be submerged?
A: No. IP66 protects against rain and high-pressure water jets but not full submersion. Full submersion requires IP67 or IP68 rating.
Q: Can I remotely adjust the camera angle after the 03187-001 is installed?
A: No. The fixed form factor means you must position the camera correctly during initial installation. No remote pan, tilt, or zoom adjustment is possible after deployment.
Q: Does the Harting connector weaken the weatherproof seal?
A: No. The Harting connector is designed to maintain full IP66 integrity at the connection point. It is an industry-standard weatherproof interface.
Q: What mounting options are available for the 03187-001?
A: The housing is designed for fixed wall, pole, or structural mounting. No articulating mounts are supported. Consult Axis installation documentation for specific mounting hardware compatibility.
Q: Will the aluminum housing rust in a coastal environment?
A: No. The housing features NEMA 4x corrosion-resistant treatment, protecting against saltwater and chemical environments typical of coastal zones.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 03187-001 is a straightforward play for integrators who already have M5000 hardware deployed in sheltered or partially protected locations and need to harden specific installations without a full camera swap. It solves a real problem: extending the lifespan of existing camera investments in salt-spray, high-vibration, or impact-prone environments. The 03187-001 trades flexibility (no remote adjustment) for durability and thermal performance.
Technical Highlights:
- IP66/IK10 Rating: The combination matters. IP66 handles weather; IK10 (20 joules impact) handles mechanical abuse. Together they address two independent failure modes in outdoor deployments. Most plastic housings max out at IK07; aluminum + NEMA 4x treatment here shifts the failure envelope into coastal and high-vibration industrial territory.
- Aluminum Thermal Dissipation: Direct sun on an unhoused camera in summer can push electronics into throttling territory. Aluminum actively conducts heat away from the internal camera, maintaining sensor stability and extending component lifespan. Meaningful advantage in desert or rooftop deployments running 24/7.
- Harting Connector Integrity: The weatherproof connector is not a weakness—it is engineered to be the sealed interface. No exposed RJ-45 or loose cable entries. Reduces field troubleshooting complexity when water ingress is a concern.
Deployment Considerations:
- Fixed positioning is non-negotiable: You adjust the camera angle during install. No remote pan-tilt after that. For dynamic coverage areas, this is a deal-breaker. For fixed-view perimeter or entrance monitoring, it is not an issue.
- M5000/M5000-G compatibility only: Do not assume backward compatibility with older Axis camera families. Verify the exact model before ordering. Incorrect fit wastes time and creates on-site troubleshooting friction.
- NEMA 4x treatment is corrosion-resistant, not corrosion-proof: In extreme salt-spray environments (oceanfront, chemical processing), inspect the housing periodically. Aluminum oxide layer degrades over years; maintenance protocols should include annual visual inspection at coastal sites.
This is the right choice for hardening existing M5000 deployments in industrial outdoor perimeter zones, coastal entrance monitoring, or high-vibration equipment areas where you need to extend the camera's operational envelope without replacing the entire system. Not a universal solution, but a targeted one.
