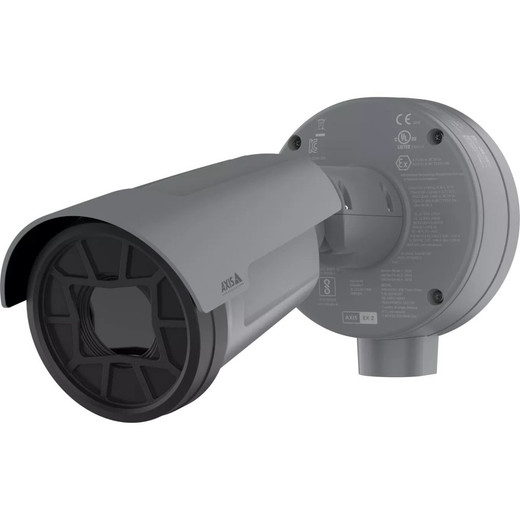

Axis Q1961-XTE Explosion-Protected Thermal Camera

The Axis Q1961-XTE is a certified explosion-protected thermal camera engineered for remote temperature monitoring in hazardous industrial locations worldwide. Built on the ARTPEC-8 platform, this compact, ruggedized camera delivers continuous thermal measurement across an extended range of -40°C to 350°C (-40°F to 660°F), making it ideal for petrochemical facilities, power generation plants, manufacturing operations, and other regulated environments requiring certified explosion-protected equipment. With full compliance to ATEX, IECEx, UL Class I/II/III Division 2, and Zone 2 certifications, the Q1961-XTE meets stringent safety standards across North America, Europe, and the Asia-Pacific regions.

Key Features

• Uncooled Microbolometer Thermal Sensor: 384x288 pixel resolution with 17 μm pixel size, 8–14 μm spectral range, and NETD 40 mK @ 25°C for precise thermal imaging; scalable to 768x576 for enhanced detail
• Extended Temperature Monitoring: Configurable temperature detection across 10 polygonal regions with threshold-based alerts; automatic notifications trigger when temperatures exceed or fall below set limits or change at configured rates
• Spot Temperature Reading: Exact temperature measurement in specific regions of interest for targeted monitoring
• Integrated Fire Detection Analytics: Early fire detection capabilities enable preventive action on early thermal anomalies and fire initiation signs
• Dual Video Codec Support: H.264 and H.265 compression with Axis Zipstream technology for optimized bandwidth and storage efficiency
• PoE+ Powered: Single Ethernet cable for power and data; Class 3 PoE+ reduces installation complexity
• Rugged Design: IP66/IP67 rating and IK10 impact resistance; operates in extreme temperatures from -40°C to 350°C measurement range
• Secure Architecture: Signed firmware, secure boot, and HTTPS encryption protect against unauthorized access
• Standard Compatibility: ONVIF support, Axis Camera Station integration, and third-party VMS platform compatibility

Technical Specifications

• Thermal Sensor: Uncooled microbolometer; 384x288 pixels; 17 μm pixel size; 8–14 μm spectral range; NETD 40 mK @ 25°C
• Optics: Athermalized 7 mm lens; F1.18; 55° horizontal field of view; 1.3 m minimum focus distance
• Frame Rate: 8.3 fps or 30 fps (variant dependent)
• Video Compression: H.264 and H.265 with Axis Zipstream
• Connectivity: Gigabit Ethernet; PoE+ (Class 3)
• Protection Ratings: IP66/IP67; IK10; NEMA 4X
• Storage: microSD card support
• Audio Support: Yes
• Certifications: ATEX, IECEx, PESO, JPEx, SANAS (IA), KCs, OSHA (Taiwan), UL Class I/II/III Div 2, AEx Zone 2/Zone 21
• Warranty: 5 years

Applications

• Petrochemical and oil/gas facilities requiring hazardous location compliance
• Power generation plants and substations
• Chemical manufacturing and processing operations
• Grain storage and agricultural facilities
• Mining and extraction sites
• Any regulated environment requiring certified explosion-protected monitoring

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Q1961-XTE represents a critical tool for safety-critical industrial environments where standard cameras cannot operate. Its multi-certification framework—spanning ATEX, IECEx, and multiple UL Class/Division and Zone designations—ensures legal compliance across North America, Europe, and international markets. The uncooled microbolometer design eliminates cooling complexity while delivering 40 mK thermal sensitivity, sufficient for early-stage fire detection and thermal anomaly identification.

The extended measurement range (-40°C to 350°C) addresses both cryogenic and high-temperature monitoring scenarios common in petrochemical and power generation sectors. PoE+ integration and Axis Zipstream compression reduce deployment costs and bandwidth strain. Integration with standard VMS platforms and native ONVIF support simplify system architecture.

The 5-year warranty and signed firmware/secure boot architecture reflect Axis's commitment to long-term operational reliability and cybersecurity in regulated environments.
