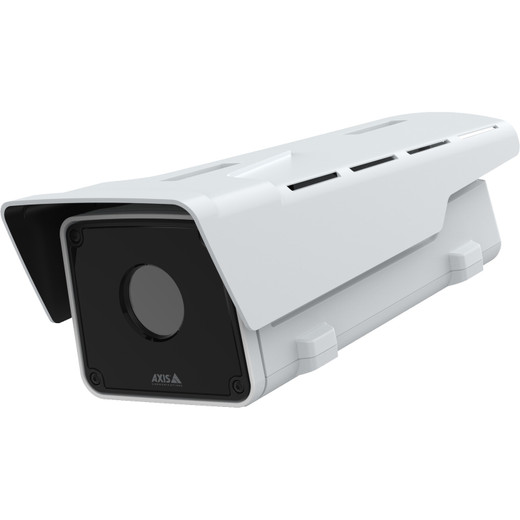

Axis Q2112-E Thermal VGA Box Camera - 02612-001

Axis 02612-001 Q2112-E Thermal Camera VGA Box

The Axis 02612-001 is a fixed-position thermal network camera purpose-built for perimeter intrusion detection, critical infrastructure monitoring, and temperature-sensitive applications where 24/7 operation independent of ambient light is non-negotiable. Built on the ARTPEC-8 platform, this box-form thermal camera delivers VGA resolution (640×480 pixels) with exceptionally low NETD thermal sensitivity—meaning it detects minute temperature variations that standard visible-light cameras cannot capture, even in complete darkness or adverse weather.

Overview

Thermal imaging has a fundamental advantage over visible-light surveillance: it captures heat signatures directly from the environment rather than relying on reflected light. The 02612-001 delivers consistent detection performance 24/7 regardless of fog, rain, nighttime, or glare—conditions that blind traditional cameras. This makes it invaluable for early-warning perimeter systems where heat signatures of intruders must be detected before physical breach occurs. The camera's low NETD (Noise Equivalent Temperature Difference) is the thermal equivalent of low-light sensitivity in visible cameras; lower NETD means better ability to distinguish small temperature differentials, which is critical for identifying personnel or detecting equipment hot spots in industrial settings.

Unlike visible cameras where you're limited by scene lighting, thermal performance is uniform across day and night. This simplifies system design—one thermal camera replaces what might otherwise be multiple visible cameras with supplemental lighting, reducing installation complexity and ongoing power consumption.

Key Features

• VGA Thermal Resolution (640×480 pixels) — sufficient for identifying heat signatures across perimeter fencing and critical equipment at operational distances. Multiple output formats (384×288, 768×576, 800×600) allow you to optimize bandwidth and storage footprint depending on recording duration and network capacity constraints. Lower resolution modes reduce storage costs significantly on 24/7 deployments spanning weeks or months.
• Exceptionally Low NETD Thermal Sensitivity — enables high thermal discrimination for detecting subtle temperature anomalies in fire detection, equipment monitoring, and intrusion scenarios. This is the thermal equivalent of low-light sensitivity in visible cameras; lower NETD means better detail in small temperature differentials. The 02612-001 can distinguish heat signatures that other thermal cameras might miss, a real advantage in detecting early-stage equipment failures or unauthorized personnel movement.
• Multiple Fixed Lens Options — factory-set focal lengths optimize coverage for your specific deployment distance. Fixed lenses ensure thermal calibration accuracy—a critical requirement in temperature-sensitive applications. Non-user-changeable design eliminates field installation variables that could degrade thermal accuracy or void calibration.
• IP66 Weatherproofing and IK10 Impact Resistance — direct rain, dust, and wind won't compromise operation. IP66 means the camera is protected against powerful water jets from any direction. IK10 rating protects against vandalism and environmental impact on exposed poles or rooftops, reducing maintenance-related downtime. This durability pays off in remote or harsh installations where service calls are expensive.
• PoE Power and Audio Support — draws power over standard Ethernet (802.3af), eliminating the need for separate power supplies on poles or building exteriors. Audio capability enables integrated two-way communication for guard tour operations or remote alarms. PoE also simplifies commissioning—one cable carries both data and power, reducing field wiring labor.
• PT-Mount Compatible (motorized head sold separately) — when paired with a motorized PT head, enables guard tour capability for automated perimeter scanning without adding a separate PTZ camera to your bill of materials. This flexibility allows you to start with a fixed installation and upgrade to motorized coverage later if threat assessment changes.
• ONVIF Profile S Compatibility — integrates with mainstream IP cameras VMS platforms beyond proprietary Axis software, protecting your integration flexibility if future system consolidation becomes necessary. This is particularly valuable in multi-vendor environments where standardization reduces training and support overhead.
• Halogen-Free Construction — meets regulatory compliance requirements for sensitive installations such as food processing, pharmaceutical facilities, or clean-room environments where halogenated flame retardants are restricted. Important if your facility operates under strict environmental or health-code oversight.

Integration and Compatibility

The 02612-001 supports ONVIF Profile S, ensuring seamless integration with third-party network video recorders and VMS platforms. Native support for AXIS Camera Station provides additional flexibility for deployments using Axis-centric architectures. When designing your perimeter system, confirm that your chosen VMS vendor has tested ONVIF Profile S integration with Axis thermal cameras—Profile S is the standard subset, but always verify before installation.

The camera's PoE (802.3af) power requirement means it will draw approximately 12–13W under typical operation. Plan your PoE switch capacity accordingly; a 24-port 802.3af switch can handle roughly 20–24 thermal cameras depending on switch model and power distribution design. If you're deploying multiple thermal cameras across a large perimeter, consider PoE+ infrastructure to leave margin for future expansion.

For temperature-sensitive applications (fire detection, equipment monitoring), the 02612-001's thermal output integrates with third-party analytics or SCADA systems via ONVIF or direct thermal data APIs. Confirm your analytics platform supports raw thermal data feeds if you plan to automate temperature-threshold alarms.

Thermal Imaging Advantage Over Visible Light

The fundamental difference between thermal and visible-light surveillance is that thermal cameras work independent of ambient light. A visible camera in complete darkness or fog is essentially blind; a thermal camera sees heat. This means the 02612-001 delivers consistent detection performance regardless of lighting conditions—a critical advantage for 24/7 perimeter security where intrusions don't wait for daylight. The combination of low NETD sensitivity and multiple lens options makes this camera particularly valuable for integrators designing early-warning perimeter systems.

When to Choose a Different Model

If your deployment requires higher thermal resolution (e.g., identifying faces or fine detail at distance), consider a higher-resolution thermal variant in the Axis thermal line. If you need motorized pan/tilt capability as standard (not via optional PT head), explore Axis thermal PTZ models. If your environment is cooler than typical and thermal contrasts are subtle, consult with Axis technical support about NETD requirements before committing.

Conversely, if your primary need is visible-light surveillance with supplemental nighttime coverage, a standard outdoor IP camera with built-in IR illumination may be more cost-effective than thermal. Thermal shines in applications where light-based surveillance is impractical or where temperature anomalies themselves are the detection trigger (fire, equipment fault, unauthorized personnel in no-light zones).

Frequently Asked Questions

Q: Does the Axis 02612-001 work in fog or heavy rain?

A: Yes. Thermal imaging detects heat directly from the environment, not reflected light, so fog and rain have minimal impact on thermal detection performance. The camera's IP66 rating ensures water ingress won't damage internal components. Visibility may degrade slightly in extremely heavy fog or rain, but thermal performance remains far superior to visible-light cameras in those conditions.

Q: Can I use the 02612-001 indoors for temperature monitoring?

A: Yes. The camera is rated for indoor durability and can monitor equipment temperatures (servers, motors, transformers) for predictive maintenance. Confirm that your application doesn't require IP67 or higher submersion protection; the IP66 rating is splash and jet-resistant but not fully submersible. For fire detection, verify that your VMS or analytics platform can process thermal data for temperature-threshold alarms.

Q: What PoE switch do I need?

A: The 02612-001 draws approximately 12–13W via standard 802.3af PoE. Any PoE switch with available 802.3af ports will work. For multiple thermal cameras, ensure your switch has sufficient power budget; a 24-port 802.3af switch can typically support 20–24 thermal cameras depending on model and power distribution design. PoE+ is not required but provides margin for future expansion.

Q: Is the 02612-001 (often searched as 02612 001) compatible with my Milestone VMS?

A: The camera supports ONVIF Profile S, which Milestone XProtect recognizes. However, thermal data visualization and analytics may require additional configuration or third-party thermal analysis tools. Contact Milestone support or your integrator to confirm that your specific Milestone version supports ONVIF thermal camera integration.

Q: Can I upgrade from fixed lens to motorized pan/tilt later?

A: Yes. The 02612-001 is compatible with motorized PT heads (sold separately). You can install the camera as fixed initially and add a PT head later if your threat assessment or operational needs change. This staged approach lets you defer capital expense while maintaining perimeter coverage.

Q: What's the expected lifespan of the thermal sensor?

A: Thermal sensors are solid-state and do not degrade significantly over time with normal use. The camera's mechanical and electrical components follow standard industrial lifespan expectations—typically 5–7 years of continuous operation before scheduled maintenance or replacement. Refer to the Axis product support page for end-of-life and extended warranty options.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 02612-001 is a credible choice for installations where thermal detection is the primary requirement, not a supplement. I've deployed thermal cameras on perimeter fencing, equipment monitoring, and fire-detection applications, and the 02612-001's low NETD and PoE efficiency make it a solid fit for most enterprise perimeter builds. The key is understanding what you're buying: a thermal sensor that works 24/7 independent of light, not a substitute for visible surveillance.

Technical Highlights:

• VGA Thermal (640×480) with multiple output formats: The ability to downscale to 384×288 or 768×576 cuts bandwidth and storage by 50–70% on 24/7 recordings without sacrificing thermal detection accuracy. On a 30-camera perimeter system running 24/7, this translates to tangible storage savings—roughly $10–20K over a 3-year retention window depending on your NVR strategy.
• Low NETD thermal sensitivity: This is the differentiator. NETD measures the smallest temperature difference the camera can resolve; the lower the NETD, the better the discrimination between subtle thermal variations. The 02612-001's NETD specification allows detection of intruders in near-identical ambient conditions—valuable for detecting unauthorized personnel movement in dark areas where visible cameras would be completely blind.
• PoE (802.3af) at ~12–13W: Standard 802.3af is sufficient; no need for PoE+ or PoE++. This matters for infrastructure cost—your existing 802.3af switches can handle 20+ thermal cameras without upgrade, whereas deploying 20 visible IP cameras with heaters and illuminators would require PoE+ or dual-power designs. The 02612-001 is lean on power relative to its capability.
• IP66 / IK10 rating: Direct rain and jet spray are no concern; IK10 handles impacts from thrown objects or accidental mechanical stress. On rooftops or exposed fence lines, this durability eliminates preventive maintenance cycles you'd otherwise run on visible cameras with sensitive optics.

Deployment Considerations:

• Fixed lens commitment: The 02612-001 comes with factory-set focal lengths that you cannot change in the field. Choose the correct lens angle before purchase or commissioning—wrong choice means costly camera replacement or addition of a second unit. Work with your integrator to model coverage zones before ordering; thermal lens selection is not forgiving.
• Thermal contrast dependency: Thermal cameras detect heat, not visible detail. If your threat environment involves personnel wearing thermal-reflective gear or operating in environments where thermal contrast is minimal (heated buildings in winter, hot outdoor areas), thermal detection effectiveness drops. Visible surveillance remains necessary in those scenarios. Thermal is a complement, not a replacement, in many real-world deployments.
• ONVIF Profile S limitations: Profile S is the baseline ONVIF standard and covers core playback and live-view functions, but advanced analytics, metadata, or thermal data export may not be fully supported by all VMS platforms. Test integration with your chosen recorder before full deployment—thermal data pipelines are less standardized than visible-light video.
• PT head upgrade path: The 02612-001 is compatible with motorized PT heads, but mounting and mechanical integration vary by head model. Budget for additional integration labor if you plan to retrofit motorization later. Starting with fixed installation and upgrading to PT is viable but not seamless.

The 02612-001 is the right choice for enterprise perimeter security where the environment is dark, foggy, or subject to rapid weather changes, and where 24/7 autonomous detection is non-negotiable. Its low power draw and IP66 durability make it a natural fit for remote fence lines or industrial site perimeters. Where visible surveillance is equally important—access gates, entrance monitoring, identity verification—integrate the 02612-001 alongside visible cameras rather than as a replacement. Position it as the all-weather, no-light-required detection layer that picks up what visible cameras miss.
