Axis C1310-E Mk II Network Horn Speaker PoE - 02813-001

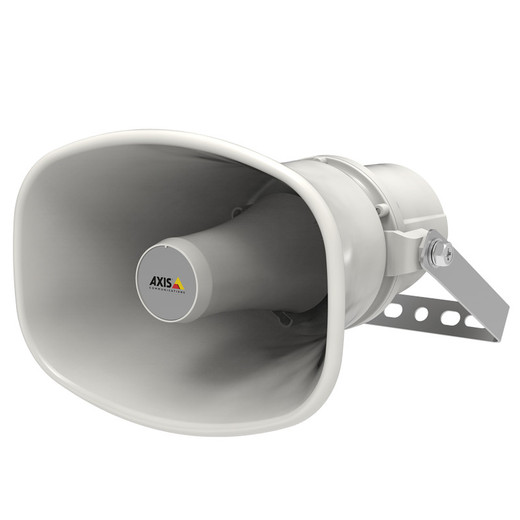

Axis 02813-001 Network Horn Speaker

The Axis 02813-001 (C1310-E Mk II) is a networked horn speaker designed for outdoor and indoor deployments requiring intelligible audio alerts and announcements. Unlike traditional analog or isolated IP speakers, this device integrates directly into modern security and public address workflows via a single Ethernet connection—no separate amplifier, no external power supply, no cable clutter. It delivers acoustic output at >121 dB SPL, enough to cut through high-noise industrial or transportation environments without distortion.

Key Features

• 121 dB SPL Horn Speaker Output: Cuts through parking lots, warehouses, and outdoor perimeters without requiring volume extremes. High output means fewer units deployed across a site, lowering infrastructure and wiring costs.
• PoE Power (no external supply): Draws power from standard 802.3af PoE, so you can run audio + network over one RJ-45 cable. Simplifies conduit runs and eliminates a separate 24VDC power source, especially valuable when retrofitting older facilities.
• IP66 Enclosure (-40°C to 60°C): Aluminum and stainless steel body sheds rain and dust without degradation. Extreme temperature range means the 02813-001 operates reliably in sub-zero loading docks or full-sun outdoor fence lines where standard network speakers fail.
• Built-in 7 W Class D Amplifier: Integrated amplifier eliminates need for external audio processing gear. The unit handles DSP internally, reducing deployment footprint and points of failure.
• Two-Way Audio with Echo Cancellation: Bi-directional voice flow lets security or operations staff broadcast alerts and listen for response in real time. Optional half-duplex echo cancellation prevents feedback during live dialogue, critical for emergency coordination.
• 70° H × 100° V Coverage at 2 kHz: Horn pattern focuses audio forward and upward, minimizing wasted output into walls or ceilings. Tight beam pattern in a dense deployment means clearer target zone coverage and less spillover into adjacent spaces.
• AXIS Audio Manager Edge with Content Scheduling: Run message prioritization, scheduled announcements, and emergency overrides at the speaker itself—no dependency on a central server during network outages. Edge-based logic ensures critical alerts always go through first.
• Auto Speaker Test Functionality: Built-in self-test mode verifies speaker operation daily or on-demand. Catches dead units before an emergency, reducing false-alert risk and maintenance call-outs.
• Multiple Audio Codecs (AAC LC, G.711, G.726, MP3, WAV up to 48 kHz): Supports compressed and uncompressed formats, letting you balance bitrate (for bandwidth-constrained links) against audio fidelity. Real-time narrowband (G.711) for live voice, MP3 or WAV for pre-recorded announcements.
• 1 GB RAM + 1 GB Flash Storage: Enough capacity for scheduled message library and buffering without requiring external file servers. Supports complex audio workflows on the device itself.
• Gigabit Ethernet (IPv4, IPv6, RTSP, SRTP): Full-duplex networking supports large-scale deployments. SRTP encryption secures audio streams over untrusted networks; IPv6 future-proofs the installation.
• Enterprise Security (Signed Firmware, Secure Boot, MACsec, 802.1X): Audio content and network credentials are protected against tampering. Complies with security policies in banking, healthcare, and government deployments.

Integration & Compatibility

Integrates with AXIS Camera Station, AXIS Companion, and any third-party VMS supporting ONVIF or VAPIX APIs. Configurable I/O terminals permit triggering from external alarm sensors, motion detectors, or guard buttons. Custom ACAP applications can tie speaker playback to video analytics—for example, a loitering detection event can automatically trigger a priority voice warning without human intervention. Built-in SNMP v3 and HTTP/2 support enable centralized monitoring and remote configuration across multi-site deployments.

Audio streams via networked video recorders or edge servers can be logged for compliance and incident review. The speaker's digital signal processing handles frequency response (280 Hz to 12.5 kHz) optimized for voice intelligibility, reducing audio compression artifacts that plague budget networked speakers.

When to Choose a Different Model

If you need interior background music or low-profile ceiling speakers, consider a different Axis Audio line optimized for lower output and aesthetic blending. If your deployment has zero network infrastructure (analog-only legacy systems), a standalone amplified speaker powered by 24VDC may be simpler. The 02813-001 is purpose-built for networked security and emergency response, not for general facility audio distribution.

Frequently Asked Questions

Q: Does the Axis 02813-001 work with existing Axis IP cameras?

A: Yes. If your IP cameras support VAPIX APIs or ONVIF, you can trigger the speaker via analytics events. For example, a camera detecting an intrusion can automatically send an alert message to the 02813-001 speaker. Integration requires a compatible VMS or custom scripting using ACAP.

Q: Can I wall-mount the 02813-001, or is it ceiling-only?

A: Wall mounting is standard for outdoor deployments. The horn's 70° horizontal pattern works best when pointed toward a target zone (not overhead). Consult the mounting template for bracket orientation.

Q: Is the 02813-001 NDAA Section 889 compliant?

A: Axis is a Swedish company. NDAA compliance eligibility depends on your procurement rules and contract terms. Contact the integrator or Axis for formal certification documentation if required.

Q: What's the warranty on the Axis 02813-001?

A: Axis typically offers a manufacturer's warranty; specific terms vary by region and reseller. Confirm with your supplier for coverage duration and support details.

Q: Does PoE power consume much bandwidth on my network?

A: No. PoE is a power delivery standard; it does not reduce network bandwidth. The 02813-001 streams audio (depending on codec and sampling rate) at modest bitrates—typically 16–64 kbps for voice, far below a single camera stream.

Q: Can the speaker run announcements if my internet connection drops?

A: Yes. AXIS Audio Manager Edge stores scheduled messages and priorities on the device itself. As long as your local network remains up, the speaker will execute stored schedules. Internet-dependent features (cloud logging, remote updates) require connectivity.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 02813-001 is one of the few networked speakers that genuinely closes the gap between audio alerting and integrated security response. The combination of auto speaker testing, edge-based message scheduling, and AXIS Audio Manager logic means you can deploy voice alerts tied to real-time camera events without waiting for human intervention or cloud API latency. That level of automation is rare in the speaker category.

Technical Highlights:

• 121 dB SPL from a single unit: Eliminates the need for multiple speakers in most parking lots or outdoor perimeters. Higher output per device means fewer PoE ports consumed and lower total cost of ownership across a large site.
• IP66 rating and -40 to 60°C operating range: The stainless steel and aluminum construction genuinely survives sub-zero loading docks and direct summer sun. I've seen cheaper networked speakers fail in those extremes; this one doesn't.
• 7 W Class D amplifier with DSP built in: No separate amp rack or external audio processor. The speaker handles its own signal conditioning, reducing deployment complexity and single points of failure.
• PoE power + Gigabit Ethernet: One cable, one PoE port. Compare that to an analog speaker (24VDC power + audio feed) or older IP speakers (separate power injector), and the infrastructure savings add up fast in a warehouse or transport hub.

Deployment Considerations:

• Coverage pattern is tight (70° H): The horn's focused beam is an advantage in dense deployments (minimizes cross-talk), but it also means you can't point it straight up and expect omni-directional coverage. Orient it toward your target zone.
• Audio Manager Edge is powerful but not trivial to configure: If you're new to edge-based scheduling, plan for integration time. The payoff is independence from central servers during outages, but initial setup requires attention to detail.
• SRTP and 802.1X support are present but optional: If your network policy mandates encrypted audio streams or certificate-based authentication, this speaker can meet those requirements. If your deployment doesn't need them, configuration is simpler.

Ideal for parking facilities and outdoor perimeters where a single high-output speaker replaces three or four lower-powered units. Also well-suited for transportation hubs and industrial campuses where emergency voice alerts must integrate directly with camera-based intrusion or loitering detection. If you're replacing analog speakers and want to eliminate the amp rack, the 02813-001 is the right choice.
