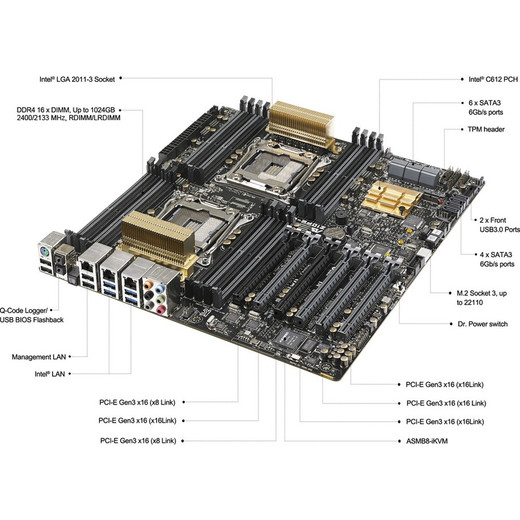

ASUS Z10PE-D16/10G-DUAL Z10PE-D16 Server Motherboard

ASUS Z10PE-D16/10G-DUAL Dual-Socket Intel Xeon E5-2600 Server Motherboard

The ASUS Z10PE-D16/10G-DUAL is a dual-socket EATX server motherboard built around the Intel LGA 2011-v3 platform, designed for compute-intensive workloads where a single-socket board simply won't scale. Supporting the full ASUS server E5-2600 v3/v4 Xeon lineup — from 4-core entry SKUs up to 18-core workhorses — this board gives you the headroom to match silicon to workload rather than the other way around. At 16.70 × 15.10 × 2.60 in, the Z10PE-D16/10G-DUAL occupies a standard EATX footprint, fitting most 4U and larger server chassis without modification.

Overview

Deploy this board where you need a high-core-count, high-memory-density foundation: multi-channel NVR servers, analytics nodes running deep-learning inference at the edge, or HPC clusters where two CPUs eliminate the round-trip latency penalty of a distributed compute node. The dual-socket design means two independent Xeon E5-2600 processors sharing a single memory fabric — you get near-linear throughput scaling on thread-parallel workloads without the overhead of network-fabric interconnects between separate hosts.

Key Features

• Dual LGA 2011-v3 Sockets (Intel Xeon E5-2600 Series): Both sockets support the full E5-2600 v3/v4 family with 4, 6, 8, 10, 12, 16, or 18 cores per CPU. Pairing two 18-core v4 SKUs gives you 36 physical cores — enough to run dense analytics pipelines or multiple network-intensive VM workloads simultaneously without per-thread queue contention.
• Up to 1 TB DDR4 Quad-Channel Memory: Sixteen DIMM slots operating in quad-channel mode support speeds from 1333 to 2133 MHz. A full 1 TB addressable memory ceiling means you can hold entire video databases or inference model weights in RAM — eliminating disk I/O as a bottleneck on read-heavy surveillance analytics.
• 10× SATA III Connectors with RAID 0/1/5/10: Ten native SATA III (6 Gbps) ports with onboard RAID 0, 1, 5, and 10 support remove the need for a discrete RAID card in most deployments. RAID 5 across eight drives gives you both redundancy and usable capacity in a single parity-protected volume — standard practice for always-on NVR storage where a single drive failure cannot interrupt recording.
• Aspeed AST2400 Integrated Graphics (32 MB): The onboard Aspeed AST2400 BMC-capable graphics controller handles remote IPMI/KVM-over-IP console access without consuming a PCIe slot. For headless server builds, this means you retain out-of-band management access for BIOS configuration and OS recovery without shipping a monitor to the rack.
• Dual EATX 8-Pin Power Connectors + 24-Pin ATX: Two EATX 8-pin CPU power connectors ensure stable delivery to both processor sockets under sustained full-load conditions. Under-provisioned power rail design is a leading cause of intermittent CPU throttling in dual-socket builds — the dual 8-pin layout here eliminates that failure mode.
• Power Fan Connector: The dedicated power fan header allows direct PWM control of power supply cooling, enabling chassis-level thermal management to be coordinated through the board rather than requiring separate fan controllers.
• USB 2.0 Internal Header: One internal USB 2.0 connector supports DOM (Disk on Module) OS boot drives or internal management dongles — a clean way to install a hypervisor boot device without consuming a SATA port or an external bay.

Integration & Compatibility

The Z10PE-D16/10G-DUAL targets enterprise environments already standardized on Intel's LGA 2011-v3 ecosystem. Processor compatibility spans the complete Xeon E5-2600 v3 and v4 families, giving long procurement cycles access to current-generation silicon without platform changes. DDR4-SDRAM in quad-channel configuration is backward-compatible with JEDEC standard registered ECC DIMMs — the expected choice for server builds where memory errors cannot be silently absorbed. The SATA III interface supports standard 2.5-inch SAS/SATA SSDs and spinning surveillance-grade HDDs from any major drive manufacturer. RAID levels 0, 1, 5, and 10 are managed through the onboard controller, compatible with standard RAID management utilities under Linux and Windows Server environments. The Aspeed AST2400 graphics engine supports ASUS ASMB8 server management board integration for full IPMI 2.0 remote management when paired with the optional management module. The server motherboard uses a standard EATX form factor (16.70 × 15.10 in), compatible with most 4U rackmount server chassis from major enclosure vendors. For storage-heavy deployments requiring drives beyond the 10 onboard SATA ports, PCIe expansion slots support HBA add-in cards — verify slot count and lane allocation against the full ASUS product specification sheet for your chassis configuration.

Frequently Asked Questions

Q: What Intel processors are compatible with the ASUS Z10PE-D16/10G-DUAL?

A: The Z10PE-D16/10G-DUAL uses dual LGA 2011-v3 sockets and supports the Intel Xeon E5-2600 v3 and v4 series with 4, 6, 8, 10, 12, 16, or 18 cores per processor.

Q: How much RAM does the Z10PE-D16/10G-DUAL support?

A: The board supports up to 1 TB of DDR4-SDRAM across its sixteen DIMM slots, operating in quad-channel mode at speeds of 1333, 1600, 1866, or 2133 MHz.

Q: What RAID levels are supported natively?

A: The onboard SATA III controller supports RAID 0, 1, 5, and 10 across its 10 SATA III connectors — no discrete RAID card required for standard redundancy configurations.

Q: What form factor is the Z10PE-D16/10G-DUAL and what chassis does it fit?

A: It is an EATX board measuring 16.70 × 15.10 × 2.60 inches, compatible with most 4U and larger rackmount server chassis that support the EATX standard.

Q: Does the board support out-of-band remote management?

A: Yes. The integrated Aspeed AST2400 controller provides BMC-level graphics and supports IPMI-based remote KVM access. Full IPMI 2.0 remote management requires pairing with an optional ASUS server management module.

Q: What is the weight of the Z10PE-D16/10G-DUAL?

A: The board weighs 4.95 lb per the distribution specification sheet.

Eden Phillips

The Z10PE-D16/10G-DUAL's 1 TB DDR4 memory ceiling is the spec that changes the conversation in multi-camera analytics deployments. When I'm sizing a server for a 128-channel NVR running concurrent motion detection and object classification, the difference between a 256 GB single-socket board and a 1 TB dual-socket platform isn't just headroom — it's the line between batching inference jobs and running them in real time. That's where the Z10PE-D16/10G-DUAL lives.

Technical Highlights:

• 16 DIMM Slots, Quad-Channel DDR4: Running all sixteen slots populated at 2133 MHz gives maximum memory bandwidth across both CPU NUMA nodes — critical when analytics threads on each socket need independent, low-latency access to frame buffers without cross-NUMA thrashing.
• 10× SATA III + RAID 5/10 Native: Ten onboard SATA III ports with hardware RAID 5 or 10 means you can build a 4- to 8-drive redundant storage volume without a separate HBA or RAID card consuming a PCIe slot — keeping those slots open for GPU accelerators or 10GbE NICs.
• Aspeed AST2400 BMC Graphics: The AST2400 gives you IPMI-capable remote console access out of the box. In a lights-out rack environment, this isn't optional — it's your recovery path when the OS hangs and you need BIOS access without rolling a cart.

Deployment Considerations:

• The EATX form factor (16.70 × 15.10 in) requires a chassis with adequate depth clearance — verify your 4U enclosure supports full EATX before ordering. Not all 4U chassis labeled 'EATX-compatible' accommodate boards past 13 inches wide.
• Both EATX 8-pin CPU power connectors must be populated for stable dual-socket operation under load. Running with only one 8-pin connected will trigger power warnings and may result in processor throttling under sustained compute — a common oversight in builds converted from single-socket platforms.

This board is well-suited to a dedicated analytics server or high-density NVR head node in a physical security operations center — where sustained 24/7 multi-stream processing demands a platform that won't run out of memory bandwidth before it runs out of camera licenses.
