ASUS Z13PE-D16 Server MB FOR Dual 5TH Intel Xeon Single-cpu Supt 3 PCIE 16 DIMM

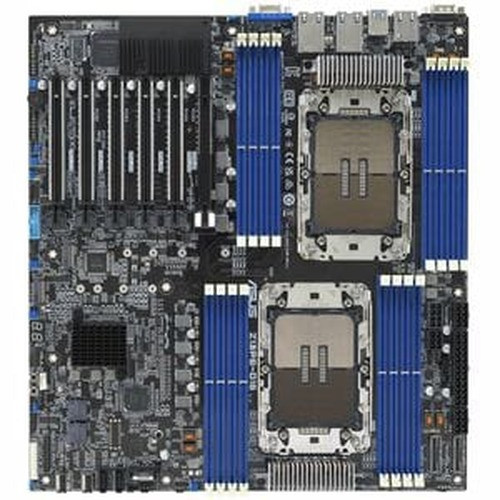

ASUS Z13PE-D16 Dual-Socket Intel Xeon Server Motherboard

The ASUS Z13PE-D16 is a dual-socket server motherboard built around Intel's LGA 4677 (Socket E) platform, designed to seat two 5th-generation Intel Xeon Scalable processors in a workload-dense, memory-rich configuration. With 16 DDR5 DIMM slots running octa-channel memory at up to 5600 MHz and a 2 TB maximum memory ceiling, the Z13PE-D16 (often searched as Z13PE D16) targets compute-intensive rack server builds where memory bandwidth and capacity are the binding constraints — database servers, virtualization hosts, and AI inference nodes where CPU saturation happens before storage does.

Key Features

• Dual LGA 4677 (Socket E) CPU Support: Seats two 5th-generation Intel Xeon Scalable processors simultaneously. Running dual CPUs doubles available core counts and memory channels without adding a second chassis — relevant for any workload that saturates a single socket's PCIe bandwidth or NUMA domain.
• 16 DDR5 DIMM Slots, Octa-Channel Architecture: Eight channels per CPU deliver the full memory bandwidth the Xeon Scalable platform is rated for. Populating all 16 slots with 128 GB modules reaches the 2 TB maximum — enough headroom for in-memory databases or large VM pools without tiering to slower storage.
• DDR5-4800 / DDR5-5600 Support: DDR5-5600 delivers roughly 1.5× the bandwidth of DDR4-3200 at equivalent capacity. For memory-bandwidth-sensitive workloads (HPC, columnar analytics, ML inference), this is the difference between a bottleneck and a non-issue. Module capacities supported: 16 GB, 32 GB, 64 GB, and 128 GB.
• PCIe Expansion (3 Slots): Three PCIe slots accommodate GPU accelerators, NIC cards, or storage controllers. For surveillance infrastructure builds, this means you can pair compute, high-speed networking, and NVMe expansion in one platform without external add-on enclosures.
• ASPEED AST2600 Onboard BMC Graphics: The AST2600 is a dedicated baseboard management controller with integrated video — standard on enterprise server platforms for out-of-band management. This means remote KVM, hardware health monitoring, and IPMI access without requiring the OS to be running, which matters for lights-out data center deployments.
• M.2 and SATA III Storage Interfaces: Supports both M.2 NVMe/SATA SSDs and up to 10 SATA III HDDs or SSDs simultaneously. This combination lets you deploy OS and hot data on fast NVMe while bulk storage or surveillance footage archives land on high-capacity spinning or SATA SSD media — no separate storage controller card required for most configurations.
• SSI EEB Form Factor (13 × 12 in): At 13.00 × 12.00 in, the Z13PE-D16 fits standard SSI EEB-compatible server chassis. Verify chassis compatibility before ordering — not all 2U or 4U rackmount enclosures accommodate the full SSI EEB footprint.
• Integrated USB Connectivity: One USB 2.0 and one USB 3.2 Gen 1 internal header support OS installation media, hardware security dongles, or peripheral connections during commissioning — standard for headless server builds.

Integration and Compatibility

The Z13PE-D16 is designed for 5th-generation Intel Xeon Scalable processors on the LGA 4677 socket — verify processor TDP and specific Xeon SKU compatibility against ASUS's QVL before committing to a processor purchase. Memory compatibility is similarly critical on DDR5 platforms: registered ECC (RDIMM) or load-reduced (LRDIMM) modules are standard in dual-socket server configurations; validate against the ASUS memory QVL for your target speed bin (4800 or 5600 MHz). For storage, the board supports HDD and SSD across M.2 and SATA III — confirm M.2 key type and length compatibility with your target NVMe drives before installation. PCIe slot configuration (bifurcation, lane counts) should be verified in the technical documentation for GPU or multi-port NIC deployments where lane allocation matters.

Frequently Asked Questions

Q: How many processors does the ASUS Z13PE-D16 support?

A: The Z13PE-D16 has two LGA 4677 (Socket E) sockets and supports dual 5th-generation Intel Xeon Scalable processors. It can also operate with a single CPU installed.

Q: What is the maximum RAM capacity on the Z13PE-D16?

A: The board supports up to 2 TB of DDR5 memory across 16 DIMM slots. Supported module capacities are 16 GB, 32 GB, 64 GB, and 128 GB in DDR5-4800 or DDR5-5600 speeds.

Q: What storage interfaces does the Z13PE-D16 support?

A: The Z13PE-D16 supports M.2 and SATA III interfaces and accommodates up to 10 HDDs or SSDs.

Q: Does the Z13PE-D16 have out-of-band management capability?

A: Yes. The board integrates an ASPEED AST2600 baseboard management controller (BMC), which provides out-of-band management, remote KVM, and hardware health monitoring independent of the host OS.

Q: What chassis form factor does the Z13PE-D16 require?

A: The board measures 13.00 × 12.00 × 2.70 inches and is compatible with SSI EEB server chassis. Confirm your chassis supports the SSI EEB footprint before ordering.

Q: How many PCIe slots does the Z13PE-D16 provide?

A: The Z13PE-D16 provides 3 PCIe slots for expansion cards such as GPUs, NICs, or storage controllers.

Eden Phillips

When I evaluate the Z13PE-D16 for a surveillance infrastructure role — think a large-scale on-premises NVR or AI-analytics server — the 16-slot DDR5 octa-channel memory architecture is the first thing that stands out. Running 5600 MHz DDR5 across eight channels per socket gives you the memory bandwidth to sustain high-throughput video decode or real-time analytics pipelines without hitting DRAM as the bottleneck.

Technical Highlights:

• Dual LGA 4677 Sockets: Two 5th-gen Xeon Scalable CPUs on a single board means you can scale core count and PCIe lane availability without adding a second server node — useful when a single high-channel-count NVR or inference platform needs to saturate multiple GPU accelerators.
• 2 TB DDR5 Ceiling at 5600 MHz: Sixteen DIMM slots supporting up to 128 GB modules each gives room to run large in-memory video indexes or ML model weights without spilling to slower swap. DDR5-5600 bandwidth is a real upgrade over DDR4 for streaming-data workloads.
• ASPEED AST2600 BMC: Out-of-band management is non-negotiable in a lights-out rack. The AST2600 handles remote KVM and hardware monitoring independent of the host OS — if a surveillance server locks up at 2 AM, you recover without a site visit.

Deployment Considerations:

• Confirm chassis SSI EEB compatibility before racking — the 13 × 12 in footprint fits EEB cases but not all 2U short-depth enclosures. Measure your chassis internal clearance against the 2.70 in board height with heatsinks installed.
• DDR5 dual-socket platforms have strict QVL requirements for memory stability at 5600 MHz; using unvalidated modules risks training failures or instability at full population. Validate DIMM part numbers against the ASUS QVL before purchasing memory at scale.

The Z13PE-D16 is a strong platform anchor for a centralized on-premises surveillance analytics node — particularly in enterprise deployments where 50+ camera feeds feed into a GPU-accelerated inference server and memory bandwidth is the throughput ceiling, not storage or network.
