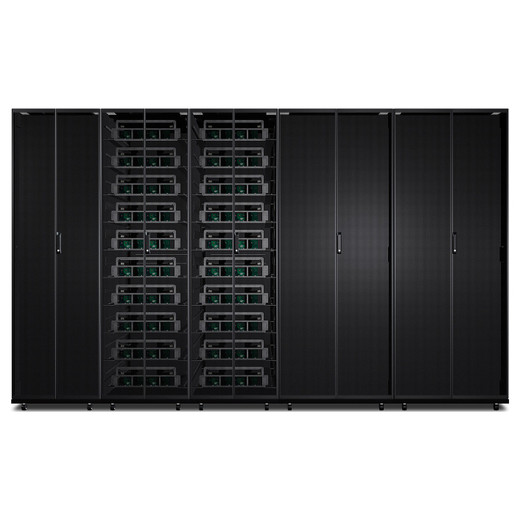

APC Symmetra PX 250/500KW IO Frame with Left Mounted Maintenance Bypass and Dist - SYIOF500KMBL

APC by Schneider Electric SYIOF500KMBL Concise Descriptor

Overview

The APC Symmetra PX 250/500KW IO Frame with Left Mounted Maintenance Bypass and Dist, model SYIOF500KMBL, is a critical component for deploying and managing APC Symmetra PX uninterruptible power systems. This frame provides the necessary input/output connections and bypass functionality, ensuring seamless integration into data center or critical infrastructure environments. It is designed to house the power distribution modules and bypass switch, simplifying wiring and maintenance for the UPS system.

Compatibility

This IO Frame is specifically designed for APC Symmetra PX 250kW and 500kW UPS systems. It is compatible with Symmetra PX models utilizing a left-mounted maintenance bypass configuration and integrated distribution. Verify your existing Symmetra PX system configuration to ensure this specific IO frame model is the correct fit for your power architecture.

Installation Notes

Installation requires qualified personnel familiar with APC Symmetra PX UPS systems and electrical distribution. Ensure proper lockout/tagout procedures are followed during installation and maintenance. The frame requires adequate clearance for access to bypass switches and distribution modules. Refer to the APC Symmetra PX installation manual for detailed wiring diagrams and torque specifications for power connections.

What's in the Box

• 1x APC Symmetra PX 250/500KW IO Frame with Left Mounted Maintenance Bypass and Dist (SYIOF500KMBL)
