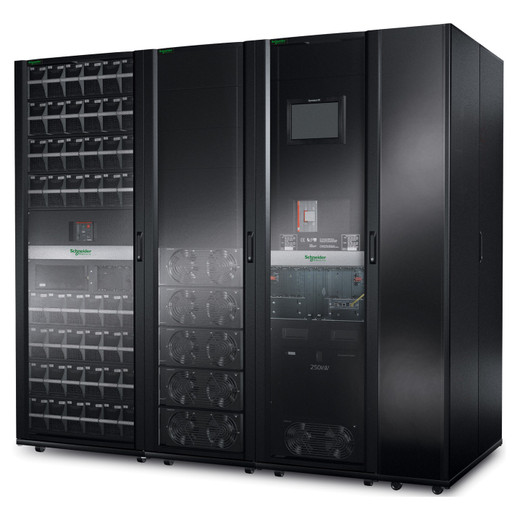

APC by Schneider Electric SY125K250DR-PD Symmetra PX 125kW Scalable to 250kW Modular UPS with Right-Mounted Maintenance Bypass and Distribution

The APC by Schneider Electric SY125K250DR-PD is a large-frame, modular, double-conversion UPS designed for mission-critical data center and enterprise environments where both high capacity and the ability to grow without infrastructure replacement are non-negotiable. Starting at 125kW and field-upgradeable to 250kW, it eliminates the need to over-provision day one — you deploy what the load demands today and scale incrementally as density grows. The integrated right-mounted maintenance bypass and distribution panel mean you can service the UPS without dropping the load, a hard requirement in 24/7 environments where scheduled downtime is simply not an option.

Key Features

• 125kW to 250kW Scalable Capacity: Field-upgradeable power modules let you match UPS capacity to actual load growth rather than worst-case projections — deferring capital expenditure and avoiding stranded capacity in early deployment phases.
• Integrated Right-Mounted Maintenance Bypass: The factory-integrated bypass is right-side mounted, which matters in tight row-based data center layouts where front-access-only designs force unsafe workarounds. Maintenance or module swap without shedding the load is a core reliability requirement at this power class.
• Integrated Distribution: Combining the bypass and distribution in a single frame reduces the number of standalone PDUs and inter-cabinet cabling runs, simplifying the power path and reducing potential failure points between the UPS output and the load.
• Modular Architecture: Power and battery modules are hot-swappable, meaning a module failure does not require a full system shutdown or an emergency service call to restore N+1 redundancy — a critical differentiator for facilities running without on-site electrical staff around the clock.
• Data Center and Enterprise IT Grade: The Symmetra PX platform targets large-format UPS systems for data center power infrastructure, colocation facilities, financial trading environments, and healthcare IT where the cost of downtime vastly exceeds the cost of the UPS itself.

Integration and Compatibility

The SY125K250DR-PD is designed to integrate with APC by Schneider Electric's EcoStruxure IT infrastructure management platform for remote monitoring and management. It is compatible with APC's network management cards, enabling SNMP, Modbus, and BACnet integration into building management and DCIM platforms. For environments standardizing on APC's full APC power infrastructure line, the Symmetra PX family supports multi-UPS paralleling for system-level redundancy beyond what a single frame can provide. Consult APC's published compatibility matrix for specific network management card and expansion frame pairings before procurement — not all accessory SKUs are interchangeable across Symmetra PX generations.

Frequently Asked Questions

Q: Can the SY125K250DR-PD be upgraded from 125kW to 250kW in the field without replacing the entire unit?

A: Yes. The Symmetra PX architecture is designed for in-field power module upgrades. You add capacity modules to the existing frame to reach the 250kW ceiling without replacing the base UPS — a core design intent of the platform. Confirm module part numbers and frame slot availability with APC before ordering upgrade modules.

Q: Does the right-mounted maintenance bypass allow the load to stay live during servicing?

A: Yes. The integrated maintenance bypass is specifically designed to transfer the load to utility bypass so the UPS electronics and power modules can be serviced without interrupting connected equipment. This is a standard requirement for UPS systems at this power class.

Q: What data center management platforms does the SY125K250DR-PD integrate with?

A: The Symmetra PX platform supports APC's EcoStruxure IT and is compatible with network management cards that enable SNMP, Modbus, and BACnet — covering most enterprise DCIM, BMS, and NMS platforms. Verify specific card compatibility with APC's current accessory matrix for this frame configuration.

Q: Is the SY125K250DR-PD suitable for parallel redundancy configurations?

A: The Symmetra PX platform supports paralleling for system-level redundancy. Whether the SY125K250DR-PD specifically supports a given parallel configuration depends on the total frame count and site wiring topology — confirm with APC's pre-sales engineering documentation before designing a parallel deployment.

Q: What is the difference between the SY125K250DR-PD and similar Symmetra PX models without the -PD suffix?

A: The -PD suffix denotes the integrated distribution panel in this configuration. Models without -PD require a separate distribution frame. If your rack layout or power budget requires the distribution function in a single enclosure footprint, the SY125K250DR-PD (sometimes searched as SY125K250DR PD) is the correct SKU.

Jerry Tildsen

The SY125K250DR-PD sits at the intersection of two hard requirements in large-scale data center power design: you need enough headroom to grow, and you need to service the UPS without scheduling a maintenance window that means downtime. The 125kW-to-250kW scalability range and the factory-integrated right-mounted maintenance bypass both address these directly in a single frame — that combination is what differentiates this SKU from base Symmetra PX configurations.

Technical Highlights:

• Scalable Capacity (125kW–250kW): Starting at 125kW with a 250kW ceiling means you're not paying for capacity you don't need at contract signing — add modules as actual load grows, which is the correct way to deploy modular UPS at this power class.
• Right-Mounted Maintenance Bypass: Side-mounted bypass matters in row-based data center deployments where aisle width is constrained. Front-access-only bypass designs force unsafe workarounds in high-density corridors — this configuration avoids that entirely.
• Integrated Distribution Panel (-PD): Folding distribution into the UPS frame eliminates a separate PDU enclosure, shrinks the inter-cabinet cabling run, and reduces the number of breaker panels to manage — meaningful in dense footprints where every rack unit and cable path counts.

Deployment Considerations:

• Confirm floor load rating before installation — a fully populated Symmetra PX 250kW frame with battery cabinets is substantial. Raised floor or structural slab reinforcement is often required and is frequently overlooked in early site planning.
• The -PD distribution configuration locks in a specific output circuit topology. If your PDU requirements change post-installation, reconfiguring distribution inside the frame is not a field operation — plan the circuit count and breaker sizing before the unit ships.

The SY125K250DR-PD is the right specification for a greenfield data center build or a major capacity expansion where the site will be staffed and the load profile is expected to grow over a 3–5 year horizon — the scalability benefit only pays off if the growth actually materializes and the infrastructure plan supports the full 250kW endpoint.
