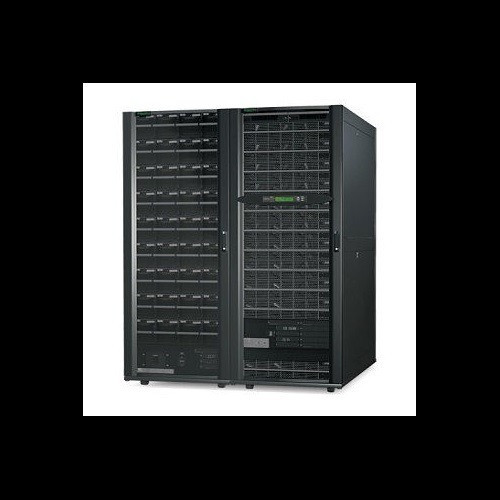

APC by Schneider Electric SY100K100F 100kW Scalable Online UPS
Overview
The APC by Schneider Electric SY100K100F is a 100kW three-phase online UPS built for data centers, colocation facilities, and mission-critical infrastructure where a power interruption or dirty power event is not an option. Operating on double-conversion (online) architecture at 208V, the SY100K100F conditions every watt of power your critical loads consume — input utility power never directly reaches your equipment. The result is true isolation from voltage sags, surges, frequency deviations, and harmonic distortion that would otherwise stress servers, storage arrays, and networking gear. If your facility runs mixed IT and power-hungry compute loads around the clock, this is the class of UPS that belongs upstream of those racks. For organizations evaluating the broader APC by Schneider Electric power protection catalog, the Symmetra PX family represents the company's modular, scalable flagship for enterprise and data center deployments.
Key Features
- Double-Conversion (Online) Architecture: Unlike standby or line-interactive designs that switch to battery only during failures, the SY100K100F continuously regenerates clean output power from DC — meaning your loads never experience a transfer time. For servers running latency-sensitive workloads or storage systems mid-write, this matters far more than most buyers realize until they've had a near-miss with a line-interactive unit during a voltage sag.
- 100kW Scalable Capacity: The Symmetra PX starts at 100kW and scales to 100kW — meaning you can right-size the initial deployment and add power modules as load grows without purchasing a new frame or recabling your PDUs. This is the correct architecture for phased data center buildouts where you need to commit to a floor footprint today but can't predict load growth precisely.
- 208V Output: Native 208V three-phase output aligns with the standard PDU and server PSU configurations in North American enterprise data centers. You're not buying a transformer to make this work with your existing rack infrastructure.
- Modular Design for User-Replaceable Components: Battery modules and power modules can be swapped without taking the UPS offline. In a 24/7 data center environment, mean time to repair drops dramatically when a technician can pull and replace a failed module during production hours rather than scheduling a maintenance window.
- Automatic Battery Self-Test: The SY100K100F runs periodic self-tests on battery health and flags degraded modules before they become a runtime problem. In a facility where the UPS might not be called on for weeks at a time, proactive battery monitoring is the difference between a known-good runtime reserve and an unpleasant surprise during a real outage.
- Low Harmonic Distortion and Advanced Power Conditioning: High harmonic distortion on the input side can cause problems with generators and utility feeds. The Symmetra PX is engineered for low input harmonic distortion, which matters particularly when the UPS feeds a generator-backed system — poorly conditioned loads can destabilize generator frequency during transfer.
- Adjustable Voltage Sensitivity: In facilities with known power quality issues — industrial campuses, older buildings with undersized distribution, or sites near heavy manufacturing — adjustable voltage sensitivity lets you tune how aggressively the UPS responds to line deviations rather than accepting the factory default that may cause unnecessary battery cycling.
- ENERGY STAR Certified (Top 25% Efficiency): At 100kW of load, even a 2–3% efficiency improvement translates to meaningful operating cost reduction over a multi-year deployment. ENERGY STAR certification places this unit in the top quartile for efficiency in its class, which affects both your PUE calculation and your utility bill.
Integration and Compatibility
The SY100K100F is part of the Symmetra PX modular three-phase UPS platform, designed to integrate with APC's EcoStruxure IT management ecosystem for remote monitoring, capacity planning, and predictive maintenance. The 208V output is compatible with standard North American three-phase distribution infrastructure. When sizing this unit for your facility, factor your total IT load including cooling overhead — at 100kW capacity, this UPS is typically sized against 80–90kW of actual IT load to maintain an appropriate N+1 headroom margin. Pair it with a compatible three-phase PDU downstream and consider your power protection architecture holistically — generator transfer time, bypass panel configuration, and static bypass are all relevant design decisions at this scale. A proper rack and enclosure strategy should be defined before committing to floor layout, as the Symmetra PX frame requires dedicated floor space and appropriate cable management for three-phase wiring.
Frequently Asked Questions
Q: What is the difference between double-conversion and line-interactive UPS architecture for the SY100K100F?
A: Double-conversion means the SY100K100F continuously converts incoming AC power to DC and back to AC, so your loads always run on regenerated, conditioned power — never directly from the utility. Line-interactive UPS units only switch to battery during outages and pass utility power through (with limited conditioning) the rest of the time. For data centers and mission-critical equipment, double-conversion eliminates transfer time entirely and provides superior isolation from power quality events.
Q: Can the SY100K100F be scaled beyond 100kW?
A: The SY100K100F model is rated and scalable to 100kW within its frame. If your load requirements will exceed 100kW, you would need to evaluate a higher-capacity Symmetra PX configuration or a parallel UPS architecture. Consult with a power systems engineer before committing to a single-frame solution for loads projected to grow past this threshold.
Q: Does the SY100K100F support hot-swappable battery replacement?
A: Yes. The Symmetra PX modular architecture supports user-replaceable battery modules without requiring a system shutdown. This is a significant operational advantage in data center environments where maintenance windows are difficult to schedule.
Q: What output voltage does the SY100K100F provide?
A: The SY100K100F operates at 208V, which is the standard three-phase voltage for North American enterprise data center environments. Verify your PDU and server PSU input specifications before installation to confirm compatibility.
Q: Is the SY100K100F ENERGY STAR certified?
A: Yes. The APC Symmetra PX 100kW is ENERGY STAR certified, placing it in the top 25% of UPS efficiency in its market segment. This directly affects your facility's PUE and operating costs over the life of the deployment.
Q: What is included with the SY100K100F and does it include startup service?
A: Per the product name, the SY100K100F includes startup service. Confirm exact startup service terms and scope with your sales representative prior to purchase, as startup service inclusions can vary by configuration and region.
The SY100K100F is one of those UPS platforms where the modular architecture isn't just a marketing point — it genuinely changes how you plan and operate a data center power deployment. At 100kW with double-conversion online topology, this unit sits at the threshold where power quality becomes as important as runtime, and the Symmetra PX's continuous DC bus addresses that directly.
Technical Highlights:
- Double-Conversion Online Topology: Zero transfer time to battery — your 208V loads never see the utility waveform directly. Critical for hyperconverged infrastructure and storage arrays where even a 4ms transfer can trigger a fault condition.
- ENERGY STAR Top-25% Efficiency: At 100kW continuous load, efficiency gains compound fast. A unit in the top 25% of its class versus a mid-efficiency competitor can save tens of thousands of dollars in electricity costs over a 5–7 year deployment lifecycle — not counting cooling load reduction from lower heat dissipation.
- Scalable Modular Architecture: The ability to add power capacity within the existing frame without recabling is the defining reason to choose Symmetra PX over a fixed-capacity tower UPS at this power level. Phase one at 60kW actual load, scale to 100kW as you fill racks — without a truck roll for a new unit.
Deployment Considerations:
- At 100kW, three-phase input wiring, bypass panel design, and coordination with your generator transfer switch need to be engineered before the unit arrives on-site. The included startup service should be used — this is not a plug-in installation.
- Adjustable voltage sensitivity is a real tuning parameter, not just a checkbox. In facilities with generator-backed power, set sensitivity conservatively on initial commissioning and tighten only after observing actual line quality under load — overly aggressive sensitivity settings cause unnecessary battery cycling on generator power.
The SY100K100F is the right choice for a mid-size enterprise data center or colocation cage build-out in the 60–90kW IT load range where you need room to grow, can't afford a maintenance window for battery replacement, and are operating on a 208V three-phase distribution backbone. It is not the right call for a single-server room or branch office — that load profile belongs on a single-phase or smaller three-phase unit where you're not paying for frame capacity you'll never use.
