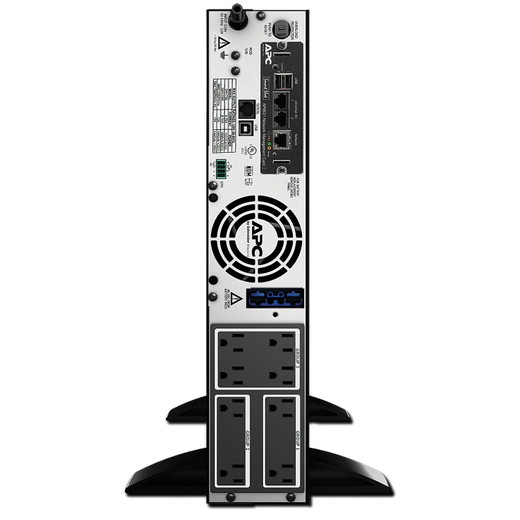

APC by Schneider Electric SMX1500RMNCUS 1500VA Rack/Tower LCD UPS with Network Card

Overview

The APC Smart-UPS X SMX1500RMNCUS is a 1500VA / 1000W line-interactive uninterruptible power supply built for IT closets, security head-end rooms, and surveillance equipment racks where a single power event can cost hours of footage or trigger a false-alarm cascade. It ships with an integrated network management card — an uncommon inclusion at this capacity tier — letting network and security admins monitor runtime, battery health, and load levels without a separate card purchase. The convertible rack/tower form factor means it installs cleanly into a 2U rack slot today and stands vertically in a communications closet tomorrow, without re-cabling.

For security integrators speccing surveillance power products, the SMX1500RMNCUS sits in a practical sweet spot: enough runtime and wattage to carry a mid-size NVR stack through a planned generator transfer, and enough intelligence to shut down gracefully when an extended outage exceeds battery capacity. Pair it with a PoE switch on the same protected circuit and you have a coherent power continuity layer for the entire camera head-end.

Key Features

• 1500VA / 1000W Capacity: Handles the real-world load of a multi-channel NVR, a managed PoE switch, and ancillary gear simultaneously. At 1000W true output, you have headroom above the typical 600–750W draw of a loaded surveillance head-end — critical for avoiding nuisance shutdowns during browndowns.
• 54-Minute Runtime at Half Load: At 500W (half of rated output), the sealed lead-acid battery pack sustains operation for roughly 54 minutes — long enough to outlast most utility blips and complete a clean NVR shutdown sequence before battery depletion on longer outages.
• Rack/Tower Convertible Form Factor: Ships ready to mount in a standard 19-inch rack at 2U height (3.5 in tall, 17.5 in wide, 19.1 in deep). The same chassis converts to a tower footprint for telecom closets or equipment rooms without dedicated rack space. No hardware swap required.
• LCD Front Panel: A front-mounted LCD displays load percentage, battery charge level, estimated runtime, and input/output voltage in real time. For a technician doing a walk-through, this is faster than pulling up a management interface — important during an active power event.
• Integrated Network Management Card — TAA Compliant: The included network card enables SNMP and web-based remote monitoring, load management, and scheduled shutdowns from anywhere on the network. The TAA (Trade Agreements Act) compliance designation matters for federal, state, and municipal security deployments subject to Buy American procurement requirements.
• 120V Input and Output: Operates on standard North American 120V / 50–60 Hz circuits — no step-up transformer or special circuit required. Drop it onto an existing 20A branch circuit shared with your rack and go.
• Sealed Lead-Acid Battery: Maintenance-free VRLA chemistry means no electrolyte checks and no venting requirements. The battery is replaceable in the field without powering down attached equipment, reducing planned maintenance windows.
• 3-Year Limited Warranty: APC backs this unit with a 3-year limited warranty, which is above the 1–2 year terms common at lower price points in the same VA class.

Integration and Compatibility

The SMX1500RMNCUS fits into any standard network video recorder or server rack environment drawing 120V single-phase power. The included network card supports SNMP v1/v2/v3, enabling integration with enterprise monitoring platforms including SolarWinds, Nagios, and PRTG — useful for large-campus security deployments where the UPS is one node among many monitored assets. APC's PowerChute software (available separately) extends this with OS-level graceful shutdown scripting, which pairs well with Windows Server–based VMS platforms that need an orderly shutdown sequence rather than a hard power cut.

At 65 lbs and 19.1 inches deep, verify rack depth and weight capacity before installation. Many two-post open-frame racks cap individual shelf loads at 50 lbs — this unit requires a four-post or shelf-rated two-post rack. Review your rack mounting accessories and weight ratings before ordering.

For deployments running an access control panel or fire system interface on the same protected circuit, confirm the combined VA load stays below 1500VA at peak — access control lock power supplies can spike during simultaneous unlock events.

Frequently Asked Questions

Q: Is the SMX1500RMNCUS TAA compliant?

A: Yes. The SMX1500RMNCUS carries TAA (Trade Agreements Act) compliance, making it eligible for federal, state, and municipal procurement contracts subject to Buy American or TAA requirements.

Q: Does the SMX1500RMNCUS come with a network management card, or is that sold separately?

A: The network card is included with the SMX1500RMNCUS as part of the standard package. You do not need to purchase a separate card to enable SNMP or web-based remote monitoring.

Q: What is the runtime on the SMX1500RMNCUS at a typical surveillance head-end load?

A: At half load (500W), the unit provides approximately 54 minutes of runtime. A typical mid-size surveillance head-end drawing 400–600W will fall in that range. Runtime decreases as load increases toward the 1000W maximum.

Q: What is the warranty on the SMX1500RMNCUS?

A: APC covers the SMX1500RMNCUS with a 3-year limited warranty.

Q: Can the SMX1500RMNCUS be mounted in a standard 19-inch rack?

A: Yes. It occupies 2U (3.5 inches) of rack space in a standard 19-inch rack. At 65 lbs, verify that your rack and shelf can handle the weight — four-post racks or rails rated for this load are recommended.

Q: Can the battery be replaced without powering down connected equipment?

A: The SMX1500RMNCUS uses a sealed lead-acid (VRLA) battery designed for hot-swap field replacement, allowing battery maintenance without shutting down attached equipment — an important factor for 24/7 surveillance environments.

James Everett

The SMX1500RMNCUS is one of the few 1500VA units I'd spec without hesitation for a surveillance head-end rack — specifically because of the bundled network card. Most UPS units at this capacity ship card-ready but card-empty, and you're looking at an additional $150–$200 for the management module. APC ships it included here, which changes the total-cost calculus meaningfully when you're deploying this across multiple equipment rooms in a campus security project.

Technical Highlights:

• 1000W True Output: The 1500VA / 1000W rating gives you real watts to work with. A loaded 16-channel NVR with dual drives plus a 24-port PoE switch rarely exceeds 700W — this unit has genuine headroom, not just paper capacity.
• 54-Minute Half-Load Runtime: At 500W draw, you get 54 minutes on battery. That's enough to survive a generator transfer, complete a graceful VMS shutdown, and still have buffer if the generator has a cold-start delay. Plan your load accordingly — every 100W above half load meaningfully compresses that window.
• TAA Compliance + Network Card: For government and education security projects, TAA is often a hard procurement gate. Getting both TAA compliance and the network management card in one SKU avoids a sourcing split between compliant and non-compliant accessories.

Deployment Considerations:

• At 65 lbs and 19.1 inches deep, this unit needs a four-post rack or properly rated rails — do not drop it on a shelf bracket or a two-post rack without checking the weight rating first. A rack failure during an incident is a worse outcome than a power event.
• The sealed lead-acid battery degrades faster in environments above 25°C (77°F). If your equipment room runs warm — common in closets without dedicated CRAC — expect battery capacity to fall below spec before the end of the 3-year warranty window. Budget for earlier replacement or add room cooling.

For a mid-size municipal or campus security deployment — 8 to 16 camera NVR stack, managed PoE switch, access control interface — the SMX1500RMNCUS hits the right capacity, runtime, and remote-management capability without over-speccing into a larger, more expensive unit.
