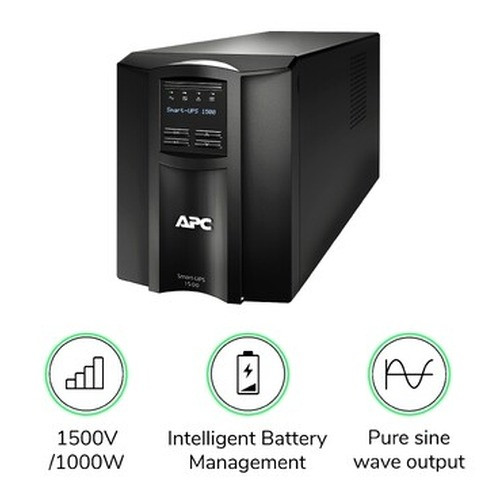

APC Smart-ups 1500VA LCD 100V - SMT1500J

APC by Schneider Electric SMT1500J 1500VA Line-Interactive UPS with LCD

Overview

The APC Smart-UPS SMT1500J delivers 1500VA/980W of line-interactive power protection for servers, network equipment, and security infrastructure operating on Japan's 100V grid. Unlike basic standby UPS units, the SMT1500J uses Automatic Voltage Regulation (AVR) to correct brownouts and overvoltages without switching to battery — extending battery life and keeping connected equipment stable during the grid fluctuations common in commercial environments. The true sinewave output makes it compatible with active PFC power supplies found in modern servers and NVRs, where a simulated or stepped-approximation waveform can cause problems or shorten equipment life.

Key Features

• 980W / 1500VA Capacity: Enough headroom for a mid-density rack — a typical 8-camera NVR with storage, a managed PoE switch, and a firewall will sit comfortably under the 980W ceiling. Know your actual load before sizing; running at 80% or below extends both battery runtime and longevity.
• Line-Interactive Topology with AVR: The SMT1500J continuously regulates input voltage across an 80–123V range (adjustable down to 70V) without touching battery reserves. In regions with unstable utility power, this matters: a pure standby UPS would cycle batteries constantly under the same conditions.
• True Sinewave Output: Active PFC power supplies — standard on enterprise servers, Axis/Hanwha NVRs, and modern switching gear — require a clean sinewave. The SMT1500J delivers one, eliminating the compatibility asterisk that follows most line-interactive UPS units.
• 8 x NEMA 5-15 Output Receptacles: All eight outlets are protected; no need to prioritize which devices get surge-only versus battery-backed connections. Single input is NEMA 5-15, so standard 100V Japanese outlets feed it directly.
• Runtime: 7 min at full load / 24 min at half load: At full 980W draw, expect roughly 7 minutes — enough for a controlled shutdown sequence. Drop to half load (~490W) and you get about 24 minutes, which covers most brief utility outages without touching the shutdown script.

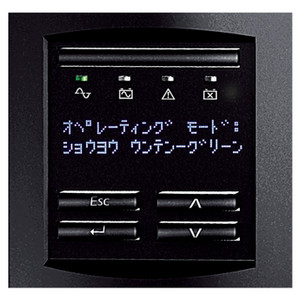

• LCD Display with Audible Alarm: The front-panel LCD shows input/output voltage, load percentage, battery charge, and runtime remaining — no management software required for day-to-day status checks. The 45 dBA audible alarm is noticeable in a server room without being disruptive in adjacent office spaces.
• RS-232 and USB Management Ports: Both interfaces are standard on the SMT1500J, supporting APC PowerChute software for graceful OS shutdown and integration with building management or DCIM platforms. The included serial cable and 4-pin USB Type B port cover both connection paths.
• SmartSlot Expansion: One open SmartSlot accepts APC network management cards, enabling SNMP monitoring, remote reboot, and email alerting — relevant for unmanned equipment rooms where someone needs to know about a power event before the batteries run dry.
• 459-Joule Surge Rating with Circuit Breaker: The integrated surge suppressor handles transient spikes up to 459 joules; the resettable circuit breaker eliminates the fuse-replacement issue common on cheaper units.
• 4-Hour Recharge Time: After a full discharge, the SMT1500J is back to full capacity in 4 hours — faster than many comparably sized UPS units, which matters in environments with recurring outages.

Integration & Compatibility

The SMT1500J is designed for Japan's 100V/50-60Hz grid. It accepts input from 80–123V (adjustable to 70V), making it tolerant of the voltage sag common in commercial buildings during high-demand periods. The RS-232 and USB interfaces support APC PowerChute Personal Edition and Business Edition, as well as third-party NMC software via SNMP when a SmartSlot network card is installed. The unit meets UL 1449, UL 1778, VCCI Class A ITE, RoHS Exemption 7b, and REACH compliance standards. Operating temperature range is 32–104°F (0–40°C) at 0–95% non-condensing humidity.

Frequently Asked Questions

Q: Is the SMT1500J compatible with active PFC power supplies?

A: Yes. The SMT1500J outputs a true sinewave, which is required for proper operation with active PFC power supplies used in most modern servers and network equipment.

Q: What is the runtime at full load for the SMT1500J?

A: Approximately 7 minutes at full 980W load. At half load (around 490W), runtime extends to approximately 24 minutes. Actual runtime depends on battery condition and connected load.

Q: Can the SMT1500J be monitored remotely?

A: Remote monitoring requires adding an optional APC network management card (sold separately) into the onboard SmartSlot. With a card installed, SNMP-based monitoring, email alerts, and remote management are available. Local management is handled via RS-232 or USB with APC PowerChute software.

Q: What input voltage does the SMT1500J require?

A: The SMT1500J is designed for Japan's 100V grid, with a standard operating input range of 80–123V AC (adjustable to 70V minimum). It is not intended for 120V North American or 230V European markets.

Q: What is the warranty on the SMT1500J?

A: APC provides a 2-year limited manufacturer warranty on the SMT1500J.

Q: How long does the battery take to recharge after a full discharge?

A: The SMT1500J recharges to full capacity in approximately 4 hours following a complete discharge.

Karl Wilson

The SMT1500J is one of the more thoughtfully spec'd UPS units in the 1500VA class for Japan-market deployments — specifically because of the true sinewave output paired with AVR. Most integrators overlook the sinewave requirement until they start seeing unexplained server reboots or PSU failures on active PFC equipment. That spec alone justifies the price delta over stepped-approximation competitors.

Technical Highlights:

• True Sinewave at 100V: Critical for any rack with active PFC PSUs — servers, NVRs, and modern switching gear all benefit. A simulated sinewave under the same load can cause the PFC circuit to draw excessive current or shut down entirely.
• AVR Range 80–123V (adjustable to 70V): The SMT1500J absorbs a wide input swing without touching battery. In commercial buildings with long distribution runs or shared utility feeds, this is the difference between batteries that last 3–4 years and ones that degrade in 18 months from constant cycling.
• 459-Joule Surge / Resettable Breaker: The circuit breaker eliminates a common field headache — no carrying spare fuses for a UPS cabinet. The 459-joule rating is adequate for typical transients; it is not a substitute for a dedicated surge arrestor on the service entrance if the site has a history of direct lightning events.

Deployment Considerations:

• At 61.95 lbs, the SMT1500J is a tower unit — verify floor or shelf load ratings before installation, and plan for two-person handling on rack-adjacent deployments.
• The single open SmartSlot is the network monitoring path — budget for a network management card if remote visibility is a requirement. Without it, management is local-only via USB/RS-232, and you will not get SNMP traps or email alerts on a power event.

This unit is the right call for a Japan-market server room or security head-end running 100V equipment with active PFC PSUs, where AVR-protected sinewave power and a path to SNMP monitoring matter more than raw capacity.
