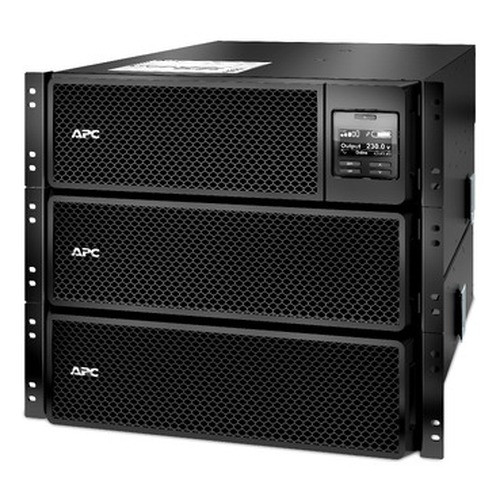

APC Smart-ups SRT 8000VA 208V IEC - SRT8KXLT-IEC

APC by Schneider Electric SRT8KXLT-IEC Online Double-Conversion UPS 8kVA/8kW 208V IEC

The SRT8KXLT-IEC is an 8 kVA / 8,000 W double-conversion online UPS built for mission-critical loads — NVR server rooms, network operations centers, and enterprise security infrastructure where even a brief power interruption means lost footage, failed access events, or dropped network segments. Unlike standby or line-interactive designs that only switch to battery on a fault, true online double-conversion topology means every watt delivered to your equipment has already been regenerated by the inverter. The grid never touches your load directly. If you're protecting a network video recorder array or a dense PoE switch stack running 24/7, that distinction matters.

Overview

The SRT8KXLT-IEC delivers full sine wave output at 208–240V with IEC outlet configuration — the standard choice for rack-mounted servers, managed switches, and enterprise-class surveillance appliances. It accepts an unusually wide input voltage window (100–275V), which means it can stabilize power in facilities where incoming voltage wanders significantly before resorting to battery. Built-in Automatic Voltage Regulation (AVR) actively corrects voltage sags and swells without touching the battery, which matters for battery longevity in sites with chronic power quality issues. This is a mature platform from the APC by Schneider Electric Smart-UPS SRT line, designed around serviceability and runtime scalability rather than lowest upfront cost.

Key Features

• Double-Conversion Online Topology: The inverter is always the output source — no transfer time on power failure because there is no transfer. For UPS-protected surveillance servers and access control panels, this eliminates the brief voltage dropout that can force BIOS reboots or trip RAID controllers during grid transients.
• 8 kVA / 8,000 W Output: Full unity power factor (1.0 — 8 kVA equals 8,000 W) means no derating when your load is resistive or has a high power factor. A typical enterprise rack pulling 5–6 kW of servers, storage, and switching has comfortable headroom without pushing this unit to its limit.
• 98.5% Efficiency: At full load, the unit wastes roughly 120W as heat — low for a double-conversion design. Over a year of continuous operation that reduces both cooling demand and electricity cost compared to legacy online UPS designs running at 92–94% efficiency.
• Wide Input Voltage Range (100–275V AC): Accepts everything from undervoltage brownouts to European high-line without switching to battery. Deployed in buildings with aging electrical infrastructure or generator-fed panels, this range prevents unnecessary battery cycling that shortens service intervals.
• AVR (Automatic Voltage Regulation): Corrects voltage anomalies in real time through the rectifier stage before the inverter rebuilds the output waveform. Connected equipment sees clean 208–240V regardless of what the incoming feed is doing within the 100–275V window.
• 480 J Surge Energy Rating: Provides meaningful protection against transient spikes on the input feed. In facilities near loading docks, HVAC compressor banks, or elevator motor rooms where inductive switching transients are common, this absorbs energy that would otherwise stress sensitive power supplies.
• Emergency Power Off (EPO): Hard-wired EPO terminal allows a remote emergency shutoff — required by NFPA 75 and NEC 645.10 for IT equipment rooms above certain thresholds. Integrating this with your building's emergency systems is straightforward with EPO built in at this output class.
• Output THD 2% (Pure Sine): Under non-linear loads — switched-mode power supplies in servers and networking gear — the output stays at 2% THD or better. Higher distortion can cause premature component failure in sensitive electronics; 2% is well within what modern server PSUs are rated to handle.
• Crest Factor 3:1: Handles loads that draw sharp current peaks (like switching power supplies), which can stress inverters rated for lower crest factors. 3:1 means the unit won't clip or distort waveform under realistic mixed-load rack configurations.
• 55 dB Noise Level: Audible in a quiet server room but consistent with standard UPS equipment at this output class. If this unit will be installed in an occupied office environment or a shared IT closet, plan for the acoustic footprint.
• Input Frequency 40–70 Hz: Accepts both 50 Hz and 60 Hz grids without reconfiguration. Useful in international deployments or for facilities running generator sets that don't hold tight frequency regulation during startup or load transitions.

Integration and Compatibility

The SRT8KXLT-IEC uses IEC outlet configuration on the output side, which directly serves IEC-inlet rack-mount devices — enterprise switches, 1U/2U servers, NVR appliances, and managed PoE switches protecting large camera deployments. The 208V nominal output is standard for North American data center and server room environments where 208V/20A circuits are common. For sites running 240V distribution (common in international or some US industrial deployments), the 208–240V output range keeps this unit compatible without step-down transformers. The EPO terminal integrates with building management systems and emergency shutoff circuits. Runtime can be extended by pairing with compatible external battery modules — confirm compatibility with APC's SRT line battery expansion accessories when specifying total runtime at your calculated load. For PoE switch infrastructure protecting large surveillance deployments, budget the connected load carefully: a fully loaded 48-port PoE+ switch can draw 600–700W at peak, and multiple switches plus NVR storage add up quickly against an 8,000W budget.

Frequently Asked Questions

Q: What is the difference between double-conversion online topology and line-interactive?

A: In a double-conversion design like the SRT8KXLT-IEC, the inverter is always active and always powering the output — the load never draws directly from the AC input. Line-interactive UPS units only switch to inverter when the input falls out of tolerance, introducing a brief transfer time (typically 2–6ms). For servers, NVRs, and access control systems that can fault or reboot on even short voltage dropouts, double-conversion eliminates the risk entirely.

Q: Does the SRT8KXLT-IEC support external battery expansion?

A: The Smart-UPS SRT platform is designed for external battery module (EBM) expansion to extend runtime. Verify specific EBM model compatibility with APC's SRT series documentation for your required runtime at your calculated load.

Q: What output voltage does the SRT8KXLT-IEC deliver?

A: The unit delivers 208–240V AC output at 50/60 Hz. In North American data center and server room environments, 208V is the standard operating voltage for rack-mount equipment on 208V/20A circuits.

Q: Does the SRT8KXLT-IEC include an EPO (Emergency Power Off) terminal?

A: Yes. The SRT8KXLT-IEC includes a hard-wired EPO terminal for integration with building emergency shutoff systems — relevant for compliance with NFPA 75 and NEC 645.10 in dedicated IT equipment rooms.

Q: What is the efficiency rating of the SRT8KXLT-IEC?

A: The unit is rated at 98.5% efficiency at full load — high for a true double-conversion online UPS, which typically runs 92–96% in older designs. At 8,000W continuous output, that translates to roughly 120W dissipated as heat rather than several hundred watts, reducing cooling load in the installation space.

Q: What surge energy rating does the SRT8KXLT-IEC carry?

A: The surge energy rating is 480 joules. This provides input surge suppression against transient spikes common in industrial facilities and buildings with large motor loads on the same electrical distribution.

Eden Phillips

The SRT8KXLT-IEC hits a spec that I keep coming back to in enterprise security deployments: 98.5% efficiency at full load on a true double-conversion design. Most online UPS units at this output class run 93–95%, and the heat penalty compounds fast in a sealed IDF closet or a rack room with marginal cooling headroom. At 8,000W continuous output, that half-percent improvement over a typical competitor spec is roughly 300W less heat you're pumping into the room per unit — meaningful when you're stacking UPS, switching, and compute in the same space.

Technical Highlights:

• Double-Conversion, Zero Transfer Time: The inverter never switches off — the 8,000W output is always inverter-sourced, so there is no 2–6ms gap when input power fails. NVR appliances and access control servers that would fault on a line-interactive transfer stay up cleanly.
• 100–275V Input Window: This is a wide range for a unit at this class. Generator-fed panels during startup, aging building distribution, and international high-line inputs all fall within spec without battery intervention. Fewer unnecessary battery cycles means longer battery service intervals.
• EPO Terminal: Hard-wired EPO is built in — not an add-on. For dedicated IT equipment rooms required to comply with NEC 645.10, this is a code requirement, not optional. Wire it to your building's emergency shutoff circuit at installation time.

Deployment Considerations:

• The 55 dB operating noise is consistent with equipment at this output class but should factor into placement decisions. In a shared office/IDF environment, acoustic isolation or a dedicated equipment room is worth the conversation with the facilities team before racking this unit.
• IEC output configuration serves rack equipment directly, but confirm your specific PDU or device inlet types against the SRT8KXLT-IEC outlet complement before purchase — particularly if your load mix includes hardwired or twist-lock circuits that require a downstream PDU with the correct receptacles.

This unit is the right specification for a centralized security operations room protecting 50–150 cameras across multiple NVR servers, a dense managed switching stack, and an access control server — the load profile where 8,000W of double-conversion capacity with a clean 208V sine wave is the technically correct answer, not an overspec.
