APC Smart-ups Line Interactive 1500VA Tower 120V 8X NEMA 5-15R Outlets SMA - SMT1500CNC

APC by Schneider Electric SMT1500CNC Line-Interactive 1500VA Tower UPS

Overview

The APC SMT1500CNC is a 1500VA / 1000W line-interactive tower UPS designed for IT closets, security head-end rooms, and anywhere a clean, regulated 120V supply is non-negotiable. Its true sine wave output and automatic voltage regulation make it a practical fit for power protection deployments where connected loads include switching power supplies, NVRs, or PoE network switches — devices that are sensitive to modified square waves and voltage sag. At 1000W of real power capacity, you have enough headroom to carry a mid-size network video recorder, a managed PoE switch, and ancillary equipment simultaneously, rather than splitting the load across two units.

Key Features

• Line-Interactive Topology with True Sine Wave Output: Line-interactive design corrects voltage sags and swells without switching to battery — the inverter stays in circuit continuously. When a full outage hits, you get a true sine wave on battery, not a stepped approximation. NVRs and active PoE switches with power factor correction circuits handle sine wave cleanly; modified square wave can cause audible transformer hum, erratic fan behavior, and premature PSU wear.
• 1500VA / 1000W Capacity: The 1.44 kVA / 1000W rating means you have real load budget to work with. A 250W NVR, a 150W PoE switch, and 200W of workstation load still leaves 400W of margin — relevant for brownout ride-through when you cannot afford an ungraceful shutdown mid-recording.
• Automatic Voltage Regulation (AVR): AVR corrects incoming voltage between 110V and 125V without touching the battery. Facilities with aging electrical panels or long wire runs frequently see sag to 112–115V during peak HVAC load — AVR absorbs that variation silently, extending battery life by reserving it for true outages.
• 680 J Surge Energy Rating: The 680-joule surge rating handles most common transients from lightning-induced surges on building wiring. For surveillance head-ends with high equipment value density, surge protection at the UPS eliminates the need for a separate surge strip on each device in the rack or tower stack.
• 10ms Transfer Time: The 10-millisecond switchover from AC to battery is fast enough that virtually all ATX power supplies, NVR power supplies, and switch PSUs ride through without a reset. Anything with capacitors sized for the standard 16ms half-cycle will not notice the transition.
• Input Voltage Range 110–125V / 50–60Hz: The wide input window accommodates both 50Hz and 60Hz grid infrastructure, which matters for deployments in mixed environments or when equipment is being repurposed between facilities. No reconfiguration needed when moving units between sites running different grid frequencies.
• Output THD ≤5%: Total harmonic distortion held to 5% or less protects downstream equipment with inductive loads — motors in pan-tilt units, motorized lens cameras, door hardware with solenoids — from cumulative heating caused by harmonic currents.

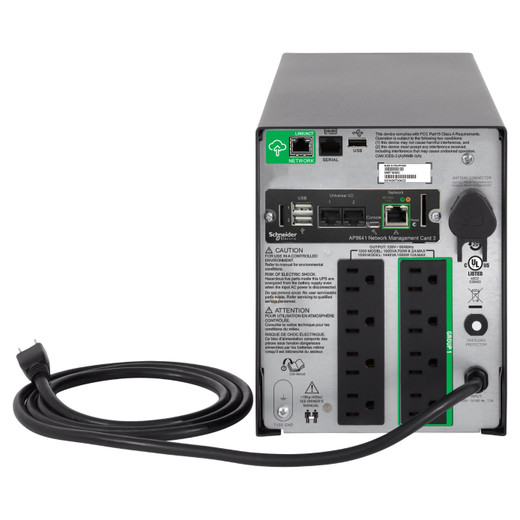

• 8x NEMA 5-15R Outlets: Eight individually accessible standard outlets accommodate a realistic head-end equipment count without requiring a PDU. All outlets are on the UPS-protected circuit — useful in closets where space for a separate PDU is limited.
• 45 dB Noise Level: At 45 dB, this unit is audible in a quiet office but sits well within acceptable limits for an IT closet or server room. For open-office or reception deployments, consider a dedicated equipment room or acoustic enclosure.
• Dual Alarm Modes — On Battery and Low Battery: Audible alarms fire on battery transfer and again at low battery threshold, giving staff a clear, two-stage warning before a graceful shutdown is required. No silent failure modes — if you're losing power, the unit tells you.
• 225 BTU/h Heat Dissipation: Heat load of 225 BTU/h is modest for a UPS at this capacity class. Standard IT closet ventilation handles it without supplemental cooling — plan for roughly 19 BTU/h per 100W of rated output as a rule of thumb when sizing room cooling for multiple units.

Integration and Compatibility

The SMT1500CNC's NEMA 5-15R outlets accept any standard North American plug, making it compatible with virtually all commercial PoE network switches, NVRs, workstations, and access control panels without adapters. The line-interactive topology is well-suited to upstream deployment in a IP camera system head-end — protecting the recording and switching infrastructure while individual cameras draw PoE from the protected switch. When sizing runtime, calculate the actual watt draw of your connected load (not VA) and divide into the UPS watt-hour capacity; manufacturer runtime curves for specific load profiles are available from APC's product documentation. For remote monitoring and graceful OS shutdown, verify that your chosen network management card or USB/serial interface is compatible with your OS before deployment — connectivity options vary by UPS family configuration.

Frequently Asked Questions

Q: What is the difference between the 1500VA rating and the 1000W output power on the SMT1500CNC?

A: VA (volt-amperes) is the apparent power, and watts is real power — the SMT1500CNC's 1000W real power rating is what limits your connected load in practice. Most modern IT equipment has power factors between 0.7 and 0.95, so a 1500VA UPS realistically supports 1000–1350W of actual load. Use wattage, not VA, when calculating whether your equipment fits.

Q: Does the SMT1500CNC produce a true sine wave on battery, or a modified square wave?

A: The SMT1500CNC produces a true sine wave output on battery. This is important for loads with active power factor correction (PFC) — including most modern server and NVR power supplies — which can behave erratically or shut down on modified square wave UPS units.

Q: What input voltage range does the SMT1500CNC accept before switching to battery?

A: The SMT1500CNC accepts input voltage from 110V to 125V without switching to battery, thanks to automatic voltage regulation (AVR). The inverter corrects voltage within that range continuously, reserving battery capacity for true outages.

Q: How quickly does the SMT1500CNC switch to battery during a power failure?

A: Transfer time is 10 milliseconds. This is fast enough that virtually all ATX and active-PFC power supplies in commercial networking and recording equipment will bridge the gap without a reset or shutdown.

Q: What outlet types are on the SMT1500CNC, and how many?

A: The SMT1500CNC has 8 NEMA 5-15R outlets — standard North American 15-amp receptacles. All outlets are on the UPS-protected circuit.

Q: What is the audible noise level of the SMT1500CNC under normal operation?

A: The SMT1500CNC operates at 45 dB under normal conditions. This is appropriate for an IT closet or equipment room but noticeable in a quiet office environment.

Ted Perry

The SMT1500CNC sits in a sweet spot for security head-end rooms: 1000W of real power on a true sine wave, with a 10ms transfer time that won't flicker a single camera feed during the switchover. I've seen integrators try to cut costs with a modified square wave UPS on NVR deployments — the result is usually a PSU fan that screams under load and a shortened capacitor lifespan. The sine wave output on this unit eliminates that entirely.

Technical Highlights:

• True Sine Wave on Battery: 5% THD maximum output keeps PFC-equipped NVR and switch power supplies stable — no harmonic heating, no erratic shutdown behavior under load transfer.
• AVR Input Window (110–125V): Corrects voltage sag and swell passively without touching the battery, which directly extends battery service life in facilities with marginal electrical distribution.
• 680J Surge Energy Rating: Covers the most common building-wiring transients — eliminates the need for a separate surge strip on each device in a compact head-end stack.

Deployment Considerations:

• Size your connected load in watts, not VA — the 1000W real power ceiling is the binding constraint. A single 8-channel NVR plus a 24-port PoE switch can approach 400–500W combined; leave margin for battery chemistry degradation over the unit's service life.
• At 45 dB, this unit is clearly audible in a quiet space. Plan for an enclosed equipment room or telecom closet — don't drop it next to a reception desk without acoustic isolation.

For a surveillance head-end protecting an NVR, a managed PoE switch, and access control hardware in a single IT closet, the SMT1500CNC delivers the waveform quality and load capacity to run that infrastructure through a full outage without a graceful-shutdown scramble.
