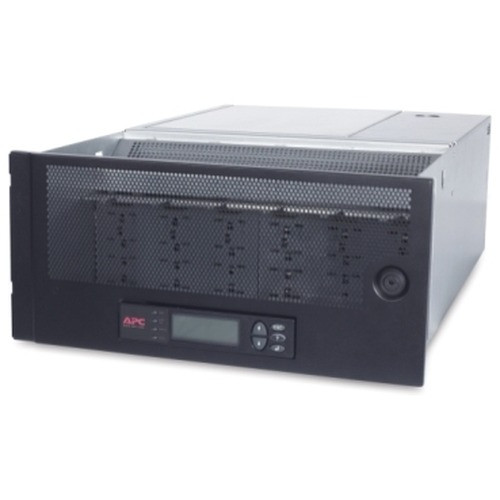

APC Modular Rackmounted IT Power Distribution Unit 72KW 200A 208V 18 Pole 5U RAC - PDPM72F-5U

APC by Schneider Electric PDPM72F-5U Rack PDU

Overview

The APC PDPM72F-5U is a 5U rackmount, monitored Power Distribution Unit (PDU) designed for high-density IT environments. It delivers 72kW of power at 200A and 208V, providing critical power monitoring and management capabilities for sensitive data center equipment. This unit is ideal for enterprise racks where granular power data is required to optimize load balancing and prevent overloads.

Compatibility

This PDU is designed for standard 19-inch rack enclosures common in enterprise data centers and server rooms. It supports a 5-wire (3 Phase + Neutral + Ground) input connection, compatible with 208V, 60Hz power systems. While not specific to a particular server or network device manufacturer, its universal rackmount form factor and standard power input make it suitable for integration into a wide range of IT infrastructure deployments.

Installation Notes

Installation requires a qualified technician familiar with high-amperage, three-phase power distribution. The unit utilizes a 5-wire input connection (3PH+N+G) and requires a 200A circuit breaker. Its physical dimensions are 483 mm wide, 711 mm deep, and 229 mm high, fitting standard 5U rack spaces. The black product color ensures a clean aesthetic within the rack.
