APC by Schneider Electric SRYLPD7 Concise Descriptor

Overview

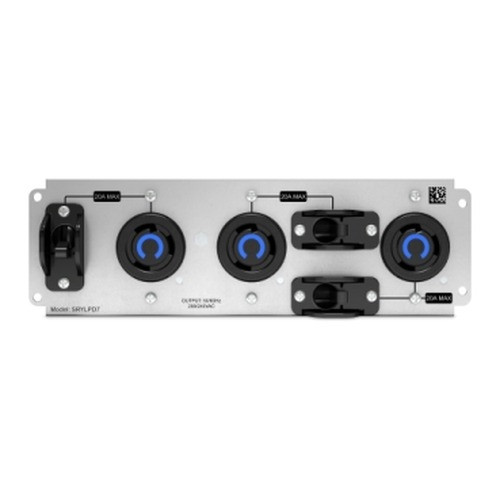

The APC by Schneider Electric SRYLPD7 is a backplate kit designed to expand the output capacity of select APC Smart-UPS Modular Ultra series UPS systems. It provides three NEMA L6-20R locking receptacles, enabling you to connect higher-draw equipment or more devices to your existing modular UPS infrastructure. This kit is essential for deployments requiring robust power distribution for sensitive IT equipment, server racks, or automation systems where reliable, high-capacity power is critical. The SRYLPD7 model specifically addresses the need for 20A, 208V/240V connections.

Compatibility

This backplate kit is engineered for direct integration with the APC Smart-UPS Modular Ultra series, specifically the 12kW, 20kW, and 40kW models. Verified compatible UPS units include, but are not limited to, the SMTL12KU, SMTL20KU, and SMTL40KU. Ensure your UPS model is part of this modular ultra-high-density line before purchasing.

Installation Notes

Installation requires opening the UPS chassis and connecting the backplate to the internal power bus. The locking NEMA L6-20R receptacles ensure secure connections, preventing accidental disconnections of critical loads. Each receptacle is rated for 20A, but the total output is limited by the UPS unit's overall capacity. Ensure the total load does not exceed the UPS's maximum output current and power rating.
