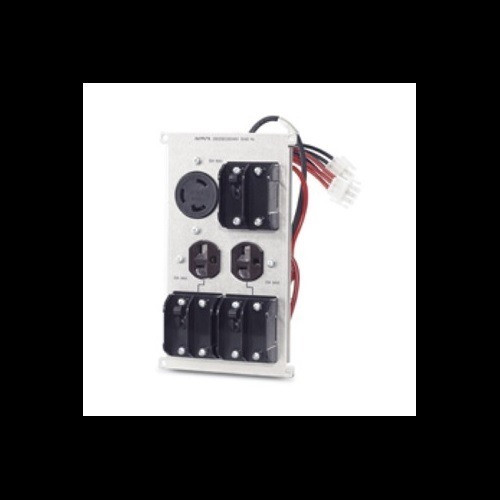

APC Symmetra LX/RM 208/240V Backplate Kit w/(2) 6-20R & (1) L6-30R - SYPD12

APC by Schneider Electric SYPD12 Concise Descriptor

Overview

The APC by Schneider Electric SYPD12 is a backplate kit designed to integrate specific power outlets into compatible Symmetra LX/RM 208/240V Uninterruptible Power Supply (UPS) systems. This kit provides a direct, secure connection point for high-draw equipment within a rack environment, ensuring reliable power distribution from the UPS. It's intended for deployments where standard UPS outlets are insufficient or require specific connector types for critical IT infrastructure.

Compatibility

This backplate kit is specifically designed for APC Symmetra LX and Symmetra RM 208/240V UPS models. It is not a standalone power distribution unit and requires installation into a compatible Symmetra chassis. Verify your Symmetra model number to ensure compatibility before purchase.

Installation Notes

Installation requires opening the UPS chassis and connecting the backplate to the internal power bus. This procedure should only be performed by qualified personnel familiar with high-voltage electrical systems and UPS maintenance. Ensure the UPS is powered off and disconnected from all power sources before beginning installation. Torque specifications for internal connections must be adhered to as per the Symmetra UPS service manual.

What's in the Box

• 1x SYPD12 Backplate Kit
• Mounting hardware
