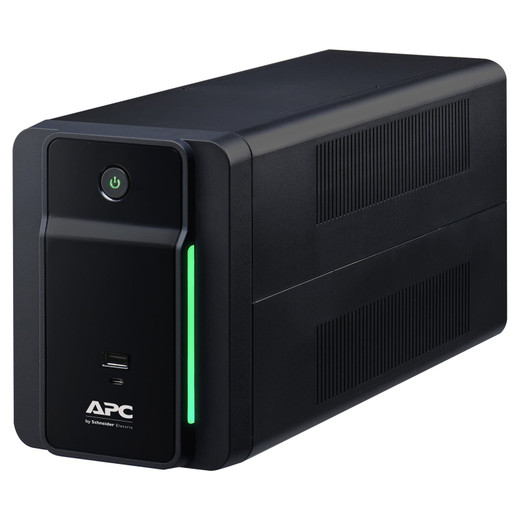

APC by Schneider Electric BVK950M2 Tower UPS — 950VA/480W with USB-A+C Charging
Overview
The APC BVK950M2 is a 950VA/480W tower-form uninterruptible power supply built for small offices, remote workstations, and distributed security equipment rooms where brief power disruptions — sags, surges, outages — can interrupt critical systems. It provides six NEMA 5-15R protected outlets, a 350-joule surge energy rating, and dual USB charging ports (Type-A and Type-C) on a single compact tower footprint. If you're protecting NVRs, access control servers, or PoE switch stacks in a small IDF closet, this is sized for that load tier.
The BVK950M2 sits in APC's Back-UPS line, balancing straightforward installation with a meaningful set of power conditioning features for environments that can't afford downtown from power fluctuations on the utility side.
Key Features
- 950VA / 480W Output Capacity: At 480W true power output, this unit comfortably handles a small NVR with attached drives, a managed PoE switch, and a workstation simultaneously. Size your connected load to 80% or less of rated wattage — that's roughly 384W — to preserve runtime headroom and extend battery life.
- Stepwise Approximated Sine Wave Output: The BVK950M2 produces a stepped waveform on battery. This is appropriate for most offline/standby-tolerant loads including computers, NVRs, switches, and access control panels. Note: active PFC power supplies (common in higher-end servers and some workstations) require a pure sine wave UPS — verify your load specs before deploying.
- Wide Input Voltage Window (108–150V): The unit tolerates input voltage between 108V and 150V before switching to battery. That 42-volt window means normal utility browndowns and over-voltage events get corrected without consuming battery runtime — relevant in older commercial buildings where line voltage can sag under load.
- 350-Joule Surge Energy Rating: The integrated surge suppressor absorbs 350 joules of transient energy, protecting downstream equipment from voltage spikes on the AC line. Also includes network surge protection, so a connected Ethernet run (modem, switch uplink) gets clamped as well.
- 6x NEMA 5-15R Outlets: Six standard 15-amp receptacles provide enough outlets for a full small-system stack without a separate PDU. All six are on the protected/battery-backed bus — there is no always-on surge-only outlet split on this model, so plan outlet count accordingly.
- Dual USB Charging — Type-A and Type-C: The rear panel includes both a USB-A and a USB-C charging port. Useful for keeping tablets, phones, or small embedded management devices powered without consuming a protected AC outlet.
- Audible Low-Battery Alarm: An audible alert triggers when battery reserve drops to a configured threshold, giving operators time to execute a controlled shutdown before the system goes dark. Pair this with APC's PowerChute software (sold separately) for automated OS-level shutdown sequencing.
- Emergency Power Off (EPO) Support: The BVK950M2 supports EPO functionality, allowing integration with building-level emergency shutoff circuits — a requirement in some data center and server room deployments under electrical codes.
- 50/60 Hz Input and Output: Accepts both 50 Hz and 60 Hz utility input, making it deployable in North American 60 Hz environments and compatible with 50 Hz infrastructure without modification.
- Hardwired / Non-Detachable Power Cord: The input power cord is fixed — not field-replaceable. This simplifies installation (no cord mismatch risk) but means the unit must be returned or serviced if the cord is damaged. Route and protect the cord accordingly during rack or cabinet installation.
Integration and Compatibility
The BVK950M2 is a plug-in tower unit — no rack ears, no rail kit needed. It installs on a shelf, under a desk, or in an equipment closet. The NEMA 5-15P input plug connects to any standard 15-amp branch circuit. For power protection and UPS deployments in distributed security installations, pair this unit with a managed PoE switch to protect the entire camera power distribution stack at once. An APC Back-UPS of this class is also commonly deployed alongside network video recorders to ride through brief outages without losing recording continuity.
APC's PowerChute Personal Edition software (Windows/Linux, downloadable from the manufacturer) communicates with the UPS over the USB connection to enable automated graceful shutdown, runtime logging, and event notification. The USB interface is type-A on the host side. Review APC's compatibility matrix for your OS version before assuming USB-HID shutdown support.
For larger installations requiring pure sine wave output, extended runtime, or rack-mount form factor, consider stepping up within the APC UPS line to the Smart-UPS family, which adds true sine wave output and SNMP/network management card support. The BVK950M2 is the right fit when budget is constrained and loads are offline-tolerant — not when you're running active PFC servers that require clean sine wave on battery.
When This Is the Correct Choice
Deploy the BVK950M2 where you need reliable short-duration bridge power for non-server-class equipment: NVRs, PoE switches, access control servers, and workstations. The 480W capacity and stepwise waveform make it well-matched for IP camera system infrastructure at the edge — remote closets, small branch offices, and standalone kiosk installations. If your equipment list is under 384W (80% of rated) and none of your loads require pure sine wave, this unit fits without compromise.
When to Choose a Different Model
If any load in your stack uses an active PFC power supply — common in tower servers, higher-end workstations, and some NAS units — select a pure sine wave UPS instead. The stepped waveform from the BVK950M2 can cause instability or premature shutdown on active PFC supplies. Similarly, if you need network management (SNMP trap, remote reboot, or integration with a DCIM platform), move to a Smart-UPS variant with an available network management card slot. For environments needing extended runtime beyond what the internal battery provides, APC's Back-UPS Pro models support external battery packs; the BVK950M2 does not.
Frequently Asked Questions
Q: Does the BVK950M2 produce a pure sine wave output on battery?
A: No. The BVK950M2 outputs a stepwise approximated sine wave when running on battery. This is suitable for most computers, NVRs, switches, and access control equipment, but active PFC power supplies require a true sine wave UPS. Verify your load's power supply type before deploying.
Q: How many outlets does the BVK950M2 provide, and are they all battery-backed?
A: The BVK950M2 has six NEMA 5-15R outlets. All six are on the protected bus — there is no surge-only outlet bank. This is useful when you need full battery backup across all connected devices.
Q: What USB ports are available on the BVK950M2?
A: The unit includes both a USB Type-A and a USB Type-C port for device charging. A separate USB connection (Type-A) is also used for PowerChute software communication with a host computer for automated shutdown.
Q: Does the BVK950M2 support Emergency Power Off (EPO)?
A: Yes. The BVK950M2 includes EPO support, allowing it to be wired into a building-level emergency shutoff circuit — a feature relevant for code-compliance in some server room and data closet installations.
Q: What is the surge energy rating on the BVK950M2?
A: The BVK950M2 carries a 350-joule surge energy rating and also includes network line surge protection for a connected Ethernet port.
Q: Can the BVK950M2 be rack-mounted?
A: The BVK950M2 is a tower-form unit and is not designed for rack mounting. It is intended for shelf, floor, or under-desk installation. For a rack-mount UPS at this power tier, consider a different model within APC's Back-UPS or Smart-UPS lineup.
The BVK950M2 gets deployed a lot in distributed security closets — and for good reason. At 480W rated output with a 108–150V input tolerance window, it handles the browndown swings common in older commercial buildings without eating into battery runtime unnecessarily. That wide input window is the spec integrators undervalue most: it keeps the battery reserved for actual outages rather than draining it on every line fluctuation.
Technical Highlights:
- 480W / 950VA Capacity: Sufficient for a standard NVR-plus-switch stack. Keep connected load under 384W (80% of rated) and you'll preserve both runtime and battery longevity — thermal stress on the battery increases sharply when you run close to rated capacity continuously.
- 350J Surge Rating + Network Protection: Both the AC line and a network port are suppressed. In a security closet where the UPS, switch, and NVR all share the same Ethernet segment, the network clamp matters — transients propagate over Ethernet just as readily as over AC.
- EPO Support: Hardwiring the BVK950M2 into a building EPO circuit is straightforward and may be required for insurance or code compliance in server room and IDF closet buildouts. Confirm local AHJ requirements during the design phase.
Deployment Considerations:
- The stepwise waveform is the key constraint to validate upfront. Pull the spec sheet for every load you plan to connect and confirm none of them use active PFC power supplies — particularly any tower servers or higher-end NAS units that might share the closet.
- The input cord is non-detachable. If the closet layout requires a specific cord length or a right-angle plug to clear a wall panel, plan around this before installation — field-swapping the cord is not an option.
The BVK950M2 is a strong fit for small branch office security infrastructure: an NVR, a PoE switch feeding four to eight cameras, and an access control server, all protected in a single unit at an appropriate cost point for that system tier.
