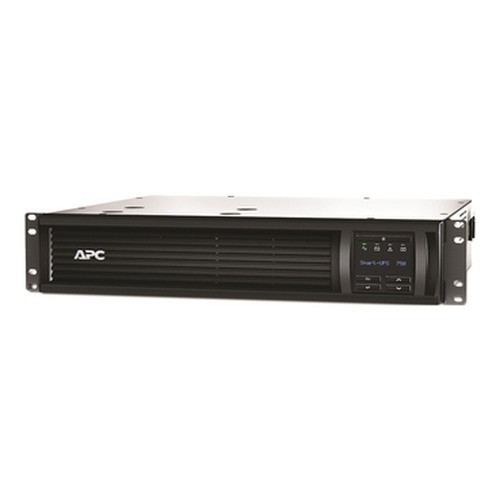

APC by Schneider Electric SMT750RM2UCNC Line-Interactive 750VA 2U Rackmount UPS
Overview
The APC by Schneider Electric SMT750RM2UCNC is a 750VA / 400W line-interactive rackmount UPS designed for IT closets, small server rooms, and security equipment racks that demand genuine sine wave output and automatic voltage regulation in a 2U form factor. At 120V input, it conditions power continuously — not just on battery events — making it a legitimate option for load-sensitive equipment like NVRs, managed PoE switches, and access control servers that react poorly to modified sine wave or unregulated voltage swings. If you're speccing power protection for a surveillance or network rack and need a unit that fits standard 19-inch rails without consuming more than 2U, this is where to start looking at the UPS and power protection category.
Key Features
- Line-Interactive Topology with True Sine Wave Output: Line-interactive means the unit actively regulates voltage on every cycle without switching to battery — your connected load sees stable, clean power even during sags and swells. The pure sine wave output (less than 5% THD) matters for switching power supplies, variable-frequency drives, and any modern server PSU rated for sine wave input. A stepped-approximation or modified sine wave UPS can cause premature PSU wear or erratic shutdowns on these loads.
- 750VA / 400W Capacity: The 400W real-power ceiling is the number to budget against — not the 750VA apparent power figure. A 6-port PoE+ switch drawing 80W plus two NVRs at 50W each sits comfortably within margin. Overloading past 400W triggers the audible alarm and forced bypass, so map your load before you rack it.
- Automatic Voltage Regulation (AVR) — 110–125V Input Window: The AVR circuit corrects input voltages between 110V and 125V without touching the battery. In facilities where utility voltage dips to 110V during peak demand (common in older commercial buildings), AVR prevents unnecessary battery cycling — which directly extends battery service life. Without AVR, a 112V sag would pull every connected device onto battery multiple times per day.
- 680 Joule Surge Energy Rating: The internal surge suppressor absorbs 680 joules before saturation — adequate for routine transient events on a commercial circuit. This is not a substitute for a dedicated whole-panel surge arrestor upstream, but it handles the millisecond spikes that slip past facility-level protection.
- 10ms Transfer Time: When utility power falls outside the operating window, the SMT750RM2UCNC switches to battery within 10 milliseconds. Most enterprise-grade power supplies bridge this gap without a hiccup; consumer-grade or older switching supplies may not. Verify your attached equipment's hold-up time spec if you have concerns.
- 6x NEMA 5-15R Outlets: Six standard 15-amp receptacles cover a typical small rack load — NVR, switch, a couple of encoders or access panels. All six are on battery-backed and surge-protected circuits. No outlet groups for load shedding are indicated in the evidence, so treat all six as equivalent priority.
- 50/60 Hz Input and Output: Accepts both 50 Hz and 60 Hz utility input and delivers the same on output, which matters if the equipment rack is shared across a facility that has mixed power infrastructure or if future relocation is on the table.
- 41 dB Noise Level: At 41 dBA, this unit is audible in a quiet room but not disruptive in a standard IT closet or equipment room with ventilation noise. If it's going in an open office or boardroom AV rack, factor that in — 41 dB is roughly equivalent to a quiet conversation at distance.
- 70 BTU/h Heat Dissipation: Thermal load of 70 BTU/h is modest — about the same as a mid-range managed switch. Standard rack cooling margins will handle it without dedicated attention unless your rack is already thermally marginal.
- Audible Alarms — On Battery and Low Battery: Two distinct alarm states (on-battery and low-battery) give operators an early warning before a shutdown event. In unmanned equipment rooms, pair this with the UPS management interface for remote notification — audible-only alarms are only useful if someone is present to hear them.
Integration & Compatibility
The SMT750RM2UCNC is compatible with standard 19-inch two-post and four-post rack enclosures in a 2U rackmount configuration. The 120V / NEMA 5-15R outlet format aligns with typical North American IT and security rack equipment. For network-managed shutdown and power event logging, APC's SmartConnect or Network Management Card interfaces are the standard integration path — confirm which management options are included or available as accessories before deployment if remote monitoring is a requirement. This unit fits well alongside network video recorders and PoE switching infrastructure in a consolidated security rack. For planning rack power budgets and runtime estimates across multiple UPS units, consult a UPS selection guide before finalizing your equipment list. The 400W capacity and 2U footprint also make it a natural fit in conjunction with PoE switches in edge network closets where space is constrained.
Frequently Asked Questions
Q: What is the real power capacity of the SMT750RM2UCNC, and how do I calculate if my load fits?
A: The SMT750RM2UCNC delivers 400 watts of real power (the 750VA figure is apparent power). Add up the wattage draw of every device you plan to connect — NVRs, switches, encoders, access control panels. Keep total connected load at or below 400W for safe continuous operation. Leave headroom of 20–25% where possible to avoid running the unit near its ceiling under sustained load.
Q: Does the SMT750RM2UCNC output a pure sine wave or a stepped/modified approximation?
A: It outputs a true pure sine wave with less than 5% total harmonic distortion. This makes it compatible with load-sensitive equipment including modern server power supplies, NAS units, and managed switches that specify sine wave input in their power requirements.
Q: What input voltage range will the AVR handle without switching to battery?
A: The automatic voltage regulation circuit handles input voltages between 110V and 125V without drawing on the battery. Voltages outside that window trigger a battery transfer within 10 milliseconds.
Q: How fast does the SMT750RM2UCNC transfer to battery power during an outage?
A: Transfer time is 10 milliseconds. Most enterprise-grade switching power supplies have hold-up times well above 10ms and will bridge this gap without interruption. Check your specific equipment's power supply specifications if continuity is critical.
Q: Is the SMT750RM2UCNC compatible with standard 19-inch rack cabinets?
A: Yes. It is a 2U rackmount unit designed for standard 19-inch rack enclosures, covering both two-post and four-post configurations. Verify mounting rail compatibility with your specific rack before installation.
Q: What audible alarms does the SMT750RM2UCNC provide?
A: Two alarm modes are present: an alarm when the unit is operating on battery power, and a low-battery alarm warning when runtime is nearly exhausted. These provide local audible indication but do not replace remote monitoring for unmanned locations.
The spec I always check first on a rackmount UPS is whether it actually delivers sine wave output — and the SMT750RM2UCNC does, at under 5% THD. That matters because most of the NVRs, managed PoE switches, and access control servers we're protecting have active PFC power supplies that technically require sine wave input. Putting a modified sine wave UPS behind those loads is asking for premature PSU failure or erratic behavior under battery. With this unit, that's not a concern.
Technical Highlights:
- Pure Sine Wave Output (<5% THD): Genuine sine wave at all load levels — not just on utility, but also on battery. Critical for any rack containing equipment with active power factor correction circuitry.
- AVR — 110V to 125V Input Window: Voltage regulation without battery involvement across the full North American utility variance range. In older commercial buildings where voltage commonly sags to 112–114V during HVAC cycling, this prevents battery drain from false transfers and directly extends battery cycle life.
- 680J Surge Rating + 10ms Transfer: The 680 joule suppressor and sub-10ms transfer together cover both transient spikes and hard outages. Neither spec is exceptional at this price tier, but both are adequate for a protected secondary position behind a panel-level arrestor.
Deployment Considerations:
- The 400W real-power ceiling is tighter than the 750VA nameplate suggests — a fully-loaded 8-port PoE+ switch plus a mid-range NVR can easily consume 250–300W, leaving limited margin for additional loads. Build a load spreadsheet before you finalize the rack BOM.
- At 41 dB, this unit is not silent. In a dedicated equipment room it's unremarkable, but in a shared space (small office, reception area AV rack, retail back-office) the on-battery alarm at 41 dB will be noticeable. Factor in placement accordingly.
The SMT750RM2UCNC is best suited for a compact security or network equipment rack in a commercial building where utility power quality is variable — think a multi-tenant office building or retail location with older electrical infrastructure. The AVR circuit earns its keep in exactly those environments, keeping the NVR and switch on stable power without burning through battery cycles every time the HVAC kicks on.
