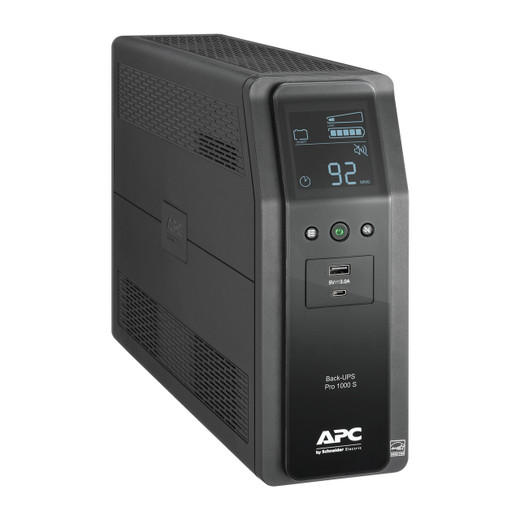

APC by Schneider Electric BR1000MS 1000VA Line-Interactive Tower UPS
Overview
The APC Back-UPS PRO BR1000MS is a 1000VA/600W line-interactive uninterruptible power supply built for small server rooms, network closets, and security infrastructure where a power interruption or voltage sag can mean lost footage, dropped VoIP calls, or an offline access control system. At 600W of real output power and a true sine wave output waveform, the BR1000MS is the right pick when your load includes active PFC power supplies — the kind found in modern NVRs, enterprise switches, and rack-mounted servers that choke on the stepped approximation waveform that cheaper UPS units deliver. Browse the full UPS and power protection category to compare runtime and capacity options.
Key Features
- True Sine Wave Output: Unlike modified sine wave units, the BR1000MS delivers a clean sinusoidal waveform on battery. Active PFC power supplies — standard in modern NVRs, servers, and managed PoE switches — require this. A modified sine wave will cause those PSUs to buzz, run hot, or shut down entirely under a power event. If your load includes any active-PFC equipment, this is the spec that matters most.
- 1000VA / 600W Line-Interactive Topology: Line-interactive means the inverter is always in line, correcting voltage continuously without switching to battery. The BR1000MS handles an input range of 88V–147V through automatic voltage regulation (AVR), so browndowns and swells that regularly damage unprotected gear are absorbed before they reach your equipment — without consuming a single millisecond of battery runtime.
- Automatic Voltage Regulation (AVR), 88V–147V Input Range: The 88–147V window is wider than entry-level UPS units, which matters on circuits that see recurring voltage sag (shared branch circuits in older commercial buildings, for example). AVR kicks in silently — no battery draw, no transfer time — and keeps your downstream load stable.

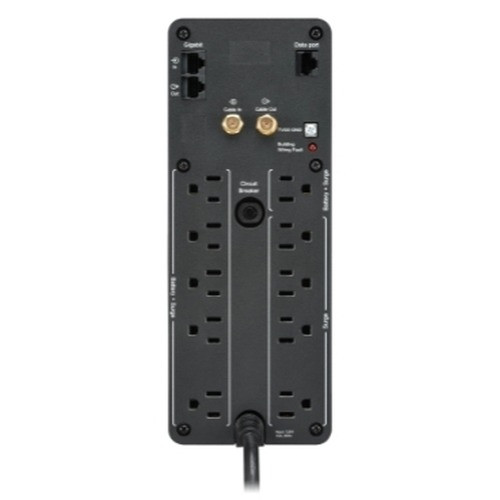

- 10x NEMA 5-15R Outlets: Ten outlets on a tower-form UPS is generous for this capacity class. Enough to cover an NVR, a PoE switch, a workstation, a modem, and still have spare ports. All are surge-protected; a subset will be battery-backed (confirm battery vs. surge-only outlet split in APC's documentation for this SKU).
- 1080 Joule Surge Energy Rating with Coax and Network Protection: The 1080J rating absorbs a meaningful transient — not just a token spec. More importantly, the BR1000MS includes dedicated coax and network (RJ-45) surge protection ports, which matter in security installations where IP cameras and network video recorders are both connected to the same infrastructure that a nearby lightning strike can reach through the coax run or Ethernet cable.
- 8–10ms Hold Time: The hold time (8ms minimum, 10ms maximum transfer) describes how long the UPS bridges between utility loss and battery output. At under 10ms, this is fast enough for virtually all ATX and rack PSUs to ride through without a reset. For reference, most active PFC supplies tolerate hold times up to 16–20ms — the BR1000MS stays well within that window.
- 45 dB Noise Level: For a line-interactive UPS with a fan, 45 dB is quiet enough for an office-adjacent network closet or an IT room without acoustic treatment. It won't blend into a library, but it's not disruptive in a normal work environment.
- EMI/RFI Noise Filtering: Built-in EMI/RFI filtering cleans the power feed before it reaches sensitive electronics. In security deployments, this reduces the risk of noise-induced artifacts on IP camera feeds or data corruption on NVR storage arrays driven by electrical interference on the branch circuit.
- Audible Alarms: The BR1000MS includes audible alarms for on-battery operation and low-battery conditions — useful in unmanned equipment rooms where a silent failure would go unnoticed until the battery runs dry.
Integration and Compatibility
The BR1000MS operates on 120V / 60Hz North American circuits and is compatible with any load that accepts NEMA 5-15 plugs. The sine wave output makes it broadly compatible with network video recorders, managed PoE switches, and server-class hardware with active PFC supplies. For larger deployments requiring higher capacity or rackmount form factor, consider higher-VA models in APC's Back-UPS PRO line or step up to the Smart-UPS family for network management card support and extended runtime options. For security system power planning, pair with a PoE switch sized to your camera count — the UPS protects the switch, and the switch protects your cameras during an outage.
APC's PowerChute software (available separately) enables graceful OS shutdown before battery depletion — relevant if the BR1000MS is protecting a Windows-based VMS server or NAS. The USB port on the unit provides the interface for that integration. If you need guidance on sizing UPS capacity to your specific security equipment load, the UPS sizing guide covers runtime calculations by device wattage.
Frequently Asked Questions
Q: Does the BR1000MS output a true sine wave on battery, or a modified sine wave?
A: True (pure) sine wave. The BR1000MS produces a sinusoidal waveform both on utility power and on battery, making it compatible with active PFC power supplies found in modern NVRs, servers, and managed switches.
Q: What is the input voltage range the BR1000MS can handle without switching to battery?
A: The automatic voltage regulation (AVR) circuit handles input voltages from 88V to 147V on utility power without drawing on the battery. Outside that window, the unit transfers to battery.
Q: How many outlets does the BR1000MS have, and are they all battery-backed?
A: The BR1000MS has 10 NEMA 5-15R outlets. Refer to APC's product documentation for the exact split between battery-backed and surge-only outlets on this model.
Q: Is the BR1000MS suitable for protecting security cameras directly?
A: IP cameras are typically powered by a PoE switch, not directly from AC outlets. The correct approach is to protect the PoE switch (and NVR) with the BR1000MS, which then keeps cameras online during an outage. The included coax and network surge protection ports add an additional layer of protection for connected security infrastructure.
Q: What is the transfer time to battery when utility power fails?
A: The BR1000MS has a hold time of 8ms minimum and 10ms maximum — fast enough that virtually all connected equipment experiences no interruption or reset during the transfer.
Q: Does the BR1000MS work with APC's PowerChute shutdown software?
A: Yes. The BR1000MS includes a USB port that connects to a host computer running APC's PowerChute software for graceful automated shutdown before battery depletion. PowerChute is available separately from APC.
The spec I keep coming back to on the BR1000MS is the true sine wave output — at 600W real power capacity, this unit covers most small-to-midsize security head-end closets, and the sine wave waveform is what separates it from the cut-rate UPS options that will actually cause problems with the active PFC supplies inside your NVR or managed switch. I've seen installs where a modified sine wave UPS was in place and the NVR's PSU would audibly buzz and eventually trigger an over-temperature shutdown mid-event. The BR1000MS eliminates that failure mode.
Technical Highlights:
- True Sine Wave on Battery: Active PFC supplies in modern security hardware require sinusoidal waveform to operate correctly. The BR1000MS delivers this even during extended battery runtime, not just during brief transfer events.
- 88–147V AVR Window: The 59V swing above and below nominal 120V is a wide cushion. On a shared commercial branch circuit that sags to 95V during HVAC compressor startup, this unit corrects silently — no battery draw, no alarm, no interruption.
- 1080J Surge Rating + Coax/Network Ports: The combined electrical, coax, and RJ-45 surge protection is the right feature set for a security head-end where cameras, recorders, and network gear all share the same physical infrastructure that a transient can propagate through.
Deployment Considerations:
- The 600W capacity is the real ceiling to plan against — not the 1000VA figure. Tally your NVR, switch, and workstation wattages at load (not nameplate max) and keep your actual draw under 480W to preserve meaningful runtime margin.
- The 45 dB noise rating is acceptable for a network closet but worth noting if you're placing this in an open office or reception area — line-interactive UPS fans cycle with load, and it will be audible in a quiet room.
This unit is the right fit for a standalone security head-end: one NVR, one managed PoE switch, and a monitoring workstation — the classic 3-device stack that needs sine wave quality power, coax protection for the ISP feed, and enough outlet count to avoid a secondary power strip in the cabinet.
