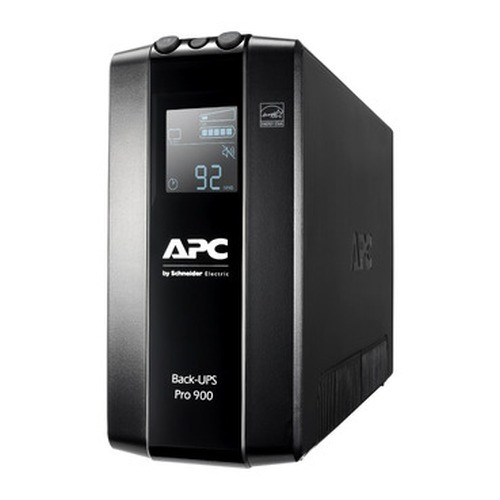

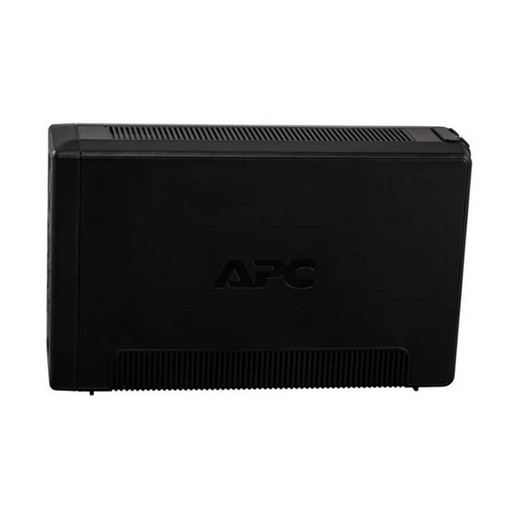

APC by Schneider Electric BR900MI 900VA Line-Interactive UPS with AVR and LCD Interface
Overview
The BR900MI is a 900VA / 540W line-interactive uninterruptible power supply from APC by Schneider Electric, purpose-built to protect network equipment, NVRs, PoE switches, and edge security infrastructure from power events that can corrupt footage, drop access control systems, or damage sensitive electronics. Line-interactive topology with true sine wave output and built-in Automatic Voltage Regulation means this unit handles the full range of real-world power quality problems — not just outages, but the chronic under-voltage and over-voltage conditions (it operates across a wide 176–294V input window) that shorten the life of powered equipment long before a blackout ever occurs.
The LCD interface gives installers and facilities staff a real-time read on load percentage, battery health, and runtime — no software required to verify the unit is protecting what it should.
Key Features
- Line-Interactive Topology with True Sine Wave Output: Unlike simpler standby UPS designs, the BR900MI regulates voltage continuously in both directions without switching to battery for every sag or surge. Sine wave output matters when the load includes active PFC power supplies common in NVRs and managed switches — those devices can behave erratically or trip protection circuits on modified sine wave. You get clean power delivery regardless of grid quality.
- Automatic Voltage Regulation (AVR), 176–294V Input Range: The 118V swing across the input window means the BR900MI will regulate to stable output through brownouts and overvoltages that would force a lesser unit onto battery. For sites with marginal utility power — older buildings, regions with variable grid, temporary construction power — this directly extends battery life by reducing unnecessary battery cycling.
- 540W / 900VA Capacity: At 60% power factor, this UPS is sized for a typical edge security closet — an 8-port PoE switch drawing 60–80W, a 4–8 channel NVR at 30–50W, a small access control panel, and a DSL/fiber gateway. Avoid loading past 80% (432W) to preserve runtime margin and avoid triggering the overload alarm.
- Network Surge Protection: The surge protection extends beyond AC — network surge protection is included, so the RJ-45 pass-through shields connected NVRs and switches from transient events on the data side. In environments with long cable runs or outdoor-facing equipment, this matters.
- 12ms Transfer Time: When the unit does switch to battery, the 12ms transfer is fast enough that virtually all standard ATX and switching power supplies will ride through without a reset. Equipment that requires sub-10ms transfer (some older server-class hardware) should be evaluated separately, but for security and networking hardware this spec is adequate.
- LCD Interface with Audible Alarms: The front-panel LCD displays load, battery charge, and estimated runtime at a glance. Three distinct audible alarm modes — on-battery, low-battery, and overload — let staff respond to power events without a monitoring console. For unmanned equipment rooms, the overload alarm is the first indicator that someone added a load the UPS wasn't sized for.
- ECO Mode: When connected load is below a configurable threshold, ECO mode reduces the inverter's draw to cut standby power consumption. Useful in 24/7 deployments where the UPS runs months between power events — reduces heat and operating cost during normal grid conditions.
- 45 dB Operating Noise: Comparable to a quiet office environment. Acceptable for wiring closets adjacent to occupied spaces, conference rooms, or small office deployments where fan noise from a tower UPS would be disruptive.
- C13 Output Outlets: All six outlets use IEC C13 connectors, which is standard for rack-mount and commercial networking/security equipment. Verify that connected devices ship with C14-to-C13 power cords or that you have the correct regional cord set — C13 outlets do not accept standard North American NEMA 5-15 plugs directly.
Integration and Compatibility
The BR900MI is designed for integration with APC's PowerChute software suite, which provides graceful shutdown sequencing, event logging, and runtime monitoring when connected via USB. For security deployments running an NVR on Windows or Linux, PowerChute can trigger a controlled shutdown before the battery exhausts, protecting recorded footage and database integrity. The unit supports 50/60 Hz input and output, making it compatible with both North American and international grid frequencies where the voltage range is applicable. The 10A maximum current draw on input is standard for single-phase branch circuits.
Frequently Asked Questions
Q: What is the output waveform of the BR900MI — is it safe for active PFC power supplies?
A: The BR900MI outputs a true sine wave when running on battery. This makes it compatible with active PFC power supplies found in most modern NVRs, servers, and managed switches. Modified sine wave UPS units can cause these supplies to trip or behave unpredictably.
Q: What input voltage range does the BR900MI support?
A: The BR900MI accepts input from 176V to 294V while regulating output via AVR without switching to battery. This covers most brownout and overvoltage conditions common in commercial installations. It operates on 50 or 60 Hz input.
Q: How many outlets does the BR900MI provide, and what connector type?
A: The BR900MI provides 6 outlets, all IEC C13 type. These are standard for rack-mount and commercial IT/security equipment. North American deployments will require C14-to-C13 power cords or appropriate regional cord sets.
Q: Does the BR900MI include surge protection for network connections?
A: Yes. In addition to AC surge protection, the BR900MI includes network surge protection to shield connected equipment from transient events on the data cabling side.
Q: What is the transfer time to battery on the BR900MI?
A: Transfer time is 12 milliseconds. This is within the tolerance of standard ATX and switching power supplies used in NVRs, PoE switches, and access control panels — connected equipment should remain operational through the switchover.
Q: Can the BR900MI be monitored or integrated with shutdown software?
A: The BR900MI is compatible with APC's PowerChute software via USB connection, enabling graceful shutdown sequencing, runtime monitoring, and event logging. The front LCD also displays load, battery status, and estimated runtime without requiring any software.
The BR900MI is the unit I reach for when specifying power protection for a compact security edge closet — specifically because of the 176–294V AVR input window combined with sine wave output. A lot of installers overlook AVR range when selecting a UPS, then wonder why batteries are dying every 18 months in buildings with marginal utility power. The wide input tolerance on this unit keeps it off battery through the voltage swings that kill lesser UPS batteries silently over time.
Technical Highlights:
- True Sine Wave Output: At 540W / 900VA, this unit delivers clean sine wave on battery — not simulated. NVRs with active PFC supplies (most units made in the last five years) require this; a modified sine wave UPS will trigger PFC protection circuits and hard-restart the recorder mid-write.
- 12ms Transfer Time: Fast enough for all standard switching supplies in security hardware. The 12ms window is under the hold-up time of virtually every commercial NVR and managed switch power supply, so the connected equipment doesn't see the transition.
- Network Surge Protection Included: Beyond the AC side, the data-path surge protection is relevant any time you have an NVR or switch connected to outdoor cameras or runs that exit the building. This is a spec integrators routinely overlook until after the first lightning event.
Deployment Considerations:
- Plan load at 80% maximum (432W) to preserve runtime margin. An 8-port PoE switch at full load plus a mid-range NVR can approach this ceiling quickly — calculate actual draw before commissioning, not after.
- The six C13 outlets are international standard — not NEMA. Verify your NVR, switch, and access control panel ship with C14-plug power cords, or procure the correct regional cord set before installation day. This is a common field surprise on first deployment.
For a small-to-mid enterprise security closet running a 4–16 channel NVR, a managed PoE switch, and an access control panel on a single branch circuit, the BR900MI is sized correctly and the AVR topology makes it the right call over a basic standby UPS in any site where power quality is uncertain.
