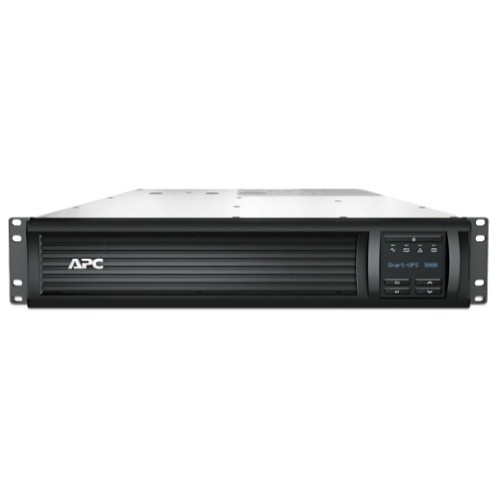

APC by Schneider Electric APC Smart-ups 3000VA RM - SMT3000RM2U

APC by Schneider Electric SMT3000RM2U 3000VA 2U Rackmount UPS

Overview

The SMT3000RM2U is a 3000VA / 2700W line-interactive rackmount UPS built for network closets, server rooms, and security equipment racks that cannot afford unplanned downtime. At 2U, it delivers serious power protection without consuming the rack space that comparable capacity units typically demand. If you're protecting a mid-density power and UPS infrastructure — edge switches, NVRs, access control servers, IP PBX gear — this is the capacity class to evaluate.

APC's Smart-UPS line sits at the workhorse tier of the APC by Schneider Electric catalog: not the entry-level Back-UPS, not the high-availability Symmetra, but the practical middle ground that handles most commercial rack deployments without over-engineering the power budget.

Key Features

• 3000VA / 2700W Capacity: At 2700W true output, you can load this unit with a full edge switching stack, a multi-channel NVR with spinning drives, and still maintain headroom. Rule of thumb: size your UPS at no more than 80% of rated watts under steady load — that leaves you at 2160W usable, which comfortably covers most 1–4 server or appliance deployments.
• 98% Operating Efficiency: At 98% efficiency under line power, the SMT3000RM2U generates minimal heat waste and keeps your operating costs low in 24/7 environments. For a rack that runs continuously, even a 2–3% efficiency gap versus a cheaper unit translates to measurable energy cost over a year.
• Wide Input Voltage Window (75V–154V): The unit tolerates input voltage swings from 75V to 154V before switching to battery — significantly broader than the 90–140V range common on entry-level units. In facilities with marginal utility power or long feeder runs, this means less unnecessary battery cycling and longer battery service life.
• 8 AC Outlets (NEMA 5-15R and NEMA 5-20R): Eight rear outlets cover mixed device populations. The presence of NEMA 5-20R receptacles matters if any load draws more than 15A on a single circuit — rack PDUs, workstations, or high-draw appliances can connect directly without adapters.
• 3-Hour Recharge Time: After a full discharge event, the sealed lead-acid (VRLA) battery recharges to full in approximately 3 hours. In environments with recurring power anomalies, fast recharge reduces the window of exposure between events.
• 459J Surge Energy Rating: The integrated surge suppression at 459 joules handles typical transient events on commercial circuits. This is not a substitute for a dedicated whole-panel SPD in facilities with high lightning exposure, but it covers the device-level protection expected in a rack UPS of this class.
• Audible Alarm System: On-battery, overload, and fault conditions trigger audible alarms — useful in unmanned equipment rooms where visual indicators alone may go unnoticed. Most deployments will also connect the UPS to a monitoring interface for remote alerting.
• Rackmount Form Factor, 2U: The 2U profile fits standard 19-inch equipment racks. At 2.44m (8 ft) cable length, the power cord reaches most rack PDU or wall outlet configurations without extension cables.
• 55 dB Noise Level: At 55 dB, this unit is louder than a whisper-quiet office environment but appropriate for equipment rooms and server closets where ambient fan noise already exceeds this threshold. Not recommended for open office deployments where noise is a constraint.

Integration and Compatibility

The SMT3000RM2U's NEMA 5-15R and 5-20R outlets accommodate the broadest range of standard North American equipment. APC's SmartConnect and Network Management Card (sold separately) enable SNMP-based monitoring, remote shutdown scripting, and integration into data center infrastructure management (DCIM) platforms. This is the connectivity path to pair with network switches and managed PoE infrastructure where graceful shutdown sequencing matters during extended outages.

For IP security camera deployments, the SMT3000RM2U protects NVRs, PoE switches, and access control servers simultaneously — the 2700W capacity handles a fully-loaded rack without load-shedding. Organizations building out surveillance infrastructure should also review their network video recorder runtime requirements against the actual battery backup duration at their specific load.

Frequently Asked Questions

Q: What is the true watt output of the SMT3000RM2U, and how does it differ from the VA rating?

A: The SMT3000RM2U is rated at 3000VA and 2700W. VA is the apparent power; watts are the real power your equipment actually draws. Most IT and security loads have a power factor around 0.9, so the 2700W figure is the practical ceiling for device loading. Size your connected load to no more than 80% of that — approximately 2160W — for reliable runtime and battery longevity.

Q: What outlet types are on the SMT3000RM2U?

A: The unit provides 8 AC outlets total, a mix of NEMA 5-15R (standard 15A) and NEMA 5-20R (20A) receptacles. This covers both standard equipment and higher-draw devices without requiring adapters for most North American commercial deployments.

Q: How long does the SMT3000RM2U battery take to recharge after a full discharge?

A: Approximately 3 hours from a full discharge back to full charge under normal operating conditions with the sealed lead-acid VRLA battery.

Q: What is the input voltage tolerance of the SMT3000RM2U?

A: The unit accepts input voltages from 75V to 154V before switching to battery power. This wide window reduces unnecessary battery cycling in facilities with fluctuating utility power quality.

Q: Is the SMT3000RM2U suitable for an open office environment?

A: The unit produces up to 55 dB of audible noise, which is noticeable in quiet spaces. It is designed for equipment rooms, server closets, and utility spaces — not open office or conference room deployments where noise is a concern.

Q: Does the SMT3000RM2U support remote monitoring?

A: The base unit includes APC's SmartConnect capability. Full SNMP/network management requires an optional Network Management Card (NMC), which enables remote monitoring, alerts, and graceful shutdown scripting through DCIM or NMS platforms.

Karl Wilson

The SMT3000RM2U hits the spec I look for in security infrastructure racks: 2700W real power output in a 2U form factor, with a 75V–154V input window that handles the kind of voltage sag you see on aging building electrical in older commercial and light-industrial facilities. That wide input tolerance is the spec most buyers overlook — it's what keeps your NVR and switch stack on line power instead of draining battery on every brownout.

Technical Highlights:

• 98% Efficiency: Running at 98% means nearly all input power becomes usable output — at 2700W continuous load, you're wasting less than 55W as heat. That matters in tight rack enclosures where thermal management is already a challenge.
• 459J Surge Rating: Adequate for device-level transient suppression on commercial circuits. Deploy this alongside a panel-level SPD in any facility that sees direct lightning exposure — 459J is not designed to absorb a direct strike event.
• 3-Hour Battery Recharge: VRLA chemistry at this capacity class recharges in 3 hours. If your site experiences multiple power events per day (common near industrial equipment or on shared utility feeds), that recharge window defines your vulnerability exposure between incidents.

Deployment Considerations:

• The 8-outlet mix of NEMA 5-15R and 5-20R covers most rack populations, but verify your total connected load stays under 2160W (80% of 2700W rated) — exceeding that erodes runtime and stresses the battery under sustained load.
• At 55 dB, this unit belongs in an equipment room, not a shared workspace. If your rack is in a hybrid IT/office environment, plan for the noise before installation.

The SMT3000RM2U is the right call for a mid-density security operations rack — protecting NVRs, managed PoE switches, and access control servers in a single 2U slot where runtime quality and input voltage tolerance matter more than absolute runtime duration.
