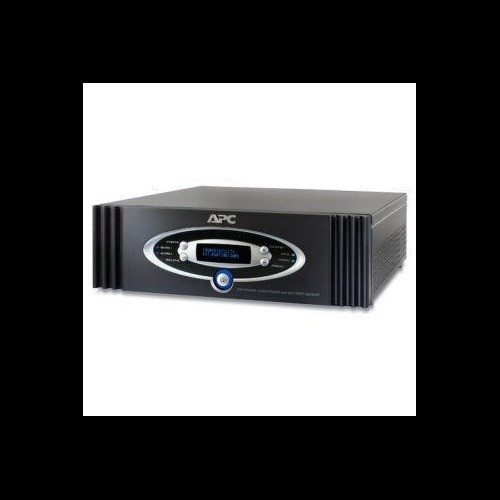

APC by Schneider Electric S10BLK 1kVA Power Conditioner with Battery Backup
Overview
The APC S10BLK is a 1kVA (700W) line conditioner and battery backup unit built for AV and surveillance installations where clean, uninterrupted power is non-negotiable. With 12 NEMA 5-15R receptacles, 3060 joules of AC surge protection, and a 120V AC input, the S10BLK is sized for rack-mounted security head-end environments — NVR racks, AV control rooms, and distributed surveillance closets where a single power anomaly can corrupt recordings or drop cameras offline. Browse the full APC by Schneider Electric power protection line for complementary UPS and surge solutions.
Key Features
- 1kVA / 700W Load Capacity: Handles a realistic mix of NVRs, managed switches, and encoders simultaneously — enough headroom to run a mid-density surveillance head-end without overloading a single circuit. If your load calculation exceeds 700W continuous, plan for a second unit or step up in the family.
- 12 x NEMA 5-15R Receptacles: Twelve outlets on a single conditioned, protected circuit eliminates the daisy-chained power strip problem common in rushed rack builds. Every device draws from the same protected source. Pair this with a rack-mount power distribution unit for very high outlet-count deployments.
- 3060 Joule Surge Energy Rating: A 3060J rating absorbs substantial transient energy from nearby lightning strikes and utility switching events — meaningfully higher than consumer-grade strips rated at 400–900J. For outdoor camera circuits feeding back into the head-end, this margin matters.
- AC Surge Protection (IEC 320-C14 Input): The C14 inlet connects directly to a standard rack PDU or UPS bypass — no adapters required in most enterprise rack environments. Clean integration into existing rack power infrastructure.
- Battery Backup: The integrated battery holds the load through momentary outages and brownouts, giving managed switches and NVRs time for a clean shutdown rather than a hard crash. For network video recorders mid-write, a controlled shutdown protects recording integrity and reduces filesystem recovery time.
- 55 lb / Rack-Optimized Chassis (17" W × 19" D × 5.3" H): Standard 19-inch rack width and a 19-inch depth fit most two-post and four-post open-frame racks. At 55 lbs, verify your rack's weight capacity before mounting — mid-density racks with multiple heavy devices can approach rail limits quickly.
- 2-Year Manufacturer Warranty: APC backs the S10BLK with a 2-year manufacturer warranty — standard for commercial-grade power conditioning hardware in this class.
Integration and Compatibility
The S10BLK inputs on IEC 320-C14 and outputs on twelve NEMA 5-15R receptacles, making it compatible with virtually all rack-mounted surveillance and AV equipment drawing standard 120V power. It targets AV-integrated security racks where both IP cameras systems and audio/video components share the same head-end closet. For PoE switch deployments, note that PoE budget draws can push total rack consumption quickly — confirm your aggregate wattage stays under 700W continuous before specifying this unit. See the PoE switch catalog to match switch power budgets to conditioner capacity.
Frequently Asked Questions
Q: What is the maximum load the S10BLK can support?
A: The S10BLK is rated at 1000 VA / 700 watts. Keep continuous load below 700W to avoid overload. For higher-density racks, consider a higher-capacity unit in the APC line.
Q: How many outlets does the S10BLK provide?
A: It provides 12 NEMA 5-15R receptacles, all on the conditioned and surge-protected circuit.
Q: What type of input connector does the S10BLK use?
A: The input is an IEC 320-C14 connector, standard for direct connection to rack PDUs or UPS bypass outlets.
Q: What is the surge energy rating on the S10BLK?
A: The S10BLK carries a 3060 joule AC surge energy rating — significantly above consumer-grade surge protection levels.
Q: What are the physical dimensions and weight?
A: The unit measures 17" wide × 19" deep × 5.3" tall and weighs 55 lbs. Confirm rack rail weight capacity before installation.
Q: What warranty does the S10BLK carry?
A: APC provides a 2-year manufacturer warranty on the S10BLK.
The S10BLK earns its place in commercial surveillance head-ends specifically because of the 3060J surge energy rating combined with battery backup in a single rack unit — a combination that addresses both fast transients and momentary outages without requiring two separate devices taking up rack space and budget.
Technical Highlights:
- 3060J Surge Rating: At more than 3× the joule rating of typical consumer strips, this absorbs realistic lightning-induced transients on building electrical systems — relevant for any installation near exterior camera runs.
- 12 Protected NEMA 5-15R Outlets: Sufficient for a full NVR + managed PoE switch + encoder stack from a single conditioned source — eliminates the unprotected daisy-chain that shows up in rushed installs.
- 700W Continuous / 1kVA Rated: Matches the real draw profile of a mid-density surveillance rack; just confirm aggregate PoE switch + NVR wattage before specifying — PoE budgets add up fast.
Deployment Considerations:
- At 55 lbs and 19 inches deep, verify four-post rack depth and rail weight ratings before mounting — this is heavier than most rack equipment at this form factor.
- The IEC 320-C14 input requires a C13-to-C14 cord or direct PDU connection; if your rack feeds via NEMA 5-15P wall circuits, factor in an appropriate inlet adapter.
Best fit for AV-integrated surveillance closets — corporate lobby security desks, retail loss-prevention head-ends, or any environment where a single rack consolidates NVR, switching, and AV distribution on shared 120V commercial power.
