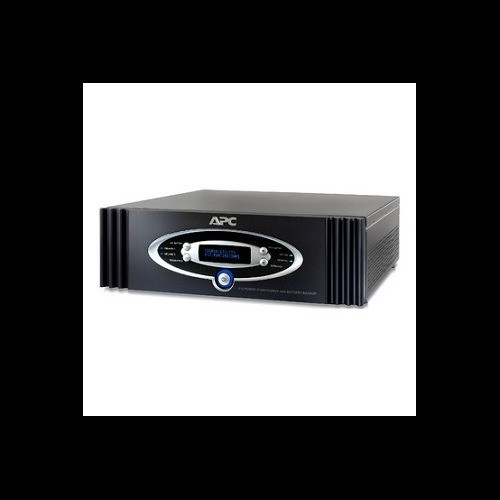

APC by Schneider Electric S15BLK 1440VA Line-Interactive Power Conditioner with Battery Backup
Overview
The APC by Schneider Electric S15BLK is a 1440VA / 1000W line-interactive power conditioner with battery backup, purpose-built for AV equipment racks and surveillance infrastructure that cannot tolerate voltage sags, noise, or surge events on a shared 120V circuit. Unlike a basic UPS that simply switches to battery on outage, the S15BLK combines automatic voltage regulation, full-time multi-pole noise filtering, and a true sine wave output — the combination that sensitive electronics (amplifiers, NVRs, managed switches) actually require. If your equipment rack feeds off an unregulated branch in a commercial building, this is the unit to specify.
Rack-mounted in a 3U front-mount profile at 43.2 cm wide and 48.3 cm deep, the S15BLK fits standard 19-inch equipment racks and drops into most AV credenzas with adequate depth clearance. The black finish matches dark rack environments. Twelve NEMA 5-15R output receptacles and a 10-foot (3.05 m) input cord on a NEMA 5-15P plug give you enough outlets for a full equipment tier without a secondary PDU.
Key Features
- 1440VA / 1000W Line-Interactive Topology: Line-interactive design corrects voltage excursions within the 90–140V input window without touching battery reserves. Power stays conditioned through brownouts and overvoltages that would cycle a lesser UPS onto battery repeatedly — extending battery service life and keeping equipment on regulated power continuously.
- True Sine Wave Output: Active PFC power supplies in NVRs, managed switches, and DSP amplifiers require a sine wave under battery conditions. Square-wave or stepped-approximation UPS units cause audible interference and can damage PFC-equipped loads. The S15BLK delivers sine wave output regardless of input condition.
- 4080 Joule Surge Energy Rating / Zero IEEE Let-Through: At 4080J, the surge suppression stage absorbs what a standard $30 power strip cannot. IEEE let-through of zero means the downstream equipment sees no surge energy — the spec relevant for insurance documentation on high-value equipment racks.
- Full-Time Multi-Pole Noise Filtering: RF and EMI on shared circuits inject noise into video and audio signal chains. Continuous filtering, not just switching-event filtering, keeps NVR frame-capture clean and eliminates the ground-loop hum that plagues mixed AV/security racks.
- 12 NEMA 5-15R Outlets: Twelve output receptacles on a single 3U unit cover a realistic equipment tier — NVR, managed PoE switch, encoder/decoder pair, display controller, and spare. No secondary PDU required for moderate-density racks.
- 8-Hour Recharge Cycle: After a full discharge, the internal lead-acid battery returns to full charge in 8 hours — meaning a single overnight cycle restores full protection before the next business day. Plan replacement intervals on the battery, not the unit: lead-acid cells in always-on applications typically require replacement every 3–5 years.
- 46 dBA Acoustic Level: At 46 dBA, the fan noise is audible in a quiet office rack but unremarkable in an equipment room. Not rated for open-plan deployments where silence is required, but appropriate for dedicated IDF/MDF closets and AV equipment rooms.
- CSA / UL 1778 / FCC Part 15 Class B Certifications: UL 1778 covers the UPS safety standard; FCC Part 15 Class B confirms the unit meets residential/commercial EMI limits. Both matter for integrators pulling permits or satisfying IT security policies that require listed equipment.
- Unlimited Lifetime Equipment Protection Policy: APC's connected equipment protection policy covers downstream equipment damage — verify current policy terms with APC directly, as coverage conditions apply. The policy is a risk-transfer consideration relevant to high-value AV and security equipment.
- Operating Range 0–40°C, 5–95% RH: Covers standard rack environments. The upper temperature limit means closed rack enclosures without forced airflow may push the unit toward its thermal ceiling — confirm rack cooling before specifying in sealed environments.
Integration & Compatibility
The S15BLK draws up to 12A at 120V on a NEMA 5-15P plug — size the branch circuit accordingly (15A dedicated circuit minimum; 20A preferred for full-load headroom). Input frequency auto-senses 50/60 Hz ±3 Hz, making the unit functional in both North American and international 120V applications. Output frequency tracks mains within ±3 Hz in normal operation, switching to internal 50/60 Hz on battery.
The 90–140V input voltage window accommodates the extended sag conditions common in commercial buildings with heavy HVAC loads. Equipment with 100–240V auto-ranging power supplies will operate normally within this window. Verify input voltage range compatibility for any equipment rated strictly at 120V ±10%, as the S15BLK will regulate within its window but cannot compensate for input voltages below 90V without switching to battery.
For power protection and UPS deployments in surveillance infrastructure, pair this unit with a managed PoE network switch downstream — the switch feeds cameras, and the S15BLK protects the switch and NVR from the same conditioning point. Review the APC by Schneider Electric catalog for compatible battery replacement modules and management accessories. Integrators planning multi-rack deployments should consult a UPS sizing and runtime guide to match VA capacity against actual connected load.
Frequently Asked Questions
Q: What is the runtime on battery for the APC S15BLK at full 1000W load?
A: APC does not publish a specific runtime figure in the base spec sheet for the S15BLK at full load. Runtime depends on actual connected load — at loads well below the 1000W maximum, runtime increases significantly. For mission-critical deployments, configure the connected load conservatively below 50% of rated capacity to maximize runtime.
Q: Does the S15BLK produce a sine wave under battery power?
A: Yes. The S15BLK is specified as a sine wave output unit. This is important for equipment with active PFC power supplies — including most modern NVRs, managed switches, and AV amplifiers — which can malfunction or be damaged by stepped-approximation waveforms from cheaper UPS units.
Q: What certifications does the S15BLK carry?
A: The S15BLK is certified to CSA Standards, FCC Part 15 Class B, and UL 1778. UL 1778 is the standard for uninterruptible power supplies; FCC Part 15 Class B confirms compliance with commercial and residential EMI limits.
Q: What is the surge energy rating on the S15BLK?
A: The S15BLK is rated at 4080 joules with IEEE surge let-through of zero. Clamping response time meets UL 1449. This level of suppression is appropriate for protecting high-value NVRs, video processors, and AV control equipment from transient events on shared commercial circuits.
Q: What is the warranty on the S15BLK?
A: The S15BLK carries a 2-year repair or replace manufacturer warranty.
Q: Can the S15BLK be rack-mounted, and what rack space does it require?
A: Yes. The S15BLK is designed for front-mount rack installation and occupies 3U of rack space. It is 43.2 cm (17 inches) wide and 48.3 cm deep — verify rack depth clearance before ordering, as shallow-depth wall-mount enclosures may not accommodate it. Note that the unit is not rated for two-post rack mounting.
The S15BLK is the unit I reach for when a customer has a surveillance or AV rack on a commercial branch circuit and needs power conditioning, surge suppression, and battery backup in a single 3U chassis. The 4080J surge rating with zero IEEE let-through is the spec that matters most on shared commercial feeds — that's not a marketing number, it's the figure that determines whether a transient event on a Monday morning destroys a $3,000 NVR.
Technical Highlights:
- Line-Interactive AVR (90–140V window): The unit corrects sags and swells within a 50-volt window without drawing down the battery. In commercial buildings with variable HVAC loading, this means the battery stays charged and available for actual outages rather than cycling on every brownout event.
- Sine Wave Output: Every active-PFC power supply in your rack — NVR, managed switch, audio DSP — needs a sine wave under battery conditions. The S15BLK delivers it; most similarly priced UPS units do not.
- Full-Time Multi-Pole Noise Filtering: This is always-on, not event-triggered. Ground-loop noise and RF interference on shared circuits degrade video quality and trigger false analytics events. Continuous filtering eliminates the problem at the power source.
Deployment Considerations:
- The unit weighs 28.18 kg — plan for two-person installation in the rack. At 48.3 cm deep, confirm your rack or enclosure has adequate clearance before the unit ships; wall-mount enclosures under 20 inches deep will not fit.
- The 46 dBA acoustic output is noticeable in quiet environments. This unit belongs in a dedicated equipment room or IDF closet, not an open office or lobby AV rack where fan noise is disqualifying.
The S15BLK is the right specification for a surveillance equipment room or dedicated AV rack serving a retail, hospitality, or commercial office environment where the branch circuit quality is unknown and the downstream equipment budget justifies proper power protection. It is not the unit for a single-camera home installation — the 3U rack form factor and 28 kg weight make it a commercial infrastructure component.
