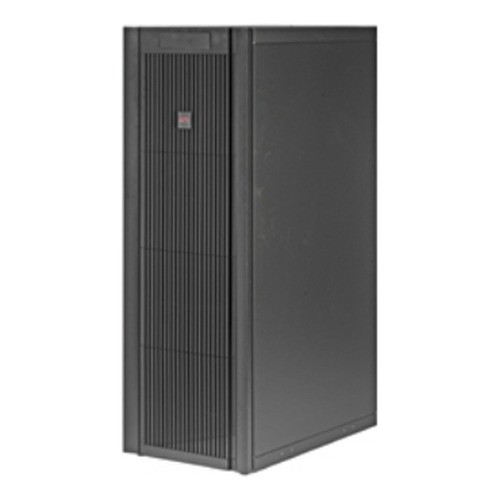

APC - APC Smart-ups VT Extended RUN Frame - Battery Cabinet ( External ) UPS BAT - SUVTBXR2B6S

APC by Schneider Electric SUVTBXR2B6S Smart-UPS VT Extended Run Battery Cabinet

Overview

The SUVTBXR2B6S is an external UPS battery cabinet from APC by Schneider Electric designed to extend the runtime of compatible Smart-UPS VT systems. When a base UPS runtime is not sufficient for your shutdown window or ride-through requirements, this external frame adds battery capacity in a dedicated enclosure — keeping critical infrastructure online longer without replacing the core UPS unit. At 947 lbs, this is a high-capacity cabinet built for data center floors, server rooms, and industrial electrical rooms where sustained runtime under full load is non-negotiable.

Key Features

• External Battery Expansion: Adds battery capacity outside the base UPS chassis, so you extend runtime without modifying or replacing your existing uninterruptible power supply — a significant cost advantage over full UPS replacements in multi-year deployments.
• High-Capacity Form Factor: At 947 lbs, this cabinet is dimensioned for substantial battery bank configurations appropriate to the Smart-UPS VT platform — sized for enterprise and industrial load profiles, not desktop or small-office UPS tiers.
• Dedicated Enclosure Design: Housing batteries in a standalone frame separates the battery mass from the UPS electronics, which simplifies future battery maintenance and replacement cycles without taking the inverter offline unnecessarily.
• Smart-UPS VT Platform Integration: Built specifically for the Smart-UPS VT extended run architecture — verify your base UPS model number against APC compatibility documentation before ordering to confirm this frame is the correct match for your installation.

Integration & Compatibility

The SUVTBXR2B6S is engineered for the APC Smart-UPS VT product family. Confirm compatibility between this battery frame and your specific base UPS model with APC documentation or your electrical contractor prior to procurement. Battery cabinet installations of this class typically require qualified electrical personnel for safe commissioning given the cabinet weight and DC bus connections involved. Pair with an appropriately rated power distribution unit downstream to complete a resilient power architecture.

Frequently Asked Questions

Q: What UPS systems is the SUVTBXR2B6S compatible with?

A: The SUVTBXR2B6S is designed for the APC Smart-UPS VT extended run platform. Confirm the specific compatible base UPS models against APC's official compatibility matrix before ordering — not all Smart-UPS VT configurations accept every external battery frame.

Q: How much does the SUVTBXR2B6S weigh?

A: The cabinet weighs 947 lbs. Floor load capacity, access path clearance, and lifting equipment must all be evaluated before installation. This is a data-center-class cabinet, not a rack-mount accessory.

Q: Does the SUVTBXR2B6S include batteries, or is it a frame only?

A: Based on the product classification as an Extended Run Frame, verify with APC documentation whether batteries are included or must be ordered separately — battery cabinet configurations in this platform vary by model suffix.

Q: Can this cabinet be installed in a standard server room?

A: The 947 lb weight requires structural floor assessment. Standard raised-floor data center environments should verify point load limits. Qualified electrical personnel are required for DC bus connections.

Karl Wilson

The SUVTBXR2B6S is a purpose-built external battery frame for the APC Smart-UPS VT platform — the right tool when your base UPS runtime falls short of your required shutdown or ride-through window and you need to add capacity without replacing the inverter. At 947 lbs, this is not a casual install; it demands site preparation before the cabinet ever arrives on the loading dock.

Technical Highlights:

• 947 lb Cabinet Weight: This mass reflects a high-capacity battery bank configuration suited to the Smart-UPS VT's enterprise load range — but it means floor load planning, fork or pallet jack access, and potentially structural engineering sign-off before deployment.
• Extended Run Architecture: The Smart-UPS VT platform is designed from the ground up to support external battery frames like the SUVTBXR2B6S — the DC bus interface is a native feature, not an afterthought, which simplifies integration versus bolt-on battery solutions on other platforms.
• Dedicated Enclosure: Isolating battery mass in its own frame means future battery replacements or capacity adjustments don't require downtime on the UPS inverter — a real operational advantage in always-on environments.

Deployment Considerations:

• Confirm base UPS model compatibility explicitly against APC's extended run compatibility guide — the SUVTBXR2B6S model suffix encodes a specific configuration, and mismatched frames will not integrate correctly.
• At 947 lbs, verify your facility's floor load rating (lb/sq ft) and plan the delivery route. Data center raised floors often require temporary load-spreading panels during transit to the final position.

This cabinet is the right specification for a data center, network operations center, or industrial control room where the base Smart-UPS VT runtime is insufficient and a forklift-accessible equipment room is already part of the facility design.
