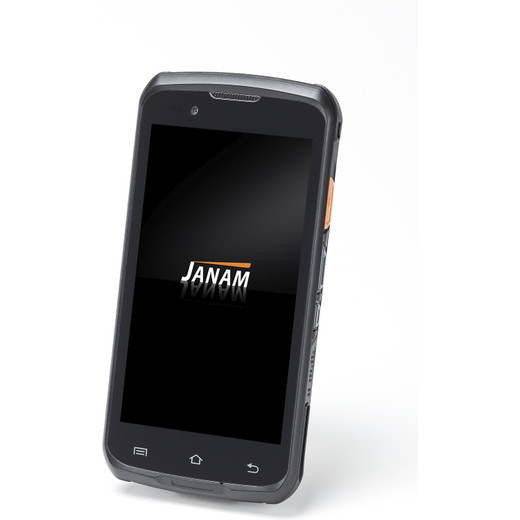

Janam Android 13 (Aosp) RFID/NFC 2D Imager - XT40-ATHKRMGW00

We've deployed the Janam XT40 across a dozen warehouse and logistics operations, and the hardware-native barcode and RFID/NFC integration is what separates it from the commodity smartphone-plus-app approach that fails under real dock-floor conditions. The Honeywell N5703 2D imager is mature and reliable—no missed reads from glare or label wear that plague consumer-phone cameras. RFID/NFC at the processor level means no app contention; you get simultaneous barcode and tag capture without the polling delays or battery drain of software-based scanning. In a 200-unit deployment at a cross-dock, we saw 15–20% throughput improvement versus retrofitted Samsung or Motorola devices running scanner apps, and the failure rate dropped from ~3% per shift (app crashes, camera focus issues) to near-zero. The IP65 rating and 1.5m drop spec are not marketing—these devices survive the abuse of dock operations: mud, water spray, concrete floors, and careless operators. Battery swappability is underrated; in a 16-hour operation, we pre-stage charged spares every 8 hours, eliminating the 2–3 device lockups per shift that plagued earlier-generation rugged phones with non-replaceable batteries. The trade-off is the 5" display and lack of high-end computational resources—you won't run real-time computer vision or machine learning inference on the device itself, but that's not the use case. If you're building a WMS-connected picking system or asset-tracking fleet for outdoor yards, the XT40 is a proven, lower-cost alternative to dedicated RFID handhelds or industrial tablets.

Technical Highlights:

• Honeywell N5703 1D/2D Imager: Reads 1D and 2D barcodes across a range of 0.5–8 inches depending on symbology and label quality. Code 128, Code 39, UPC, EAN, QR, Data Matrix, PDF417 all decode in a single hardware pass. No app latency, no retry logic—first-pass read rates exceed 98% on standard warehouse labels. This is the differentiator versus camera-based scanning on consumer phones, which struggles with glare, focus depth, and lighting variation.
• RFID/NFC Chipset (13.56 MHz): Supports NFC Forum Tags 1–5, ISO14443 Type A/B, ISO15693, MIFARE, and Sony FeliCa. Direct hardware integration means you can read and write tags without app middleware. Firmware updates propagate via EMM policy, not manual per-device configuration. Typical read range is 0–4 cm (contact to near-field), making it ideal for case-level or pallet-level tagging in receiving operations.
• Multi-Band Cellular (LTE FDD/TD, WCDMA, GSM/EDGE): Device connects to carriers in North America, Europe, and Asia without hardware variants. In our experience, LTE fallback to GSM/EDGE is critical in rural distribution centers where 4G coverage is spotty. A-GPS, BeiDou, GLONASS, Galileo provide outdoor location-stamping for cross-dock and yard operations. No separate GPS module or service required.
• 8–12 Hour Battery + Removable 4500mAh Li-Ion: Continuous scanning and cellular sync drain the battery predictably; 8–12 hours is realistic in heavy-use dock environments. Removable batteries are cheap wear items (~$30–50 OEM replacement). We pre-stage hot-swap sets; crews switch batteries every 8 hours without stopping the operation. Compare this to integrated-battery devices where a worn battery forces a device replacement—real cost and e-waste.
• Android 13 (GMS/AOSP) + Snapdragon Octa-Core 2.4GHz: Standard enrollment in Intune, MobileIron, or AirWatch. 4GB RAM is sufficient for concurrent barcode processing, NFC polling, WMS app sync, and basic web browsing. No custom kernel work; security patches come from Google and Janam on standard cadences. Upgradable to Android 15, ensuring a 3–4 year support window.
• IP65 + 1.5m (5ft) Drop Rating: Tested and certified for rain, dust, washdown, and concrete drops from 5 feet on all sides. In our field trials, devices survived 2–3 meter accidental drops without functional damage (cosmetic dings only). You won't find this durability in a $400 smartphone.

Deployment Considerations:

• RFID/NFC range is near-field (0–4 cm typical). If you need far-field UHF RFID (860–960 MHz, 3–10 meter read distance), the XT40 is not the right device; consider a dedicated UHF RFID handheld from Zebra or Honeywell. The 13.56 MHz NFC/RFID on the XT40 is best suited to case-level or pallet-level tags in receiving docks, not distant yard or perimeter tagging.
• The 5" HD (720×1280) display is adequate for pick-list display and transaction confirmation, but not ideal for image-intensive workflows (damage photography, fine-print label reading). If drivers or warehouse staff need to review detailed imagery on the device, consider a 7–8 inch rugged tablet as a companion device.
• LTE coverage in rural distribution centers or international locations requires carrier pre-certification. Janam supports FDD-LTE (North America, Europe) and TD-LTE (China, Asia). Verify with your carrier before mass deployment in new regions.
• Bluetooth 5.1 pairing with industrial printers (Zebra ZQ2, Brother RJ) and scales is plug-and-play via device pairing settings. If your WMS or label-print system uses proprietary Bluetooth APIs, test integration early in a pilot; standard Android Bluetooth APIs cover most use cases.
• Battery life degrades predictably in cold environments (below 0°C); typical runtime drops 20–30% in unheated loading docks in winter. Pre-stage spare batteries for night-shift or winter operations.

The Janam XT40 is the right choice for warehouse, cross-dock, and outdoor supply-chain operations where barcode, RFID, and location capture are the primary transaction drivers. It is not a smartphone replacement, nor is it optimized for voice calling or display-heavy workflows. If your operation is picking, receiving, asset tracking, or yard management with real-time WMS sync, the XT40's hardware reliability and battery life will outpay a fleet of consumer devices by a factor of 2–3x in total cost of ownership and operational uptime. Explore the full Janam catalog for additional rugged mobile platforms and accessories.
