Panduit LAM2A2/0-14-Q 2/0 AWG Compression Lug 25-Pack

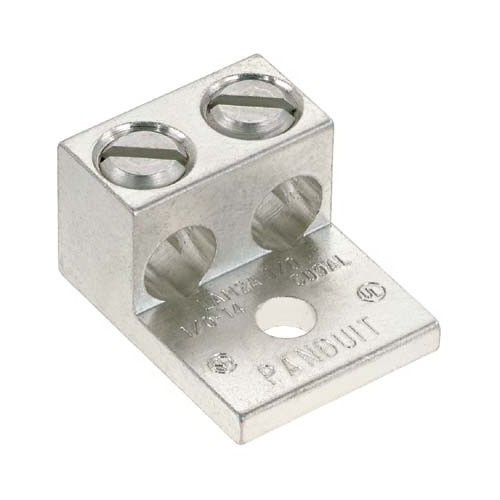

Panduit LAM2A2/0-14-Q Pan-Lug™ Mechanical Compression Lug

The Panduit LAM2A2/0-14-Q is a tin-plated mechanical compression lug engineered for terminating 2/0 AWG stranded aluminum or copper conductors to 1/4" (6.35mm) stud bus bars, breakers, and power distribution blocks. Designed for commercial power installations, UPS battery strings, and datacenter electrical infrastructure, this single-barrel lug delivers code-compliant terminations rated for 600V at 90°C continuous duty. The 25-piece packaging matches typical battery bank or branch circuit job quantities while maintaining cost efficiency for integrators running multi-rack or multi-floor builds.

Key Features

• 2/0 AWG stranded wire capacity for aluminum or copper conductors
• Tin-plated finish inhibits oxidation and galvanic corrosion in mixed-metal terminations
• Single 1/4" stud hole with 1.25" pad width for secure mechanical connection
• cULus listed for 600V systems at 90°C conductor temperature rating
• 0.8" barrel height and 1.47" overall length fit standard crimping dies
• 25-pack quantity sized for battery string runs and branch circuit installations
• Pan-Lug™ tooling compatibility with Panduit compression die sets

The LAM2A2/0-14-Q uses a mechanical compression barrel rather than a welded seam, providing a gas-tight connection that meets NEC 110.14 requirements for conductor termination. The tin-plated finish is critical when terminating aluminum conductors—bare aluminum lugs oxidize rapidly at the crimp interface, increasing resistance and creating heat rise under load. Tin plating maintains a stable contact surface and extends service life in environments with thermal cycling or vibration. The single-hole pad design simplifies alignment on crowded bus bars; the 1.25" width distributes clamping force across the lug body rather than concentrating stress at the barrel crimp. Installers should use a calibrated hydraulic or manual compression tool with W-series dies sized for 2/0 AWG—under-crimping leaves voids that promote oxidation, while over-crimping can cold-work the barrel past yield and fracture strands.

This lug appears most often in three scenarios: UPS battery string terminations where 2/0 conductors carry 100–200A DC loads across cab rows; electrical room sub-panel feeders landing on 200A–400A breaker lugs; and rooftop HVAC or solar combiner box runs where aluminum feeder conductors transition to copper bus. The 600V/90°C rating covers both 480V three-phase distribution and 120/208V branch circuits with continuous duty cycles. The 25-pack quantity aligns with typical battery string builds (12–24 terminations per string) or a small panel retrofit, eliminating the need to break open 500-piece cartons for single-job procurement. Installers working in seismic zones or high-vibration environments should torque the 1/4" mounting hardware to manufacturer spec—Panduit publishes torque tables in the Pan-Lug installation guide, typically 10–12 ft-lbs for 1/4" Grade 5 bolts on tin-plated pads.

The cULus listing under UL 486A-486B (wire connectors) and CSA C22.2 No. 65 confirms this lug meets North American standards for mechanical pressure connectors in building wiring applications up to 600V. The 90°C conductor rating allows use with THHN, THWN-2, RHH, RHW-2, and XHHW-2 insulation types without derating—critical for maximizing ampacity in conduit fills or cable tray runs. The tin plating provides a 0.0002"–0.0005" intermetallic layer that resists corrosion in damp locations (NEMA 3R/4X enclosures) and coastal or industrial atmospheres. For installations requiring anti-oxidant compound on aluminum conductors, apply Panduit HTAP or equivalent non-conductive oxide inhibitor to the stripped conductor before crimping; the compound displaces moisture and maintains contact resistance below 10 micro-ohms across the crimp interface. This lug is a mechanical termination solution for integrators who need field-proven hardware that installs predictably, meets inspection on the first pass, and holds compression under decades of load cycling.
