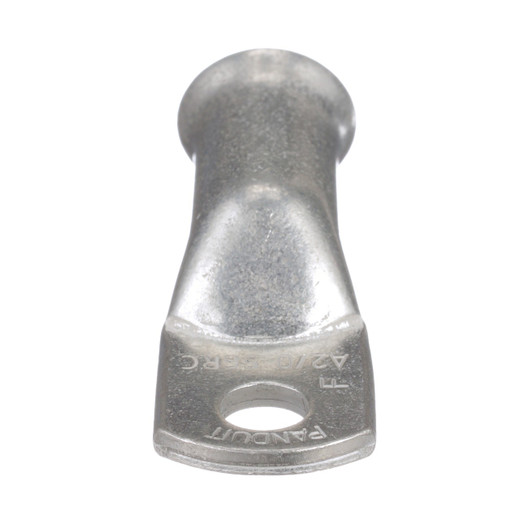

Panduit A4/0-12R-C Pan-Lug™ Battery Cable Compression Lug

The Panduit A4/0-12R-C is a heavy-duty compression lug engineered for permanent, code-compliant termination of 4/0 AWG battery cables and power conductors to 1/2" threaded studs. Designed for UPS installations, battery banks, DC power distribution, and telecom rectifier systems, this tin-plated copper lug delivers the pullout strength and long-term conductivity required in mission-critical 48 VDC and low-voltage AC applications. Sold in 100-piece packages, it's built for integrators running multi-cell battery strings, datacenter power upgrades, or industrial backup installations where a single failed termination can take down an entire rack.

Key Features

• 4/0 AWG wire capacity with 1/2" stud hole — fits commercial battery posts, bus bars, and grounding lugs
• Tin-plated high-conductivity copper construction resists corrosion in HVAC equipment rooms and outdoor battery enclosures
• Flared barrel entry guides stranded cable during insertion, reducing prep time and damage to conductor strands
• Embossed wire size marking on barrel ensures correct lug selection during multi-gauge installs
• cULus Listed to UL 486A-486B for power applications — meets NEC Article 110.14 termination requirements
• Meets US Military wire pull-out specifications for applications demanding mechanical reliability under vibration
• 100-piece bulk packaging reduces per-termination cost on large battery or solar combiner projects

Pan-Lug compression terminations use a hydraulic or mechanical crimping tool to cold-forge the barrel around the conductor, creating a gas-tight joint that won't loosen under thermal cycling. Unlike bolted lugs or set-screw connectors, compression joints eliminate the need for re-torquing and maintain consistent contact resistance over decades of service. The tin-plated finish prevents galvanic corrosion when the lug is bolted to steel or aluminum bus work, a common failure mode in mixed-metal battery installations. The 2.57" overall length provides clearance for stacking multiple cables on a shared terminal stud without interference, critical when landing multiple battery strings on a common DC distribution block. The flared entry reduces installation time — you don't need to perfectly round out the conductor before insertion — and the embossed wire size prevents mis-application when a job spec calls for mixed 2/0, 3/0, and 4/0 gauge runs.

4/0 AWG is the backbone of high-current 48 VDC systems: telecom central offices use it for –48 V battery feeds to rectifier shelves; datacenter operators spec it for UPS battery cabinet interconnects; solar integrators pull it for combiner-to-inverter runs. At 211,600 circular mils, 4/0 copper carries 230–260 amps continuous depending on insulation type and installation method, making it the go-to choice when a single cabinet houses 12–20 kWh of battery capacity. The 1/2" stud size matches standard battery terminal hardware from C&D, EnerSys, and Trojan, as well as Eaton and Schneider UPS output terminals and copper grounding bus bars. When you're landing eight parallel strings onto a common distribution block, the consistent barrel diameter and tongue thickness of factory-made compression lugs ensure uniform torque values and contact pressure — hand-made solder lugs or field-bent copper strap introduce variables that lead to hot spots and warranty disputes.

cULus listing to UL 486A-486B (connectors for use with aluminum or copper conductors rated 35°C through 90°C) ensures the termination meets the same standards as the breakers, disconnects, and bus bars it connects to. NEC 110.14 requires listed and labeled connectors for all field-installed terminations; using non-listed hardware is a code violation that will fail inspection and void equipment warranties. The military pull-out spec compliance is relevant beyond defense projects — it's a proxy for mechanical reliability under vibration, thermal shock, and long-term creep. Battery cabinets in mechanical rooms see HVAC vibration; outdoor solar combiners endure freeze-thaw cycles; mobile command trailers and vehicular UPS systems experience road shock. A lug that passes mil-spec pull testing won't work loose under those conditions, eliminating a failure mode that's invisible until the system goes to battery and a string drops offline due to a floating connection.
