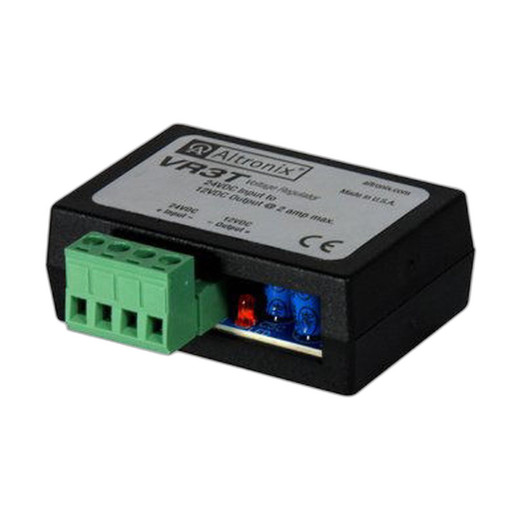

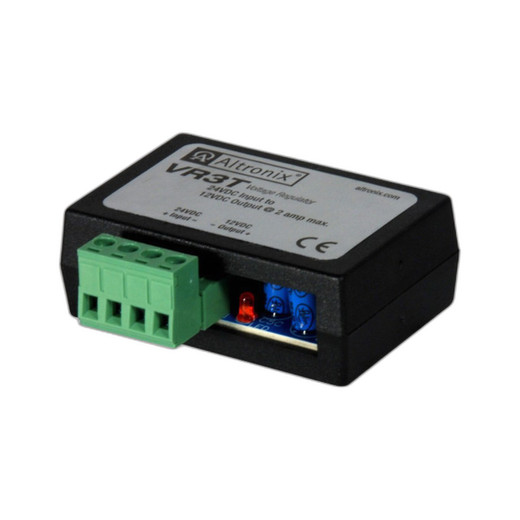

Altronix VR3T 24VDC to 12VDC Converter 2A
The Altronix VR3T is a compact DC-to-DC converter module that steps down 24VDC input to regulated 12VDC output at a maximum capacity of 2A. This voltage conversion capability solves a common integration problem in security infrastructure: mixing 24VDC power distribution with 12VDC peripheral equipment — cameras, lens controllers, auxiliary sensors, or legacy devices — without requiring separate power supplies or redundant wiring runs.
Key Features
- 24VDC to 12VDC conversion: Allows you to power 12VDC devices from a single 24VDC power source, reducing PSU count and simplifying cabinet layouts in mixed-voltage deployments.
- 2A maximum output current: Sufficient for a typical lens motor (1–1.5A draw) or multiple low-power auxiliary loads. Know your peripheral power budget before ordering — undersizing here causes voltage droop and device malfunction.
- Regulated output: Maintains stable 12VDC across the operating range, protecting downstream electronics from voltage fluctuations that can shorten camera or controller lifespan.
- Compact module form factor: Mounts directly into existing 24VDC distribution frames or cabinet rails. No external enclosure required, freeing precious rack or DIN space.
- Lifetime Limited Warranty: Manufacturer backs the VR3T for the life of the equipment — standard coverage for Altronix passive power modules.
- DC-to-DC isolation and protection: Internal components are sized for continuous duty in security environments, with inherent protection against transient spikes common on long camera cable runs.
Integration & Compatibility
The VR3T fits seamlessly into power infrastructure designs where you have a centralized 24VDC supply feeding multiple camera systems and accessory loads. Common scenarios include:
- Pan-tilt-zoom dome camera motor controllers rated for 12VDC on a 24VDC power backbone.
- Lens heater or focus motor modules (typically 12VDC) in systems already built around 24VDC.
- Retrofit of legacy 12VDC sensors or external switches into modern 24VDC plant without rewiring.
- Multi-purpose security equipment that accepts either voltage, but you prefer standardizing on 24VDC trunk distribution for efficiency and current handling.
Input is 24VDC; output is regulated 12VDC. The VR3T does not reverse — it will not convert 12VDC to 24VDC. Verify polarity and load requirements before connection. Wire gauge for the input and output leads should match your system's current capacity (24VDC input can handle higher-gauge wire due to lower current for the same power budget compared to 12VDC output).
When to Choose a Different Approach
If your peripheral load exceeds 2A sustained, the VR3T will thermally limit or shut down. In that case, consider a higher-capacity converter from the Altronix catalog or a separate dedicated 12VDC power supply for the heavier load. Similarly, if you require 5VDC or other voltages, this converter is not the tool — you would need a different module or multi-output supply.
Typical Deployment
Mount the VR3T in a central equipment cabinet near your 24VDC supply. Connect 24VDC input terminals to the source (using appropriate gauge wire for 2A), and run short 12VDC output leads to your peripheral devices. Keep output runs short to minimize voltage drop under load. This arrangement centralizes power distribution and reduces wiring complexity across a mixed-voltage system.
Frequently Asked Questions
Q: What is the maximum current output from the VR3T?
A: The VR3T is rated for 2A maximum output current at 12VDC. Verify that your peripheral devices draw no more than this in sustained operation, accounting for inrush current on startup.
Q: Can I use the VR3T to convert 12VDC to 24VDC?
A: No. The VR3T is a step-down converter only. Input must be 24VDC; output is fixed at 12VDC. Reversing the connection will not work and may damage the module.
Q: What warranty does the VR3T include?
A: The Altronix VR3T carries a Lifetime Limited Warranty covering defects in materials and workmanship under normal operating conditions.
Q: Is the VR3T suitable for outdoor or wet environments?
A: The VR3T is a compact module designed for indoor cabinet or enclosure mounting. If exposed outdoor installation is required, it must be enclosed in a weatherproof cabinet rated for your climate conditions (IP66 or higher recommended).
Q: How do I know if the VR3T will handle my peripheral load?
A: Calculate the total sustained 12VDC current draw of all devices you plan to power. If the total is below 2A, the VR3T will support it. If you approach 2A, monitor temperature during operation — if the module becomes warm to the touch under load, thermal headroom is marginal and a larger unit is recommended.
Q: Can I stack or daisy-chain multiple VR3T modules?
A: Not recommended. Each module is independent; stacking them in series does not increase output current or voltage. If you need more capacity, use a single larger-capacity converter rated for your total load.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Altronix VR3T solves a real wiring and power distribution headache in mixed-voltage security systems. When you have a solid 24VDC backbone but need to feed 12VDC peripherals — typically lens motors or legacy auxiliary devices — the VR3T eliminates the need for a second power supply and reduces cabinet clutter. That 2A capacity is the critical spec: it's enough for a single motor-driven lens or a handful of small sensors, but not enough for multiple simultaneous loads.
Technical Highlights:
- 2A output capacity at 12VDC: Typical pan-tilt motor draws 1–1.5A, so you have a small margin. Running dual motors or heavier auxiliary loads from a single VR3T will trigger thermal shutdown — plan accordingly and size your load profile before installation.
- Regulated 12VDC output: Voltage regulation ensures downstream electronics receive consistent power across the module's operating range, preventing the voltage sag that can cause lens focus drift or motor stalling on long cable runs.
- Compact module form: This is not a rack-mount PSU; it's a DIN-rail or cabinet-mount converter. It fits in tight spaces and integrates directly into existing 24VDC distribution frames without consuming significant real estate.
Deployment Considerations:
- Load calculation is mandatory. If you spec a 2A converter and your peripheral draws 2.2A sustained, the module will thermally limit within minutes. Verify your actual device power draw, not the nameplate maximum.
- Watch output cable gauge and run length. Even with regulation, a thin 12VDC output wire over a 50-foot run can drop voltage by 10–15% under 2A load. Use appropriate wire gauge (10 AWG minimum for 2A at short distances) and keep runs as short as feasible.
The VR3T is best positioned for single-peripheral or light auxiliary power scenarios in cabinet-centric deployments — a camera system with a motorized lens, or a thermal dome with pan-tilt and a heater, but not a multi-camera PTZ cluster on shared power. In warehouse automation and access control cabinets where 24VDC dominates and you need to integrate a handful of 12VDC encoders or card readers, the VR3T is a sensible, cost-effective fit.
