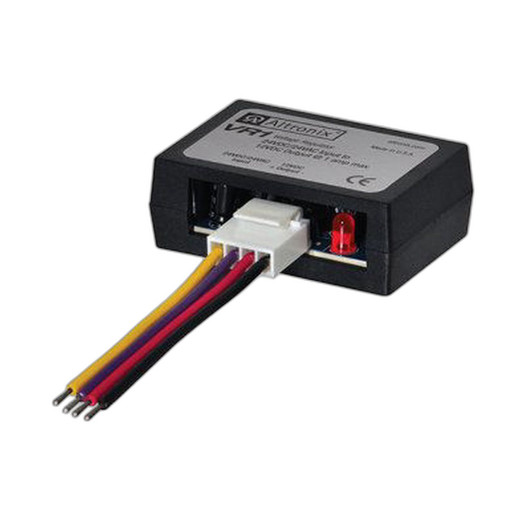

Altronix VR1 24VAC/VDC to 12VDC Conversion Module
The Altronix VR1 is a compact voltage conversion module designed to step down 24VAC or 24VDC input to regulated 12VDC output at a maximum of 1A. In mixed-voltage security installations — where some devices run on 24V infrastructure but auxiliary equipment needs 12V — the VR1 eliminates the need for multiple power supplies. The regulated output holds voltage stable across load variations, critical for sensitive access control readers, illuminators, and auxiliary sensors that demand clean DC power.
Key Features
- 24VAC and 24VDC input compatibility: Accepts either AC or DC input, so you don't need separate modules for different power sources in your distribution system. This flexibility matters when consolidating power in older installations or when AC and DC branches exist in parallel.
- Regulated 12VDC output at 1A maximum: A 1A capacity handles low-to-medium draw devices — door strikes, badge readers, status relays, and sensor modules. If your accessory load exceeds 1A, the VR1 is not the right fit; you'll need a higher-capacity supply in the same Altronix family.
- AC fail supervision: Built-in AC power monitoring detects utility voltage loss or brownout conditions. This supervisory signal can integrate with your access control system or security panel to trigger alarm states, log events, or activate failover procedures — essential in facilities where power anomalies must be recorded and acted upon.
- Integrated battery backup support: The VR1 can maintain 12VDC output via an external rechargeable battery (typically 12V SLA) during AC failure. This extends hold-up time for access control readers and life-safety devices beyond what an unregulated supply can provide, buying time for graceful shutdown or emergency response.
- Compact form factor: Sized to fit inside control panels and cabinet door mounts, the VR1 does not demand dedicated rack or wall space. In retrofit and space-constrained installations, this density reduces labor and material costs.
- Lifetime Limited Warranty: Covered under Altronix's lifetime limited warranty, typical for their infrastructure components. Verify coverage scope with your documentation; lifetime terms vary by failure mode and application.
Integration and Deployment Context
The VR1 fits into distributed 24V power architecture common in larger security systems. Your main power supply delivers 24VAC or 24VDC to a control panel or power distribution module; individual branches then connect devices running at that voltage. When a subsystem — such as a badge reader module or auxiliary relay board — requires 12VDC, the VR1 handles that step-down locally, eliminating a second bulky power supply and its associated wiring.
AC fail supervision is valuable in systems integrated with NVRs or access control panels that log power state changes. The supervisory contact closure or relay output integrates with your system's input module, creating an auditable record of supply disruptions. Battery backup turns the VR1 into a small UPS for critical readers — not full system backup, but enough to maintain reader operation through brief outages or to enable orderly shutdown.
When to Choose a Different Model
If your load exceeds 1A, or if you need 5VDC, 9VDC, or other voltages, consult the broader Altronix power supply and distribution family. The VR1 is purpose-built for light-duty 12V conversion in 24V-dominant environments; higher-capacity converters or multi-output supplies handle more demanding scenarios.
Frequently Asked Questions
Q: What's the maximum continuous load on the VR1?
A: The VR1 is rated for a maximum output current of 1A. Loads exceeding 1A may trigger thermal protection or cause voltage droop; confirm your accessory's current draw before installation.
Q: Can the VR1 power a battery backup system directly?
A: The VR1 includes support for integrated battery backup — it includes a charging circuit to maintain an external 12V rechargeable battery. However, battery selection, capacity, and charger configuration are separate; consult the datasheet for recommended battery specifications.
Q: What does AC fail supervision do?
A: AC fail supervision detects loss or degradation of input AC voltage and signals the event through a relay contact. Your control panel or access system can log this event, trigger an alarm, or activate a failover mode. This is valuable for unattended sites where power anomalies need to be recorded.
Q: Is the VR1 suitable for outdoor installations?
A: The VR1 is a panel-mount module designed for indoor cabinet or control enclosure use. For outdoor power conversion, select an environmentally rated power supply appropriate to your temperature and humidity range.
Q: Can I use the VR1 with both 24VAC and 24VDC in the same installation?
A: Yes. The VR1 accepts either 24VAC or 24VDC input. You can install multiple VR1 units in a single panel, each serving a different branch — some fed from AC, others from DC. Each converter operates independently.
Q: What's the warranty on the VR1?
A: The VR1 is covered by Altronix's Lifetime Limited Warranty. Refer to the manufacturer's warranty documentation for coverage scope and exclusions.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Altronix VR1 solves a real pain point in mixed-voltage installations: delivering clean, regulated 12VDC to auxiliary devices in a 24V-dominated power architecture without deploying a second full-size supply. The 1A capacity is intentional — it's purpose-built for light-duty loads, not a weakness. What makes the VR1 worth the integration effort is the AC fail supervision combined with battery backup support. Most cheap 24V-to-12V buck converters ignore AC fail detection and battery charging altogether, leaving you blind to power anomalies and unable to hold reader power during brief outages.
Technical Highlights:
- AC Fail Supervision Relay: Detects input voltage loss within milliseconds and signals your control panel via relay contact. On unattended sites or facilities with critical access control, this single feature often justifies the module's cost — you get auditable proof of every power event, not just a dark reader.
- Integrated Battery Charger: The VR1 does not just accept a backup battery; it charges and maintains it. During normal operation, the charger keeps your 12V SLA topped up. During AC failure, the battery supplies 12VDC, buying your access control system 30 minutes to several hours of hold-up time depending on battery capacity and load. Without this, your readers go dark the instant AC fails.
- Dual Input Flexibility: Accepting both 24VAC and 24VDC means you can standardize on a single module type across branches fed by different power sources. This reduces SKU management and spares inventory in larger installations.
Deployment Considerations:
- 1A is the hard ceiling: If your badge readers, relays, and sensors draw more than 1A combined, the VR1 will thermal-limit or fail to regulate. Size the load before ordering — a 2A load on a 1A supply creates field service calls and downtime.
- Battery spec and sizing are your responsibility: The VR1 supplies the charger circuit; you must select and install an appropriate 12V rechargeable SLA battery. Undersizing the battery means short hold-up; oversizing adds cost and space. Consult the datasheet for recommended amp-hour ratings.
- Panel thermal management: When mounted in a closed cabinet, the VR1's internal dissipation (especially under full 1A load) can accumulate. Verify enclosure ventilation; in warm environments, add panel fans if ambient temperature approaches the module's maximum rating.
The VR1 is the right choice for access control subsystems and auxiliary reader supplies in larger security panel architectures — especially where AC fail logging and battery-backed reader hold-up are contractual requirements. It's not a general-purpose 24V-to-12V converter; it's a power reliability tool embedded in the system. Deploy it where you need auditable power integrity and brief failover capability, not where you simply need to step down voltage for a non-critical 12V fan or LED.
