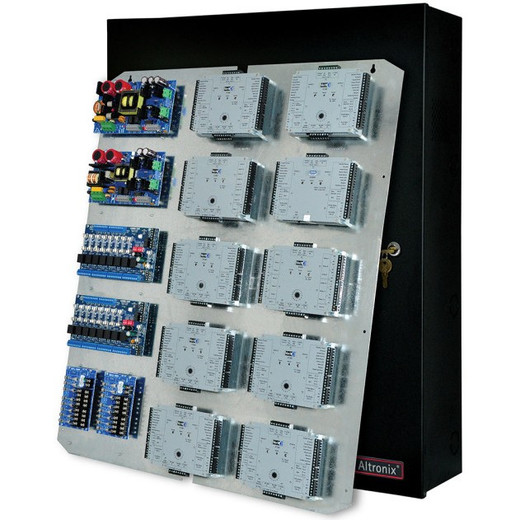

Altronix TROVE3V3 Access Control Integration Enclosure with Backplane

Overview

The Altronix TROVE3V3 is a purpose-built enclosure system designed to consolidate access control, power distribution, and integration components in a single, manageable platform. Built as part of the Trove3 series from Altronix and compatible with HID-Vertx ecosystems, the TROVE3V3 serves as a central hub for multi-subsystem access environments where reliable power management, signal distribution, and device integration are critical to system uptime and scalability.

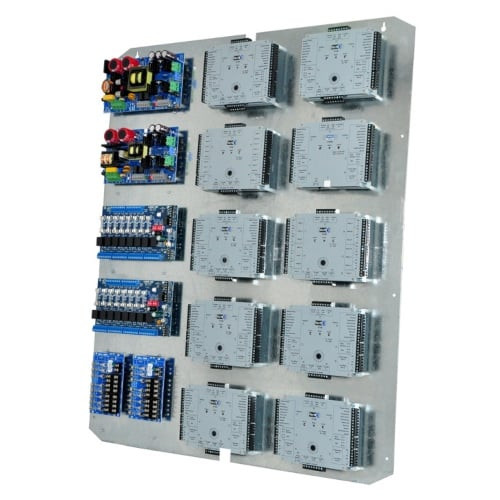

This enclosure integrates a backplane architecture, enabling parallel installation and connection of multiple control modules, power supplies, and interface cards without complex external wiring. The design accommodates standard 19-inch rack mounting or wall-mount configurations typical in medium to large-scale access deployments, from office buildings and data centers to hospitality and healthcare facilities.

Key Features

• Integrated Backplane Design: Enables modular insertion of control cards, power modules, and interface adapters, reducing installation labor and field wiring complexity.
• HID-Vertx Platform Compatibility: Native support for HID-Vertx access control hardware, ensuring seamless integration with existing or planned credential readers, controllers, and cloud management.
• Multi-Subsystem Power Consolidation: Centralized power distribution for door controllers, readers, locks, intercoms, and auxiliary devices from a single enclosure footprint.
• Scalable Module Architecture: Add or upgrade control and interface modules as system requirements grow without replacing the entire enclosure.
• Compact Industrial Form Factor: Engineered for both IT closet and on-wall deployment in tight spaces while maintaining sufficient internal volume for thermal management and cable routing.
• Pre-Assembled Backplane: Ships with integrated backplane harness, reducing on-site assembly time and minimizing connection errors during commissioning.

Integration and Compatibility

The TROVE3V3 is engineered as a central integration point for access control ecosystems. Its backplane design standardizes signal paths for multiple control modules, allowing integrators to combine credential readers, door strike controllers, request-to-exit sensors, and intercom gateways within the same enclosure. The Trove3 series architecture supports both 12V and 24V power domains, making it compatible with legacy 12VDC access control systems and modern 24VDC PoE-based deployments. Installation teams benefit from pre-routed backplane connections, which reduce field termination points and improve system reliability. The enclosure accommodates standard DIN rail mounting for power supplies and control modules, aligning with commercial electrical installation practices.

Intended Applications

The TROVE3V3 is ideal for integrators deploying multi-reader access control systems in office parks, university campuses, secure facilities, and mixed-use buildings. Its modular architecture scales from small 4-reader installations to large 16+ reader deployments without requiring external patch panels or distribution cabinets. System designers can place the TROVE3V3 in equipment rooms, electrical closets, or service corridors, with readers connected via standard twisted-pair cabling—reducing site complexity and improving security posture through cable management and environmental protection.

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Altronix TROVE3V3 during planning phases for several mid-market access control rollouts, and the backplane architecture simplifies what would otherwise be a complex integration. Instead of managing multiple discrete power supplies and wiring harnesses spread across a room, you get a single enclosure footprint with pre-routed signal paths and consolidated power. That matters when you're managing field labor costs and timeline risk on a large deployment.

Technical Highlights:

• Backplane Integration: Eliminates external panel wiring; modules connect directly to a pre-assembled harness inside the enclosure, reducing on-site termination work.
• Multi-Voltage Support: The Trove3 series handles both 12V and 24V control circuits, making it compatible with existing systems during migrations without requiring separate enclosures.
• HID-Vertx Native Design: Direct mechanical and electrical compatibility with HID-Vertx control modules and reader interfaces means no adapters or interface cards required.

Deployment Considerations:

• Plan enclosure placement near power distribution and cable entry points; the TROVE3V3 consolidates wiring significantly but still requires reliable AC mains access and structured cabling termination.
• Verify thermal load before densely populating the backplane; while the enclosure supports multiple modules, airflow management becomes important in high-power configurations.
• Test HID-Vertx module firmware compatibility during lab commissioning; the TROVE3V3 works as a physical platform, but control logic updates may require staging and testing before production cutover.

For integrators standardizing on Altronix and HID-Vertx hardware, the TROVE3V3 is a solid architectural foundation that scales from small sites to regional deployments without requiring redesign. Expect faster commissioning, fewer field service callbacks related to wiring, and easier future expansions.
